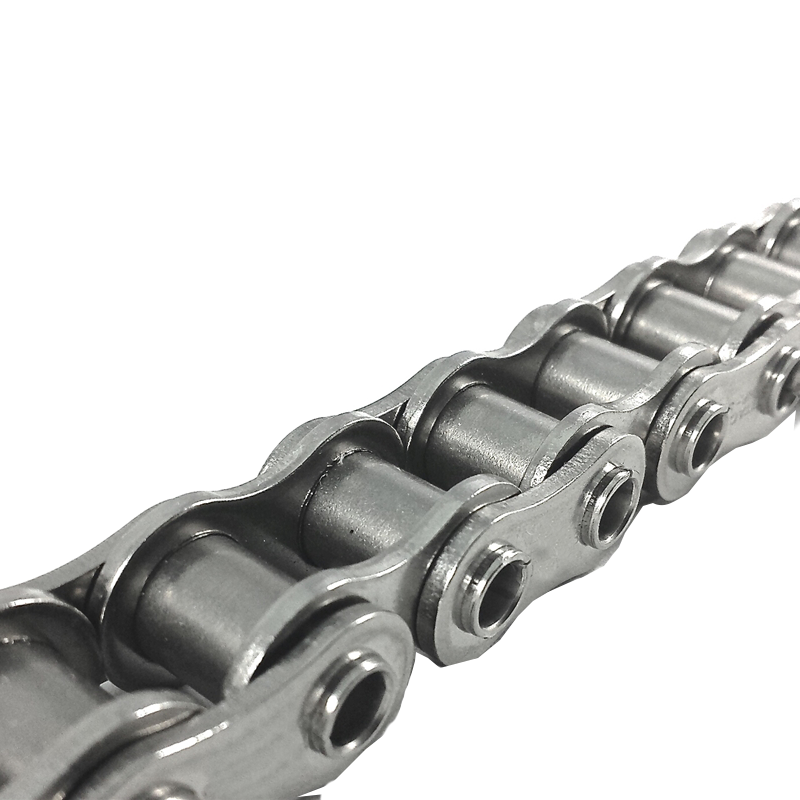

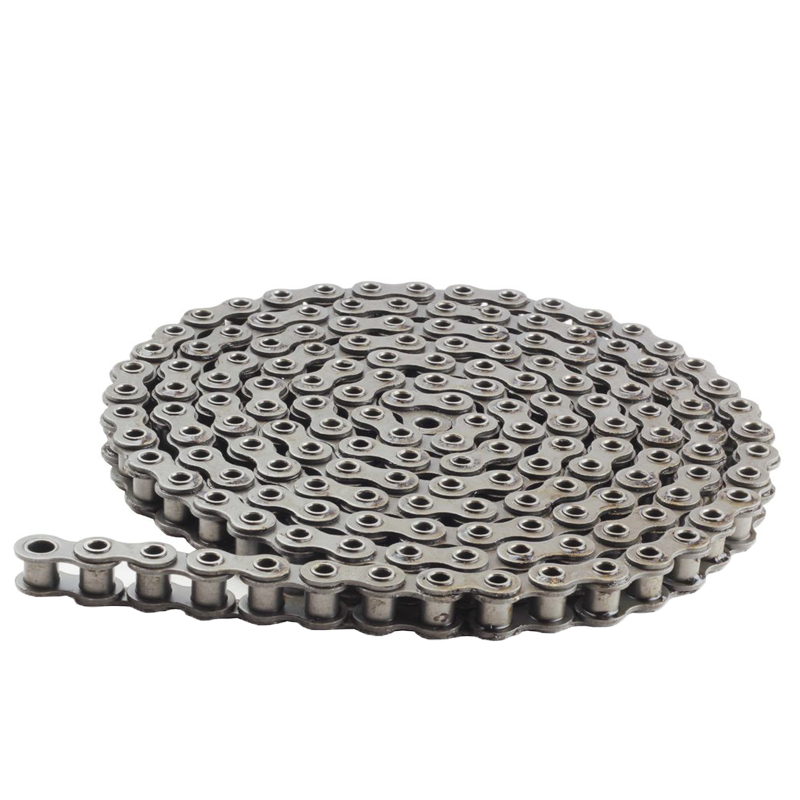

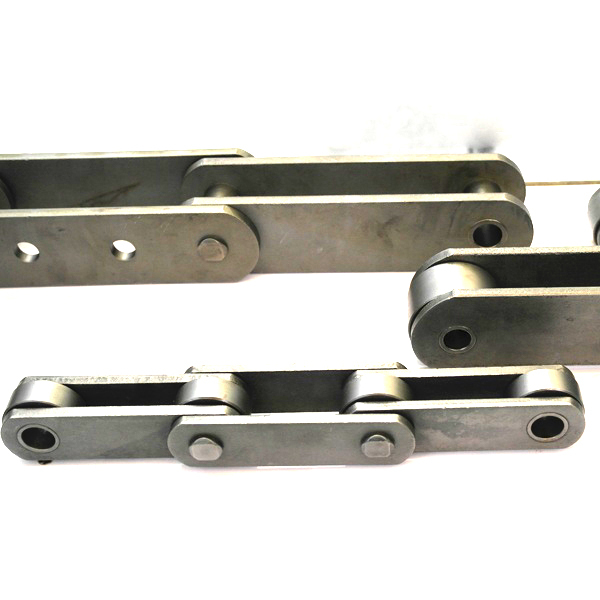

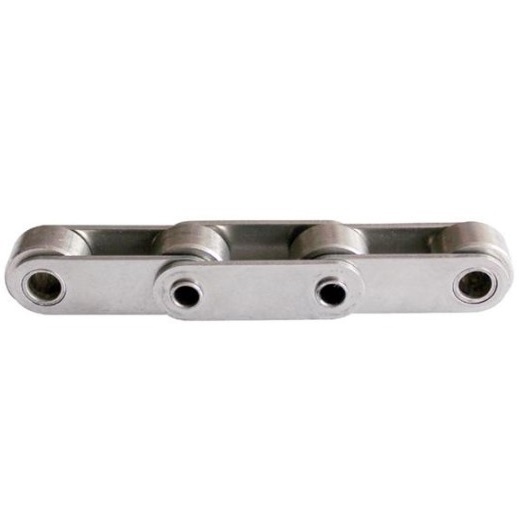

| Chain No. | Pitch | Bush diameter | Width between inner plates |
Pin dimensions | Plate thickness |
plates depth | Average tensile strength | |||
| p | d1 | b1 | d2 | d3 | L | Lc | T | h2 | Fua | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | |
| 40HP | 12.70 | 7.94 | 7.95 | 5.68 | 4.00 | 16.2 | 17.5 | 1.52 | 12.0 | 10.8 |
| 50HP | 15.875 | 10.16 | 9.53 | 7.24 | 5.12 | 20.6 | 22.0 | 2.03 | 15.0 | 19.6 |
| 60HP | 19.05 | 11.91 | 12.70 | 8.38 | 5.99 | 25.8 | 27.2 | 2.39 | 17.50 | 26.5 |
| 80HP | 25.40 | 15.88 | 15.88 | 11.38 | 8.02 | 32.6 | 34.1 | 3.18 | 23.00 | 48.0 |
| Chain No |
Type | Pitch | Bush or roller diameter |
Width between inner plates |
Pin dimensions | Plate thickness | plates depth | Average tensile strength | |||
| p | d1 | b1 | d2 | d3 | L | Lc | T | h2 | Fua | ||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | ||
| C2040HP | B | 25.40 | 7.94 | 7.95 | 5.68 | 4.00 | 16.2 | 17.5 | 1.52 | 11.70 | 10.8 |
| C2042HP | R | 15.88 | |||||||||
| C2050HP | B | 31.75 | 10.16 | 9.53 | 7.24 | 5.12 | 20.6 | 22.0 | 2.03 | 14.60 | 19.6 |
| C2052HP | R | 19.05 | |||||||||
| C2060HP | B | 38.10 | 11.91 | 12.70 | 8.37 | 5.99 | 25.8 | 27.2 | 2.39 | 17.50 | 26.5 |
| C2062HP | R | 22.23 | |||||||||
| C2080HP | B | 50.80 | 15.88 | 15.88 | 11.24 | 8.02 | 32.6 | 34.1 | 3.18 | 23.00 | 48.0 |
| C2082HP | R | 28.58 | |||||||||
