| Catalog No. |
Type | Material | Teeth | Pitch Dia |
Outer Dia |
Flange Dia |
Hub Dia |
Tooth width |
Total length |
Bore Dia |
Mass per pc |
||
| dp | de | Df | Dm | Di | F | L | d | n ° flange |
(q≈) | ||||
| mm | mm | mm | mm | mm | mm | mm | mm | ° | kg/pc | ||||

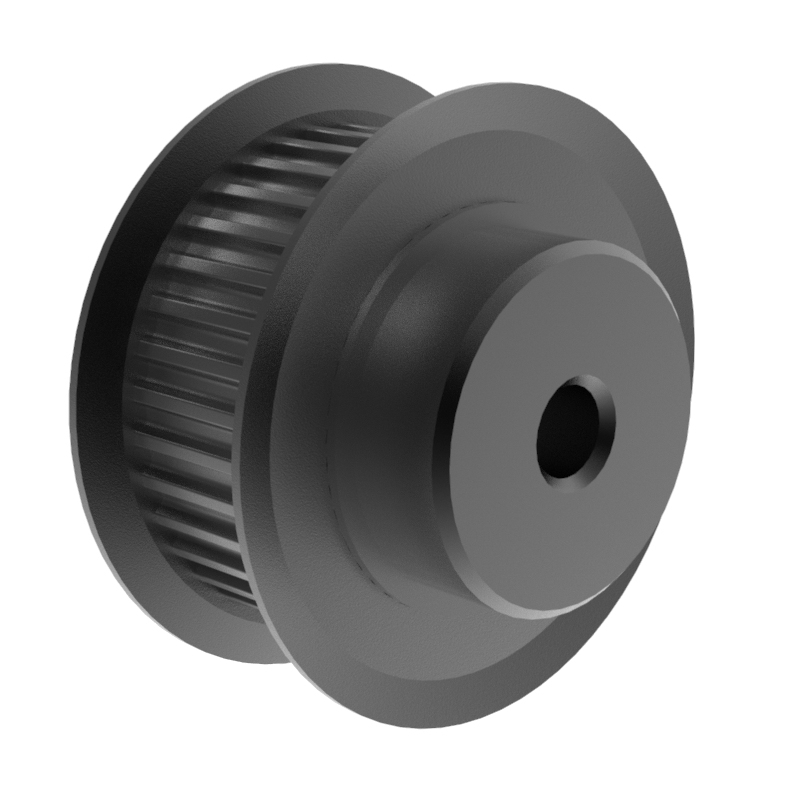

| 12 5M 15 | 2F | St | 12 | 19.10 | 17.96 | 23.0 | 12.5 | 20.5 | 26.0 | 6 | 202 | 0.03 | |
| 14 5M 15 | 2F | St | 14 | 22.28 | 21.14 | 25.0 | 13.5 | 20.5 | 26.0 | 6 | 203 | 0.04 | |
| 15 5M 15 | 2F | St | 15 | 23.87 | 22.73 | 28.0 | 16.0 | 20.5 | 26.0 | 6 | 204 | 0.05 | |
| 16 5M 15 | 2F | St | 16 | 25.46 | 24.32 | 28.0 | 16.5 | 20.5 | 26.0 | 6 | 204 | 0.06 | |
| 18 5M 15 | 2F | St | 18 | 28.65 | 27.51 | 32.0 | 20.0 | 20.5 | 26.0 | 6 | 205 | 0.09 | |
| 20 5M 15 | 2F | St | 20 | 31.83 | 30.69 | 36.0 | 23.0 | 20.5 | 26.0 | 6 | 206 | 0.12 | |
| 21 5M 15 | 2F | St | 21 | 33.42 | 32.28 | 38.0 | 24.0 | 20.5 | 26.0 | 6 | 207 | 0.14 | |
| 22 5M 15 | 2F | St | 22 | 35.01 | 33.87 | 38.0 | 25.5 | 20.5 | 26.0 | 6 | 207 | 0.15 | |
| 24 5M 15 | 2F | St | 24 | 38.20 | 37.06 | 42.0 | 27.0 | 20.5 | 28.0 | 6 | 208 | 0.19 | |
| 26 5M 15 | 2F | St | 26 | 41.38 | 40.24 | 44.0 | 30.0 | 20.5 | 28.0 | 6 | 209 | 0.23 | |
| 28 5M 15 | 2F | St | 28 | 44.56 | 43.42 | 48.0 | 30.5 | 20.5 | 28.0 | 6 | 210 | 0.26 | |
| 30 5M 15 | 2F | St | 30 | 47.75 | 46.60 | 51.0 | 35.0 | 20.5 | 28.0 | 6 | 211 | 0.32 | |
| 32 5M 15 | 2F | St | 32 | 50.93 | 49.79 | 54.0 | 38.0 | 20.5 | 28.0 | 8 | 212 | 0.35 | |
| 36 5M 15 | 2F | St | 36 | 57.30 | 56.16 | 60.0 | 38.0 | 20.5 | 28.0 | 8 | 214 | 0.43 | |
| 40 5M 15 | 2F | St | 40 | 63.66 | 62.52 | 71.0 | 38.0 | 20.5 | 28.0 | 8 | 217 | 0.52 | |

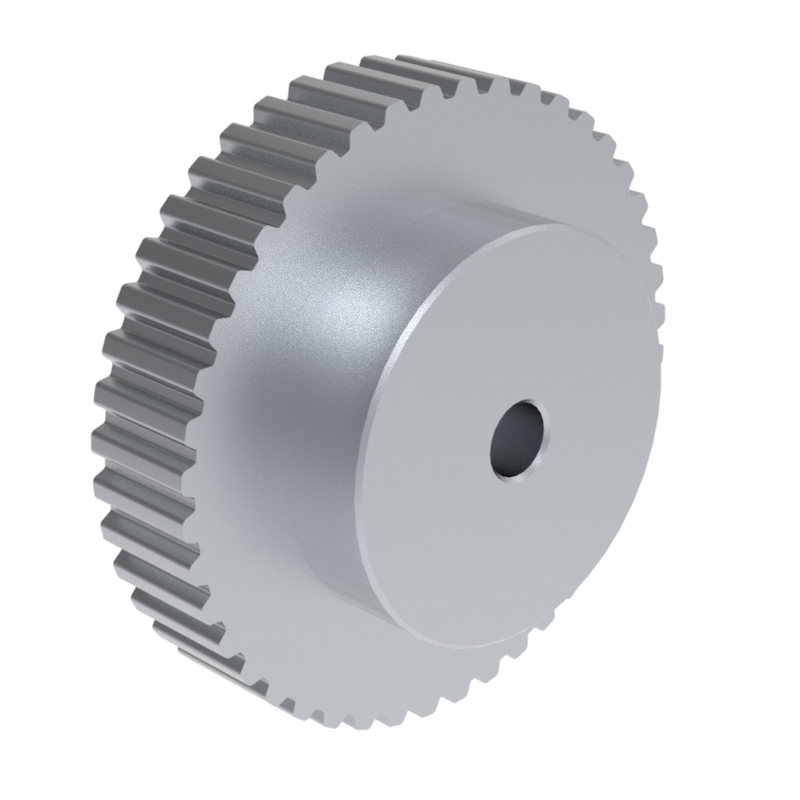

| 44 5M 15 | 2 | Al | 44 | 70.03 | 68.89 | 38.0 | 20.5 | 30.0 | 8 | 0.23 | |||
| 48 5M 15 | 2 | Al | 48 | 76.39 | 75.25 | 38.0 | 20.5 | 30.0 | 8 | 0.29 | |||
| 60 5M 15 | 2 | Al | 60 | 95.49 | 94.35 | 50.0 | 20.5 | 30.0 | 8 | 0.42 | |||
| 72 5M 15 | 2 | Al | 72 | 114.59 | 113.45 | 50.0 | 20.5 | 30.0 | 8 | 0.59 |
