| Catalog No. |

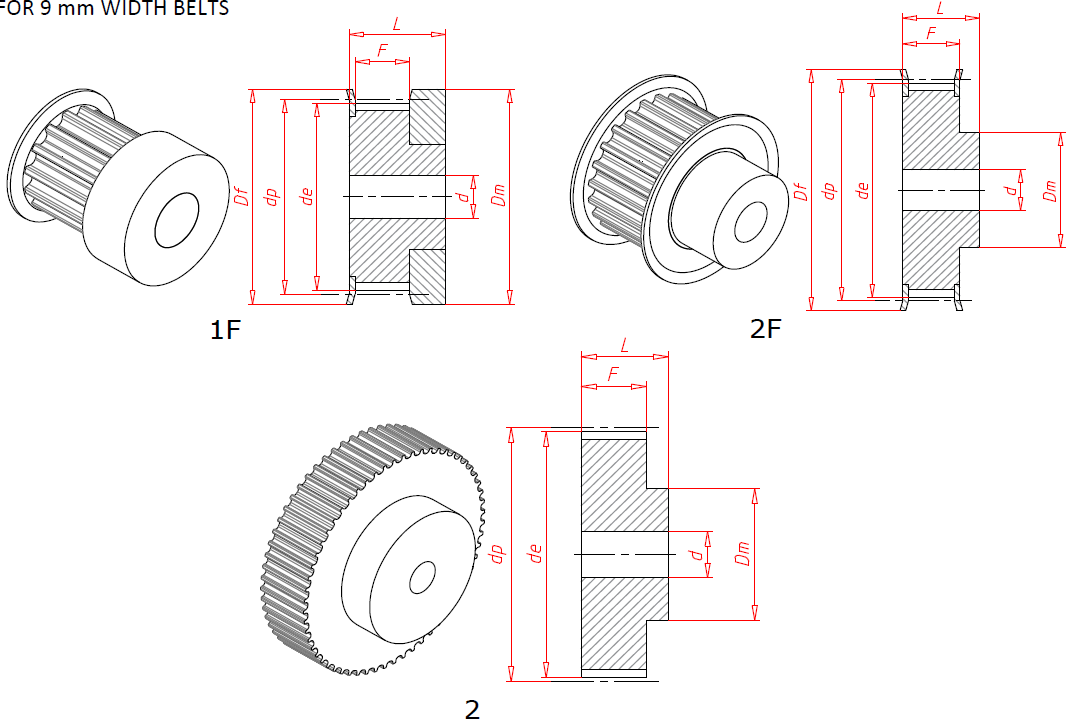

Type | Material | Teeth | Pitch Dia |
Outer Dia |
Flange Dia |
Hub Dia |
Tooth width |
Total length |
Bore Dia |
Mass per pc |
||
| dp | de | Df | Dm | Di | F | L | d | n ° flange |
(q≈) | ||||
| mm | mm | mm | mm | mm | mm | mm | mm | ° | kg/pc | ||||
| 10 3M 09 | 1F | Al | 10 | 9.55 | 8.79 | 13.0 | 12.0 | 10.2 | 17.5 | 100 | 0.01 | ||
| 12 3M 09 | 1F | Al | 12 | 11.46 | 10.70 | 15.0 | 15.0 | 10.2 | 17.5 | 101 | 0.01 | ||
| 14 3M 09 | 1F | Al | 14 | 13.37 | 12.61 | 16.0 | 16.0 | 10.2 | 17.5 | 102 | 0.01 | ||
| 15 3M 09 | 1F | Al | 15 | 14.32 | 13.56 | 18.0 | 17.5 | 10.2 | 17.5 | 104 | 0.01 | ||

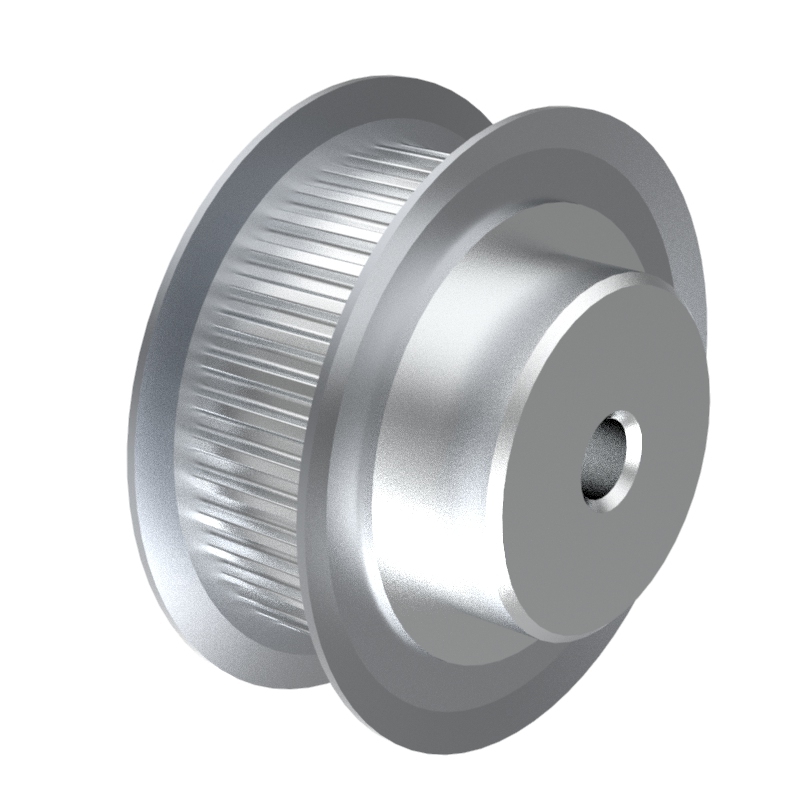

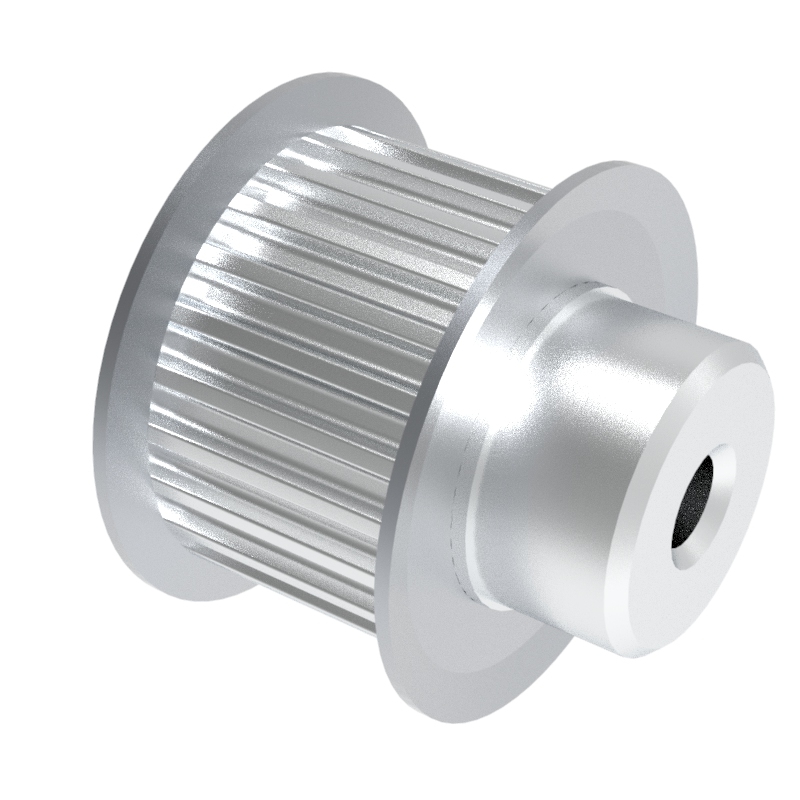

| 16 3M 09 | 2F | Al | 16 | 15.28 | 14.52 | 18.0 | 10.0 | 12.8 | 20.6 | 4 | 104 | 0.01 | |
| 18 3M 09 | 2F | Al | 18 | 17.19 | 16.43 | 19.5 | 11.0 | 12.8 | 20.6 | 6 | 105 | 0.01 | |
| 20 3M 09 | 2F | Al | 20 | 19.10 | 18.34 | 23.0 | 13.0 | 12.8 | 20.6 | 6 | 107 | 0.01 | |
| 21 3M 09 | 2F | Al | 21 | 20.05 | 19.29 | 25.0 | 14.0 | 12.8 | 20.6 | 6 | 108 | 0.01 | |
| 22 3M 09 | 2F | Al | 22 | 21.01 | 20.25 | 25.0 | 14.0 | 12.8 | 20.6 | 6 | 108 | 0.01 | |
| 24 3M 09 | 2F | Al | 24 | 22.92 | 22.16 | 25.0 | 14.0 | 12.8 | 20.6 | 6 | 108 | 0.02 | |
| 26 3M 09 | 2F | Al | 26 | 24.83 | 24.07 | 28.0 | 16.0 | 12.8 | 20.6 | 6 | 109 | 0.02 | |
| 28 3M 09 | 2F | Al | 28 | 26.74 | 25.98 | 32.0 | 18.0 | 12.8 | 20.6 | 6 | 110 | 0.02 | |
| 30 3M 09 | 2F | Al | 30 | 28.65 | 27.89 | 32.0 | 20.0 | 12.8 | 20.6 | 6 | 110 | 0.03 | |
| 32 3M 09 | 2F | Al | 32 | 30.56 | 29.80 | 36.0 | 22.0 | 12.8 | 20.6 | 6 | 111 | 0.03 | |
| 36 3M 09 | 2F | Al | 36 | 34.38 | 33.62 | 38.0 | 26.0 | 13.4 | 22.2 | 6 | 112 | 0.05 | |
| 40 3M 09 | 2F | Al | 40 | 38.20 | 37.44 | 42.0 | 28.0 | 13.4 | 22.2 | 6 | 113 | 0.06 | |
| 44 3M 09 | 2F | Al | 44 | 42.02 | 41.26 | 48.0 | 33.0 | 13.4 | 22.2 | 6 | 114 | 0.07 | |

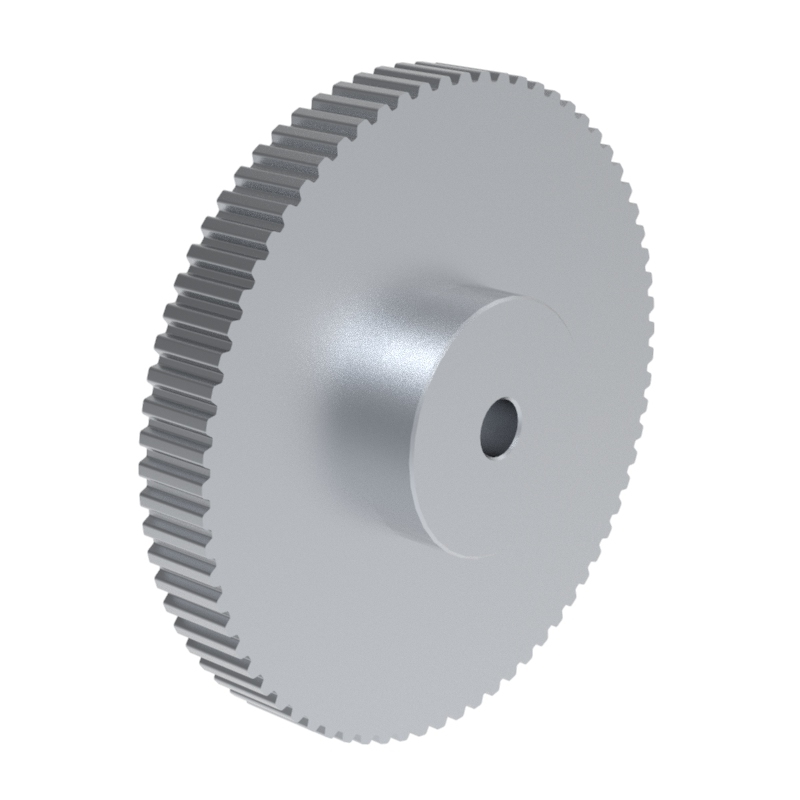

| 48 3M 09 | 2 | Al | 48 | 45.84 | 45.08 | 33.0 | 13.4 | 22.2 | 8 | 0.11 | |||
| 60 3M 09 | 2 | Al | 60 | 57.30 | 56.54 | 33.0 | 13.4 | 22.2 | 8 | 0.11 | |||
| 72 3M 09 | 2 | Al | 72 | 68.76 | 68.00 | 33.0 | 13.4 | 22.2 | 8 | 0.15 |
