| Catalog No. |
Type | Material | Teeth | Pitch Dia |
Outer Dia |
Flange Dia |
Hub Dia |
Tooth width |
Total length |
Bore Dia |
Mass per pc |
||
| dp | de | Df | Dm | Di | F | L | d | n ° flange |
(q≈) | ||||
| mm | mm | mm | mm | mm | mm | mm | mm | ° | kg/pc | ||||

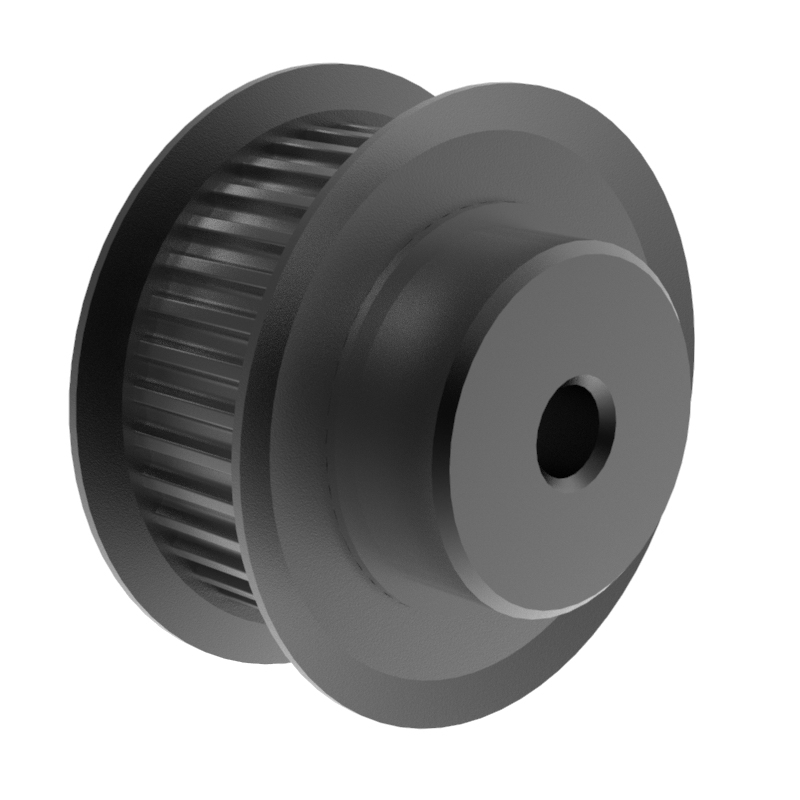

| 28 14M 85 | 2F | St | 28 | 124.78 | 122.12 | 127.0 | 100.0 | 102.0 | 117.0 | 24 | 400 | 8.77 | |
| 30 14M 85 | 2F | St | 30 | 133.69 | 130.99 | 138.0 | 100.0 | 102.0 | 117.0 | 24 | 401 | 10.13 | |
| 32 14M 85 | 2F | St | 32 | 142.60 | 139.88 | 154.0 | 100.0 | 102.0 | 117.0 | 24 | 403 | 11.65 | |
| 34 14M 85 | 2F | St | 34 | 151.52 | 148.79 | 160.0 | 100.0 | 102.0 | 117.0 | 24 | 404 | 13.15 | |
| 36 14M 85 | 2F | St | 36 | 160.43 | 157.68 | 168.0 | 100.0 | 102.0 | 117.0 | 32 | 405 | 14.48 | |
| 38 14M 85 | 2F | St | 38 | 169.34 | 166.60 | 183.0 | 120.0 | 102.0 | 117.0 | 32 | 406 | 16.62 | |
| 40 14M 85 | 2F | St | 40 | 178.25 | 175.49 | 188.0 | 135.0 | 102.0 | 117.0 | 32 | 407 | 18.84 | |
| 44 14M 85 | 2F | St | 44 | 196.08 | 193.28 | 211.0 | 135.0 | 102.0 | 117.0 | 32 | 411 | 22.86 | |
| 48 14M 85 | 2F | St | 48 | 213.90 | 211.11 | 226.0 | 150.0 | 102.0 | 117.0 | 32 | 412 | 27.00 | |

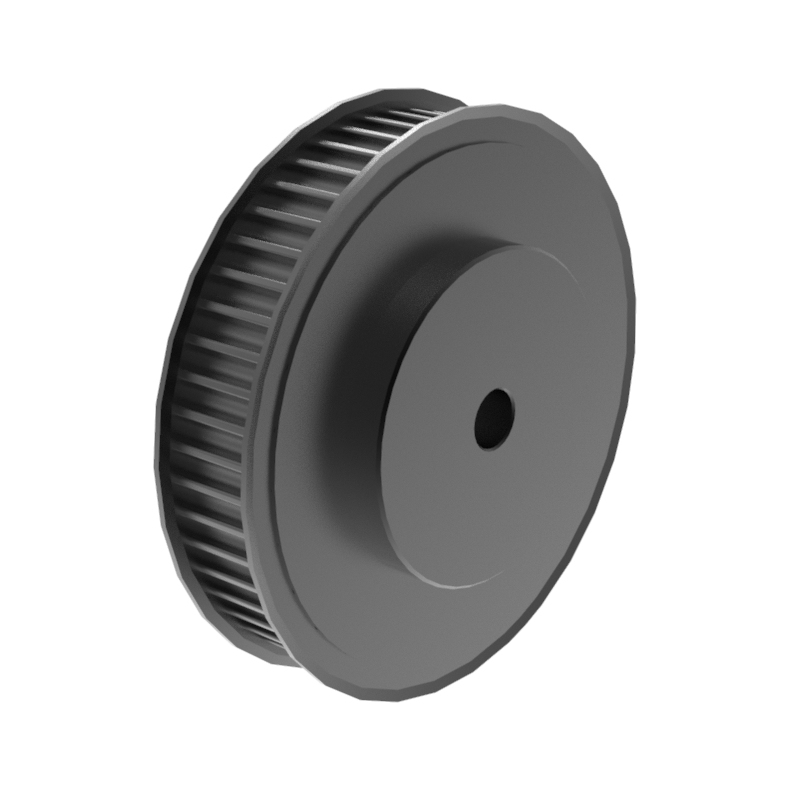

| 56 14M 85 | 7F | GG | 56 | 249.55 | 246.76 | 256.0 | 150.0 | 207 | 102.0 | 102.0 | 32 | 416 | 24.19 |
| 64 14M 85 | 7F | GG | 64 | 285.21 | 282.41 | 296.0 | 150.0 | 240 | 102.0 | 102.0 | 32 | 418 | 28.57 |

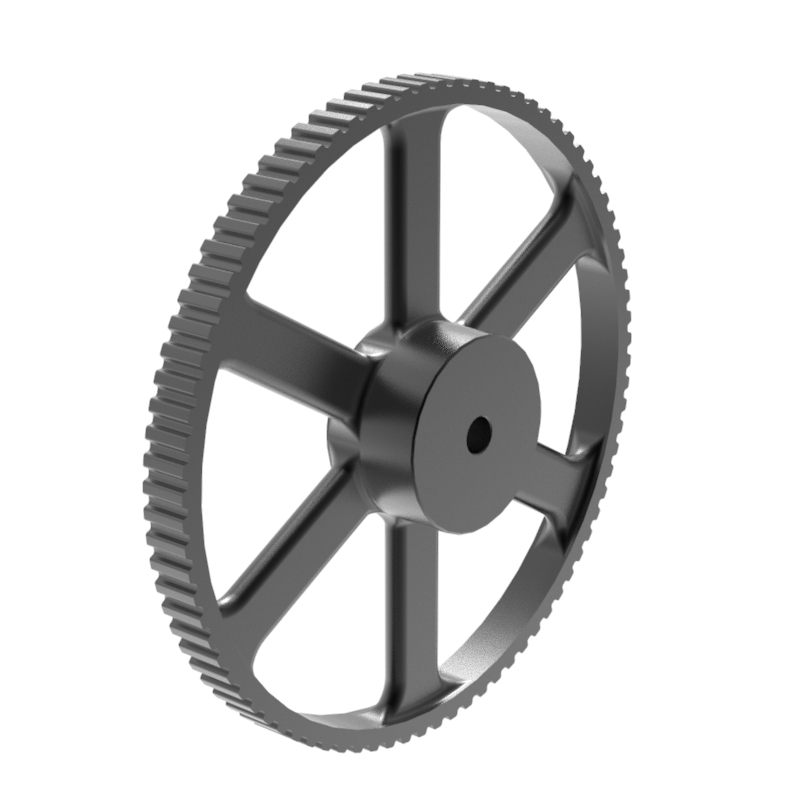

| 72 14M 85 | 8 | GG | 72 | 320.86 | 318.06 | 150.0 | 278 | 102.0 | 102.0 | 32 | 28.26 | ||
| 80 14M 85 | 8 | GG | 80 | 356.51 | 353.71 | 150.0 | 314 | 102.0 | 102.0 | 32 | 31.00 | ||
| 90 14M 85 | 8 | GG | 90 | 401.07 | 398.28 | 150.0 | 358 | 102.0 | 102.0 | 32 | 35.00 | ||
| 112 14M 85 | 8 | GG | 112 | 499.11 | 496.32 | 150.0 | 456 | 102.0 | 102.0 | 32 | 43.50 | ||
| 144 14M 85 | 8 | GG | 144 | 641.71 | 638.92 | 150.0 | 600 | 102.0 | 102.0 | 32 | 60.00 | ||
| 168 14M 85 | 8 | GG | 168 | 748.66 | 745.87 | 150.0 | 706 | 102.0 | 102.0 | 32 | 63.00 | ||
| 192 14M 85 | 8 | GG | 192 | 855.62 | 852.82 | 165.0 | 813 | 102.0 | 102.0 | 32 | 76.00 |
