| Catalog No. |
Type | Material | Teeth | Bush No. |
Bore max |
Pitch Dia |
Outer Dia |
Flange Dia |
Hub Dia |
Tooth width |
Total length |
Mass per pc |
|||

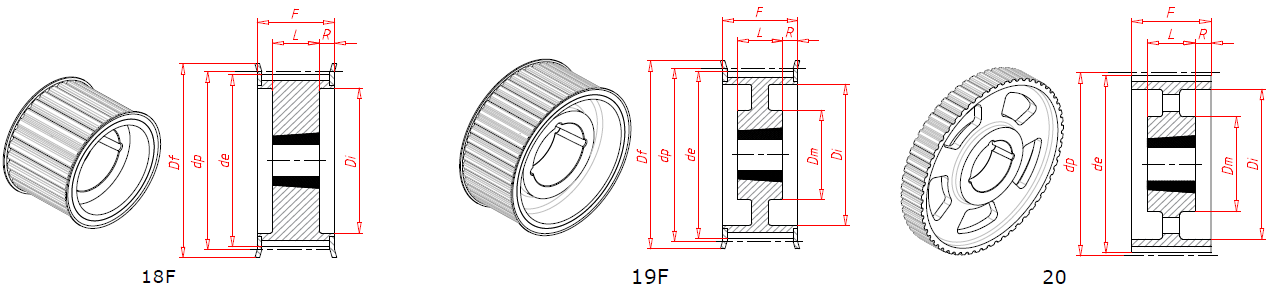

| dp | de | Df | Dm | Di | F | L | R | n ° flange |
(q≈) | ||||||
| mm | mm | mm | mm | mm | mm | mm | mm | ° | kg/pc | ||||||

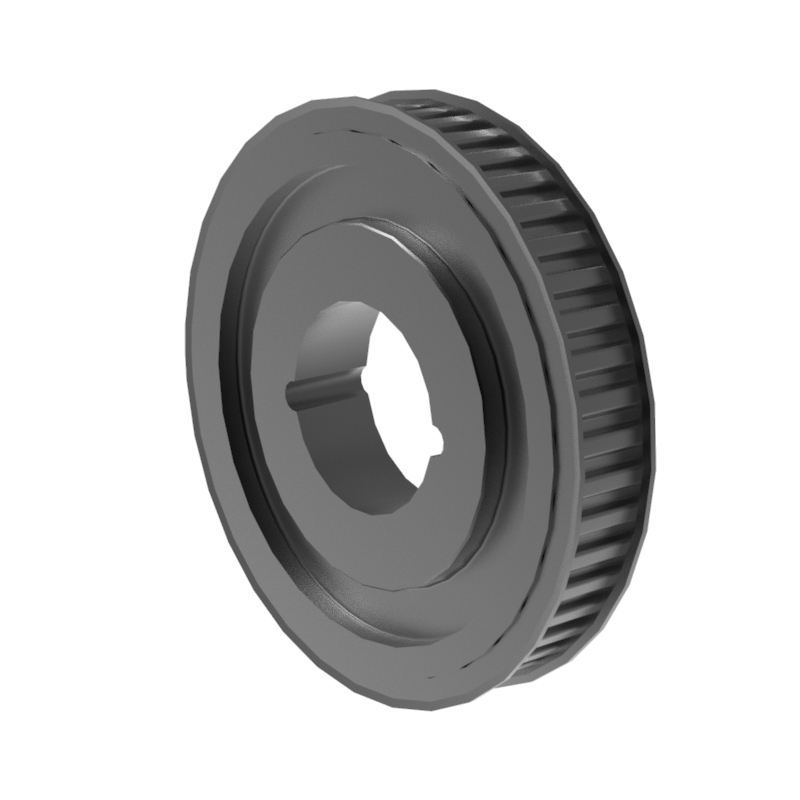

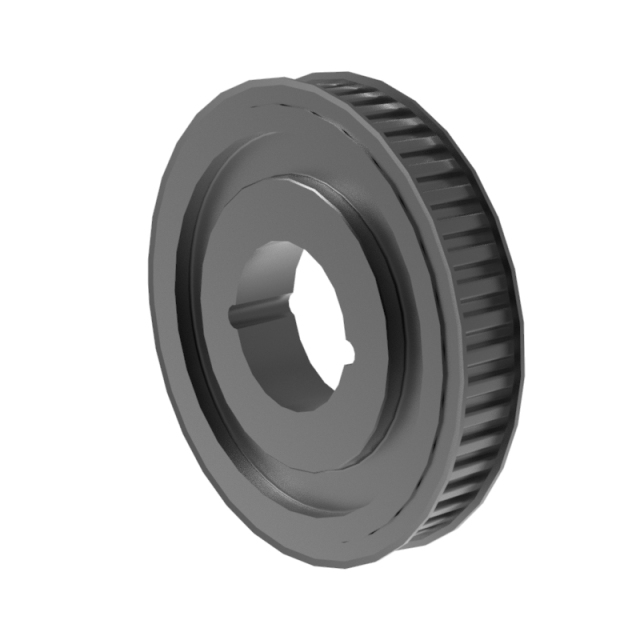

| TL 20 H 300 | 18F | St | 20 | 1615 | 42 | 80.85 | 79.48 | 87 | 645 | 84.0 | 38.0 | 23.0 | 315 | 1.22 | |
| TL 21 H 300 | 18F | St | 21 | 1615 | 42 | 84.89 | 83.52 | 91 | 65 | 84.0 | 38.0 | 23.0 | 316 | 1.52 | |
| TL 22 H 300 | 18F | St | 22 | 1615 | 42 | 88.94 | 87.56 | 93 | 67 | 84.0 | 38.0 | 23.0 | 317 | 1.80 | |
| TL 23 H 300 | 18F | St | 23 | 1615 | 42 | 92.98 | 91.61 | 97 | 70 | 84.0 | 38.0 | 23.0 | 318 | 2.04 | |
| TL 24 H 300 | 18F | St | 24 | 1615 | 42 | 97.02 | 95.65 | 103 | 735 | 84.0 | 38.0 | 23.0 | 320 | 2.29 | |
| TL 25 H 300 | 18F | St | 25 | 1615 | 42 | 101.06 | 99.69 | 106 | 77 | 84.0 | 38.0 | 23.0 | 321 | 2.54 | |
| TL 26 H 300 | 18F | St | 26 | 1615 | 42 | 105.11 | 103.73 | 111 | 82 | 84.0 | 38.0 | 23.0 | 322 | 2.73 | |
| TL 27 H 300 | 18F | St | 27 | 2012 | 50 | 109.15 | 107.78 | 115 | 85 | 84.0 | 32.0 | 26.0 | 323 | 2.54 | |
| TL 28 H 300 | 18F | St | 28 | 2012 | 50 | 113.19 | 111.82 | 119 | 905 | 84.0 | 32.0 | 26.0 | 325 | 2.68 | |
| TL 30 H 300 | 18F | St | 30 | 2012 | 50 | 121.28 | 119.90 | 127 | 98 | 84.0 | 32.0 | 26.0 | 327 | 3.21 | |
| TL 32 H 300 | 18F | St | 32 | 2517 | 60 | 129.36 | 127.99 | 135 | 106 | 84.0 | 45.0 | 19.5 | 328 | 3.58 | |
| TL 36 H 300 | 18F | St | 36 | 2517 | 60 | 145.53 | 144.16 | 152 | 121 | 84.0 | 45.0 | 19.5 | 334 | 4.99 | |
| TL 40 H 300 | 18F | St | 40 | 2517 | 60 | 161.70 | 160.33 | 168 | 138 | 84.0 | 45.0 | 19.5 | 338 | 6.50 | |
| TL 44 H 300 | 19F | St | 44 | 2517 | 60 | 177.87 | 176.50 | 184 | 119 | 152 | 86.0 | 45.0 | 20.5 | 339 | 7.55 |
| TL 48 H 300 | 19F | St | 48 | 2517 | 60 | 194.04 | 192.67 | 200 | 119 | 169 | 86.0 | 45.0 | 20.5 | 342 | 8.66 |

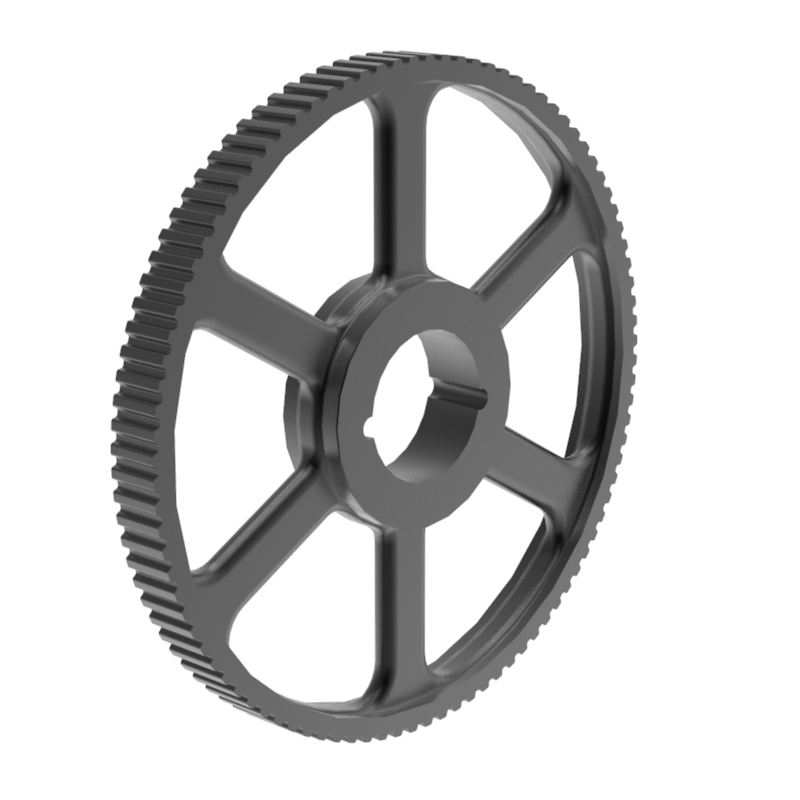

| TL 60 H 300 | 20 | GG | 60 | 2517 | 60 | 242.55 | 241.18 | 119 | 223 | 86.0 | 45.0 | 20.5 | 7.42 | ||
| TL 72 H 300 | 20 | GG | 72 | 2517 | 60 | 291.06 | 289.69 | 119 | 270 | 86.0 | 45.0 | 20.5 | 9.33 | ||
| TL 84 H 300 | 20 | GG | 84 | 2517 | 60 | 339.57 | 338.20 | 119 | 320 | 86.0 | 45.0 | 20.5 | 11.19 | ||
| TL 96 H 300 | 20 | GG | 96 | 3030 | 75 | 388.08 | 386.71 | 150 | 362 | 86.0 | 76.0 | 5.0 | 17.96 | ||
| TL 120 H 300 | 20 | GG | 120 | 3030 | 75 | 485.10 | 483.73 | 150 | 460 | 86.0 | 76.0 | 5.0 | 22.23 |
