H300

Description

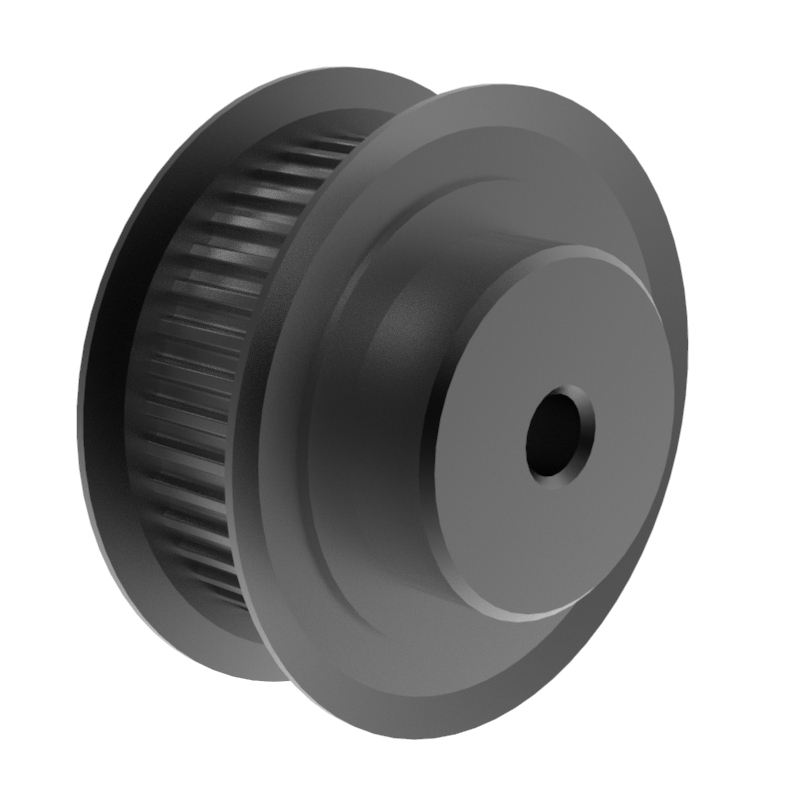

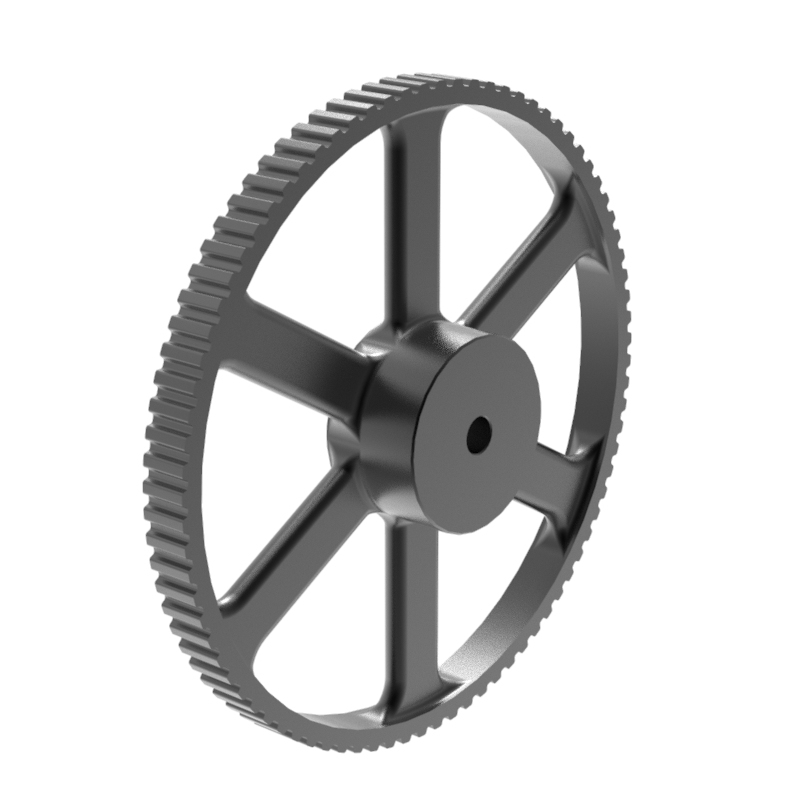

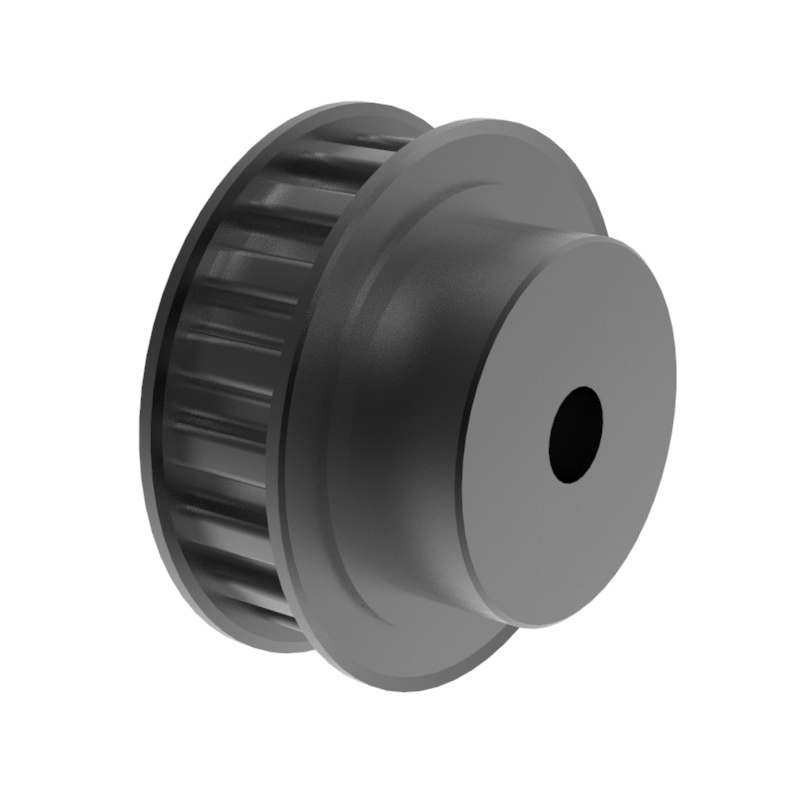

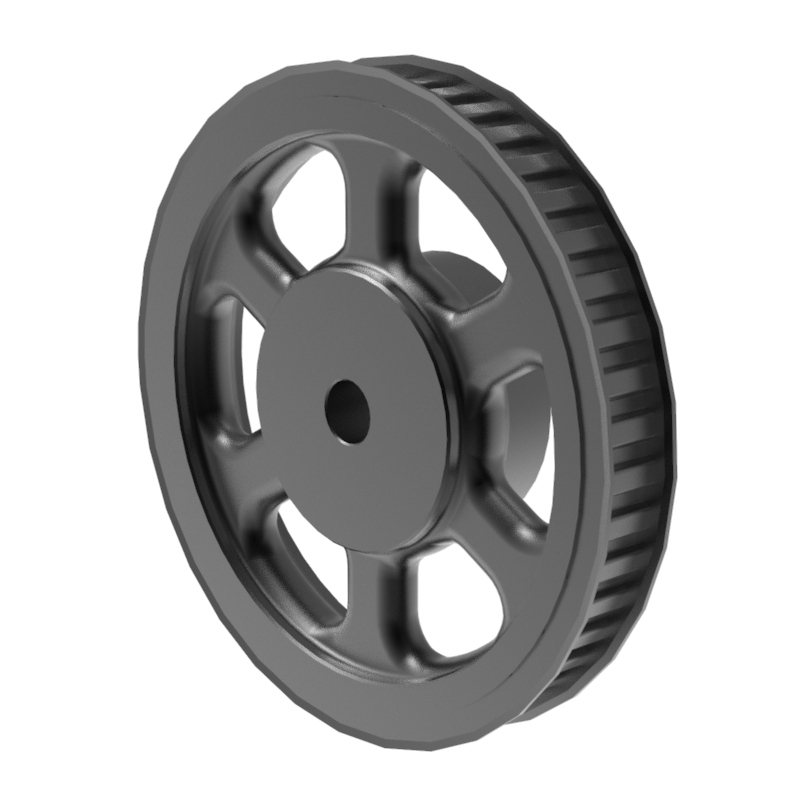

Timing Pulley |MXL/XL/L/H/XH|pilot bore
H 300
Pitch: 1/2” (12,7 mm)
FOR 3” (76,2 mm) WIDTH BELTS

Catalog No.	Type	Material	Teeth	Pitch Dia	Outer Dia	Flange Dia	Hub Dia	Tooth width	Total length	Bore Dia	n ° flange	Mass per pc

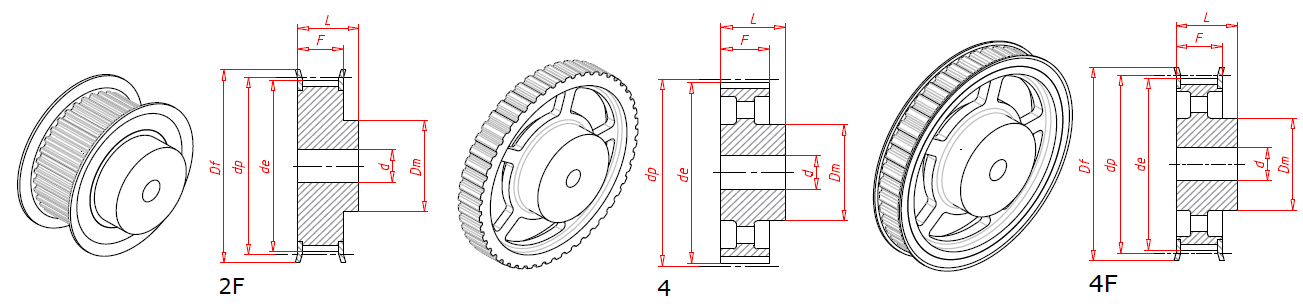

				dp	de	Df	Dm	F	L	d	n ° flange	(q≈)
				mm	mm	mm	mm	mm	mm	mm	°	kg/pc
14 H 300	2F	St	14	56.59	55.22	63	40	85.7	100	18	309	1.64
15 H 300	2F	St	15	60.64	59.27	66	45	85.7	100	18	310	1.91
16 H 300	2F	St	16	64.68	63.31	71	45	85.7	100	18	311	2.16
17 H 300	2F	St	17	68.72	67.35	75	45	85.7	100	18	312	2.43
18 H 300	2F	St	18	72.77	71.39	79	55	85.7	100	18	313	2.80
19 H 300	2F	St	19	76.81	75.44	83	60	85.7	100	18	314	3.16
20 H 300	2F	St	20	80.85	79.48	87	62	85.7	100	18	315	3.50
21 H 300	2F	St	21	84.89	83.52	91	65	85.7	100	18	316	3.87
22 H 300	2F	St	22	88.94	87.56	93	68	85.7	100	18	317	4.26
23 H 300	2F	St	23	92.98	91.61	97	72	85.7	100	18	318	4.68
24 H 300	2F	St	24	97.03	95.65	103	72	85.7	100	18	320	5.08
25 H 300	2F	St	25	101.06	99.69	106	72	85.7	100	18	321	5.45
26 H 300	2F	St	26	105.11	103.73	111	80	85.7	100	18	322	6.01
27 H 300	2F	St	27	109.15	107.78	115	80	85.7	100	18	323	6.45
28 H 300	2F	St	28	113.19	111.82	119	80	85.7	100	18	325	6.91
30 H 300	2F	St	30	121.29	119.90	127	80	85.7	100	18	327	7.90
32 H 300	2F	St	32	129.36	127.99	135	80	85.7	100	18	328	8.92
33 H 300	2F	St	33	133.40	132.03	140	80	85.7	100	18	330	9.46
34 H 300	2F	St	34	137.45	136.07	143	80	85.7	100	18	331	10.04
35 H 300	2F	St	35	141.49	140.12	148	80	85.7	100	18	333	10.62
36 H 300	2F	St	36	145.53	144.16	152	80	85.7	100	18	334	11.24
38 H 300	2F	St	38	153.62	152.24	158	80	85.7	100	18	335	12.44
40 H 300	2F	St	40	161.70	160.33	168	80	85.7	100	18	338	13.80
44 H 300	4F	GG	44	177.87	176.50	184	80	85.7	100	24	339	7.22
48 H 300	4F	GG	48	194.04	192.67	200	90	85.7	100	24	342	8.60
50 H 300	4	GG	50	202.13	200.75		90	85.7	100	24		8.99
58 H 300	4	GG	58	234.47	233.09		90	85.7	100	24		10.04
60 H 300	4	GG	60	242.55	241.18		100	85.7	100	24		11.18
72 H 300	4	GG	72	291.06	289.69		120	85.7	100	28		15.07
84 H 300	4	GG	84	339.57	338.20		120	85.7	100	28		16.97
96 H 300	4	GG	96	388.08	386.71		120	85.7	100	28		19.86
120 H 300	4	GG	120	485.10	483.73		120	85.7	100	28		25.91
