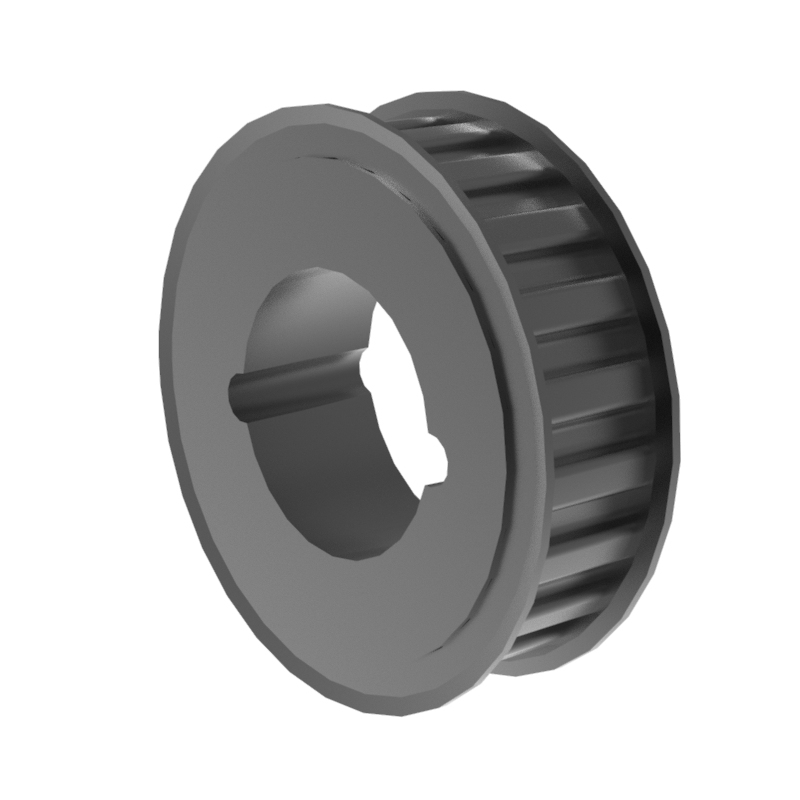

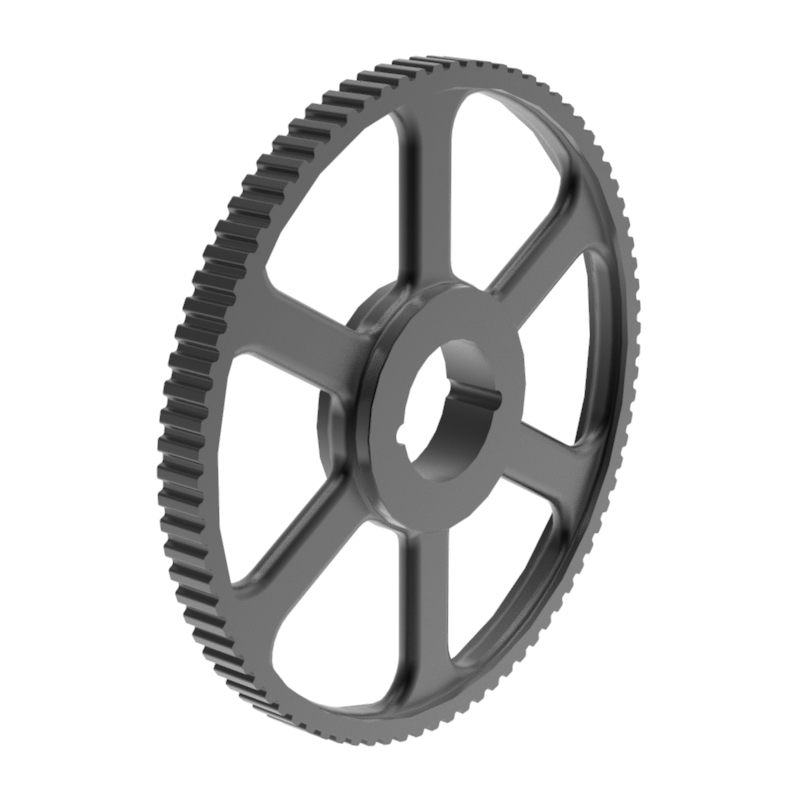

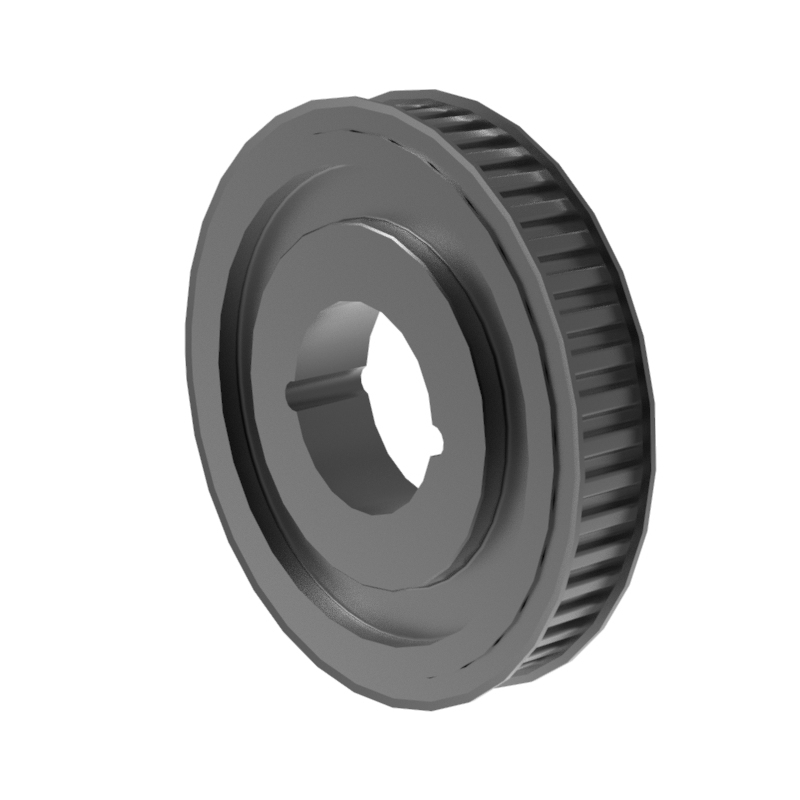

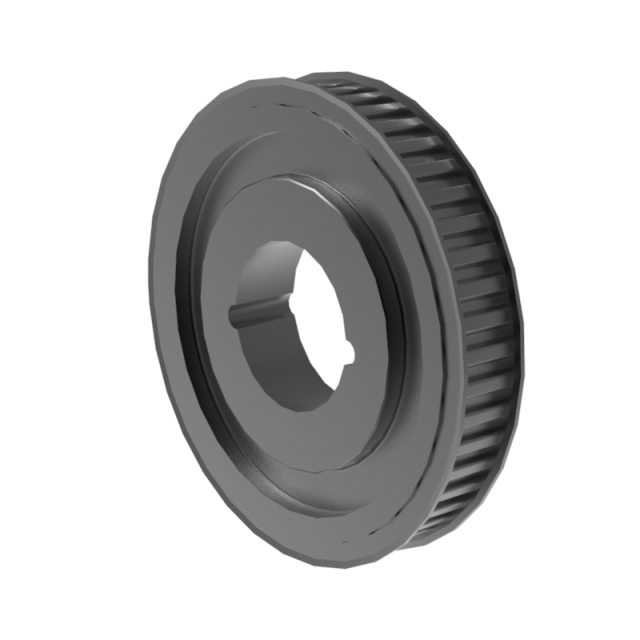

Timing Pulley |L/H|Taper Bore
H 200
Pitch: 1/2” (12,7 mm)
FOR 2” (50,8 mm) WIDTH BELTS

Catalog No.	Type	Material	Teeth	Bush No.	Bore max	Pitch Dia	Outer Dia	Flange Dia	Hub Dia		Tooth width	Total length			Mass per pc

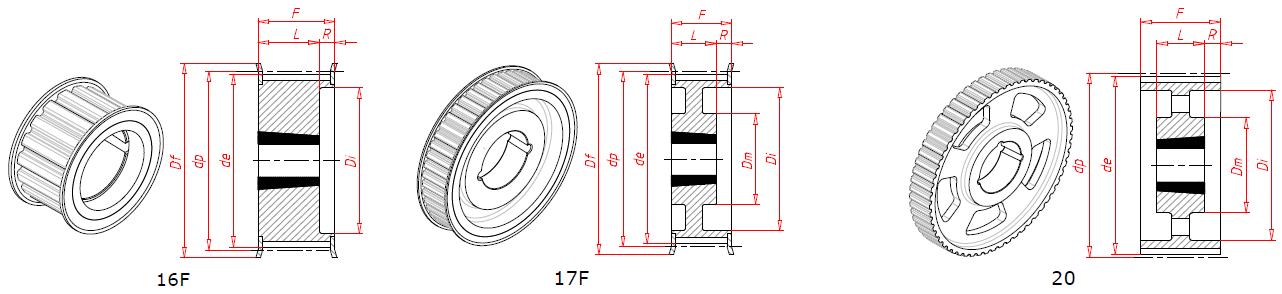

						dp	de	Df	Dm	Di	F	L	R	n ° flange	(q≈)
						mm	mm	mm	mm	mm	mm	mm	mm	°	kg/pc
TL 18 H 200	16F	St	18	1210	32	72.77	71.39	79		52	58.0	25.0	33.0	313	0.84
TL 19 H 200	16F	St	19	1210	32	76.81	75.44	83		56	58.0	25.0	33.0	314	0.96
TL 20 H 200	16F	St	20	1610	42	80.85	79.48	87		60	58.0	25.0	33.0	315	0.93
TL 21 H 200	16F	St	21	1610	42	84.89	83.52	91		64	58.0	25.0	33.0	316	1.07
TL 22 H 200	16F	St	22	1610	42	88.94	87.56	93		67	58.0	25.0	33.0	317	1.25
TL 23 H 200	16F	St	23	1610	42	92.98	91.61	97		70	58.0	25.0	33.0	318	1.40
TL 24 H 200	16F	St	24	1610	42	97.02	95.65	103		735	58.0	25.0	33.0	320	1.55
TL 25 H 200	16F	St	25	1610	42	101.06	99.69	106		77	58.0	25.0	33.0	321	1.71
TL 26 H 200	16F	St	26	1610	42	105.11	103.73	111		82	58.0	25.0	33.0	322	1.84
TL 27 H 200	16F	St	27	1610	42	109.15	107.78	115		85	58.0	25.0	33.0	323	2.06
TL 28 H 200	16F	St	28	1610	42	113.19	111.82	119		905	58.0	25.0	33.0	325	2.17
TL 30 H 200	16F	St	30	1610	42	121.28	119.90	127		98	58.0	25.0	33.0	327	2.60
TL 32 H 200	16F	St	32	2012	50	129.36	127.99	135		106	58.0	32.0	26.0	328	2.95
TL 36 H 200	17F	St	36	2012	50	145.53	144.16	152	102	121	58.0	32.0	26.0	334	3.62
TL 40 H 200	17F	St	40	2012	50	161.70	160.33	168	106	138	58.0	32.0	26.0	338	4.33
TL 44 H 200	17F	St	44	2012	50	177.87	176.50	184	106	152	58.0	32.0	26.0	339	5.33
TL 48 H 200	17F	St	48	2517	60	194.04	192.67	200	119	169	58.0	45.0	13.0	342	6.47
TL 60 H 200	20	GG	60	2517	60	242.55	241.18		119	223	60.0	45.0	7.5		5.86
TL 72 H 200	20	GG	72	2517	60	291.06	289.69		119	270	60.0	45.0	7.5		7.42
TL 84 H 200	20	GG	84	2517	60	339.57	338.20		119	320	60.0	45.0	7.5		8.73
TL 96 H 200	20	GG	96	2517	60	388.08	386.71		119	366	60.0	45.0	7.5		10.83
TL 120 H 200	20	GG	120	2517	60	485.10	483.73		119	462	60.0	45.0	7.5		14.95
