H200

Description

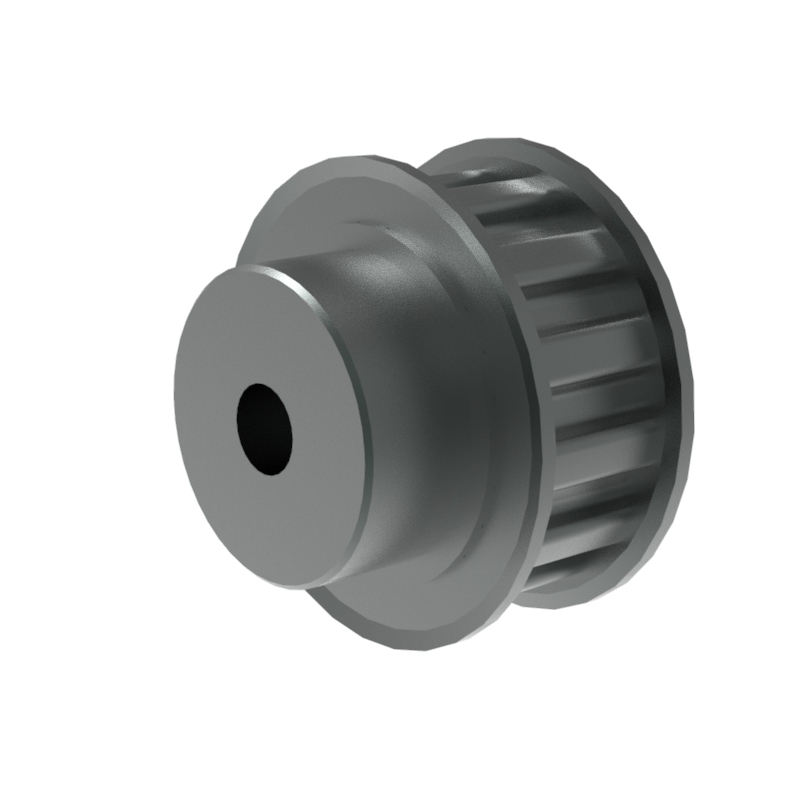

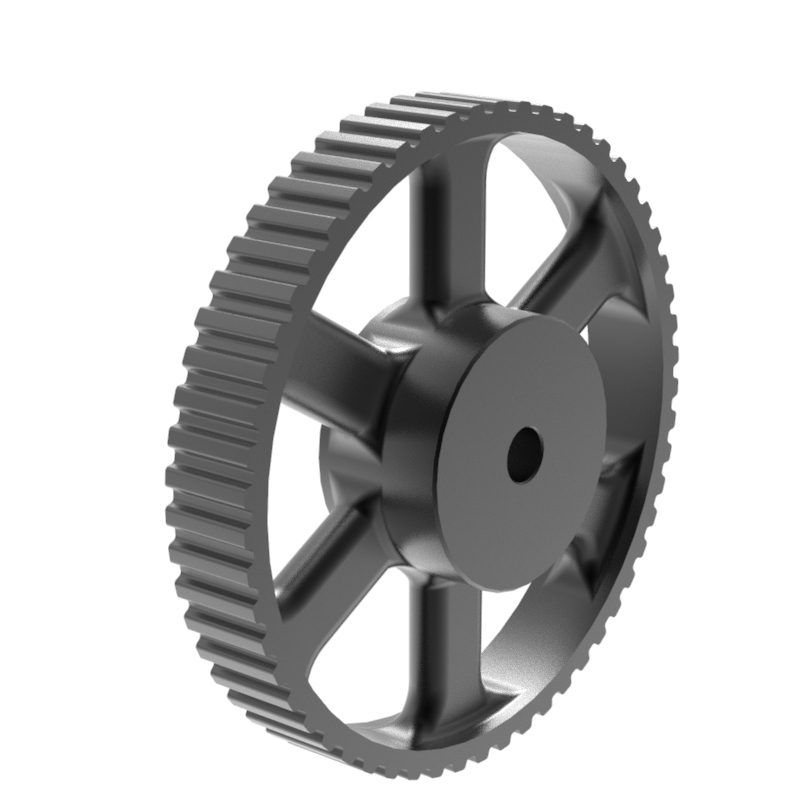

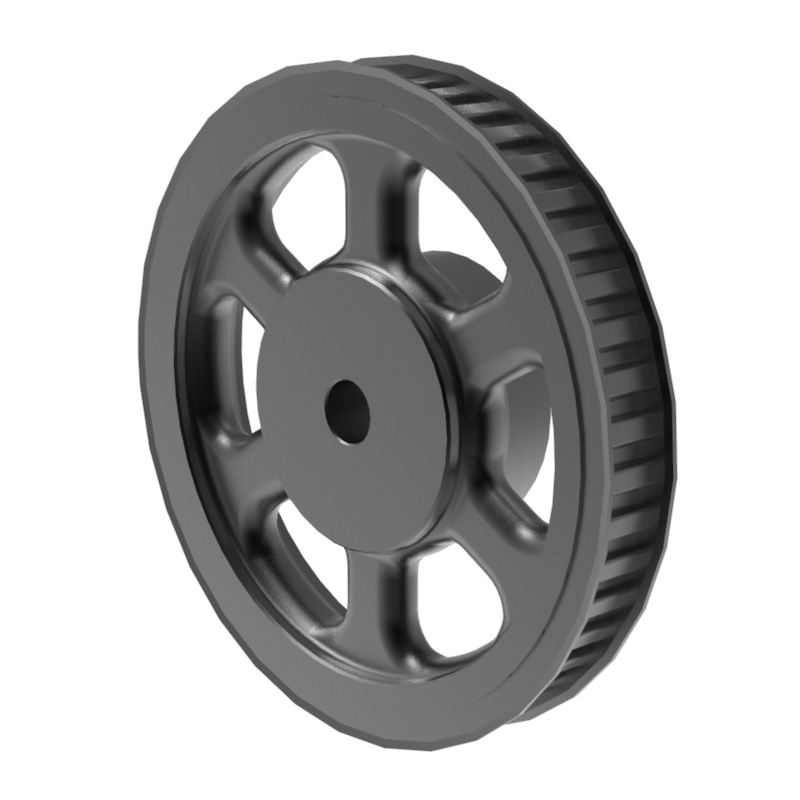

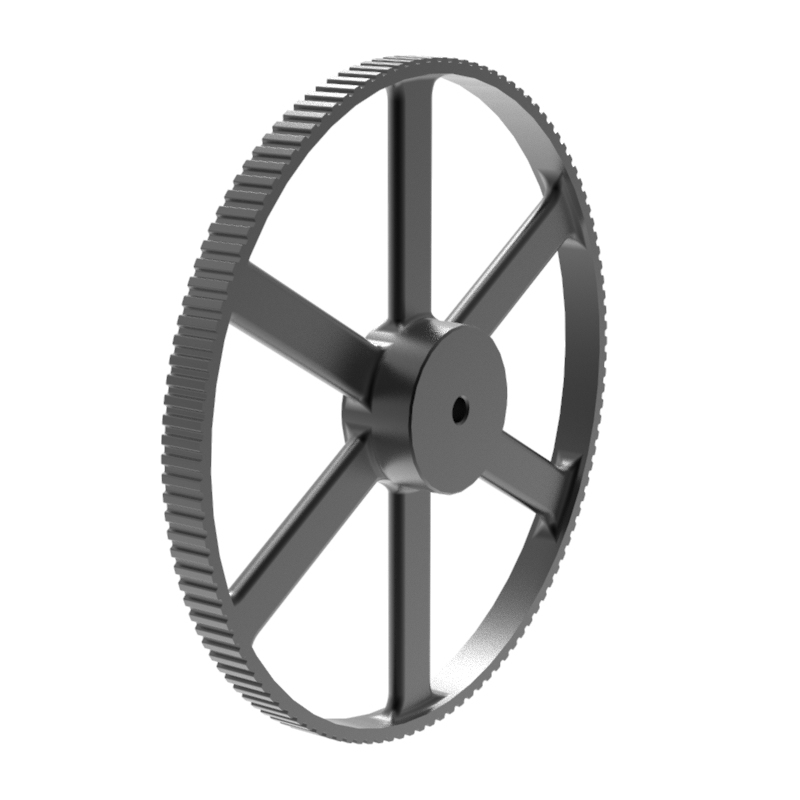

Timing Pulley |MXL/XL/L/H/XH|pilot bore
H 200
Pitch: 1/2” (12,7 mm)
FOR 2” (50,8 mm) WIDTH BELTS

Catalog No.	Type	Material	Teeth	Pitch Dia	Outer Dia	Flange Dia	Hub Dia	Tooth width	Total length	Bore Dia	n ° flange	Mass per pc

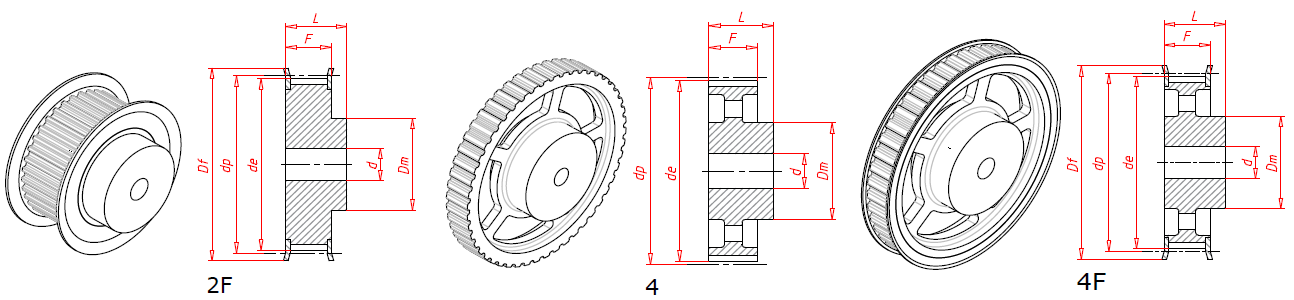

				dp	de	Df	Dm	F	L	d	n ° flange	(q≈)
				mm	mm	mm	mm	mm	mm	mm	°	kg/pc
14 H 200	2F	St	14	56.59	55.22	63	40	58.7	70	18	309	1.10
15 H 200	2F	St	15	60.64	59.27	66	45	58.7	70	18	310	1.33
16 H 200	2F	St	16	64.68	63.31	71	45	58.7	70	18	311	1.54
17 H 200	2F	St	17	68.72	67.35	75	45	58.7	70	18	312	1.69
18 H 200	2F	St	18	72.77	71.39	79	55	58.7	70	18	313	1.95
19 H 200	2F	St	19	76.81	75.44	83	60	58.7	70	18	314	2.20
20 H 200	2F	St	20	80.85	79.48	87	62	58.7	70	18	315	2.44
21 H 200	2F	St	21	84.89	83.52	91	65	58.7	70	18	316	2.70
22 H 200	2F	St	22	88.94	87.56	93	68	58.7	70	18	317	2.97
23 H 200	2F	St	23	92.98	91.61	97	72	58.7	70	18	318	3.25
24 H 200	2F	St	24	97.03	95.65	103	72	58.7	70	18	320	3.56
25 H 200	2F	St	25	101.06	99.69	106	72	58.7	70	18	321	3.81
26 H 200	2F	St	26	105.11	103.73	111	80	58.7	70	18	322	4.18
27 H 200	2F	St	27	109.15	107.78	115	80	58.7	70	18	323	4.49
28 H 200	2F	St	28	113.19	111.82	119	80	58.7	70	18	325	4.81
29 H 200	2F	St	29	117.23	115.86	123	80	58.7	70	18	326	5.14
30 H 200	2F	St	30	121.29	119.90	127	80	58.7	70	18	327	5.47
32 H 200	2F	St	32	129.36	127.99	135	80	58.7	70	18	328	6.17
33 H 200	2F	St	33	133.40	132.03	140	80	58.7	70	18	330	6.56
34 H 200	2F	St	34	137.45	136.07	143	80	58.7	70	18	331	6.94
35 H 200	2F	St	35	141.49	140.12	148	80	58.7	70	18	333	7.34
36 H 200	2F	St	36	145.53	144.16	152	80	58.7	70	18	334	7.75
38 H 200	2F	St	38	153.62	152.24	158	80	58.7	70	18	335	8.62
40 H 200	2F	St	40	161.70	160.33	168	80	58.7	70	18	338	9.50
44 H 200	4F	GG	44	177.87	176.50	184	80	58.7	70	18	339	5.14
45 H 200	4F	GG	45	181.91	180.54	192	80	58.7	70	18	340	5.38
48 H 200	4F	GG	48	194.04	192.67	200	90	58.7	75	24	342	6.29
50 H 200	4	GG	50	202.13	200.75		90	58.7	75	24		6.68
52 H 200	4	GG	52	210.21	208.84		90	58.7	75	24		6.81
58 H 200	4	GG	58	234.47	233.09		90	58.7	75	24		7.26
60 H 200	4	GG	60	242.55	241.18		100	58.7	75	24		8.25
70 H 200	4	GG	70	282.98	281.61		100	58.7	75	28		9.20
72 H 200	4	GG	72	291.06	289.69		120	58.7	75	28		11.09
84 H 200	4	GG	84	339.57	338.20		120	58.7	75	28		12.63
96 H 200	4	GG	96	388.08	386.71		120	58.7	75	28		14.51
120 H 200	4	GG	120	485.10	483.73		120	58.7	75	28		19.15
