H150

Description

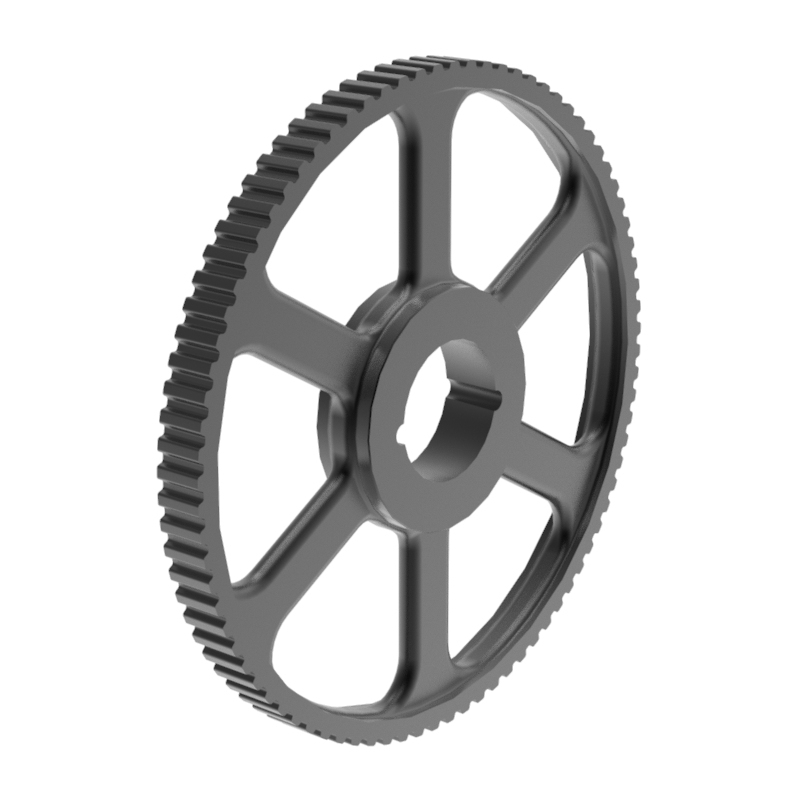

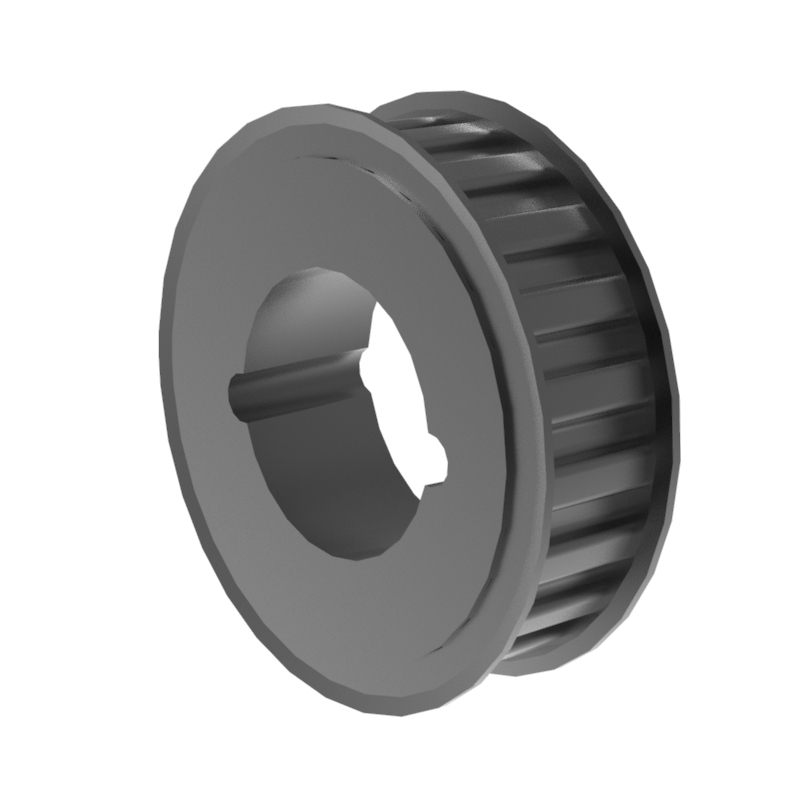

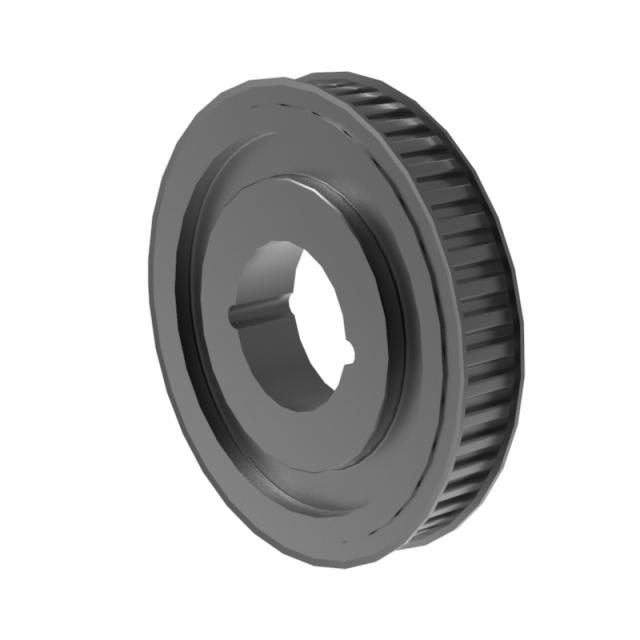

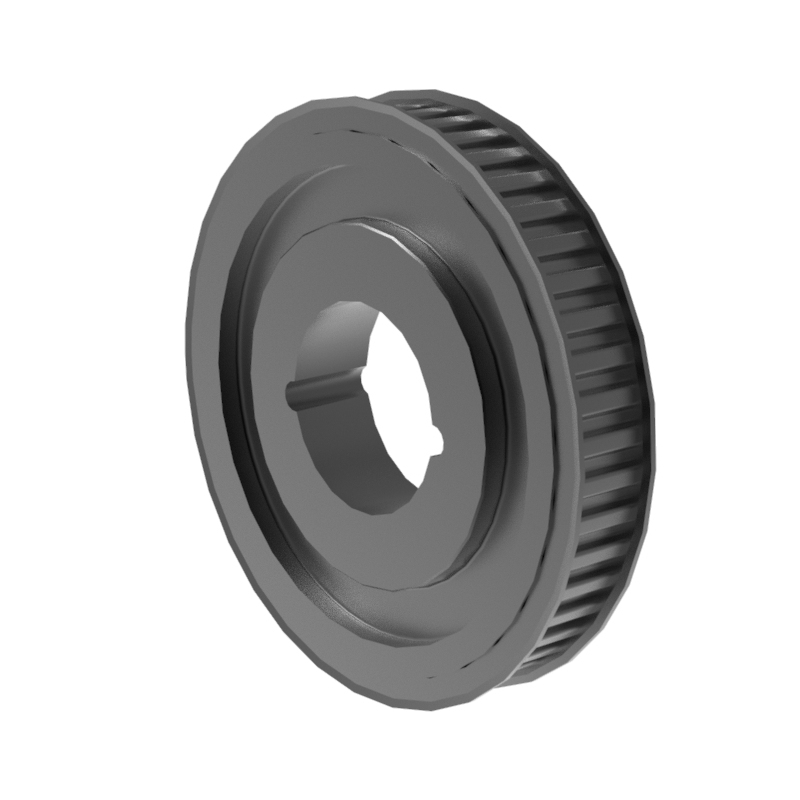

Timing Pulley |L/H|Taper Bore
H 150
Pitch: 1/2” (12,7 mm)
FOR 1”1/2 (38,1 mm) WIDTH BELTS

Catalog No.	Type	Material	Teeth	Bush No.	Bore max	Pitch Dia	Outer Dia	Flange Dia	Hub Dia		Tooth width	Total length			Mass per pc

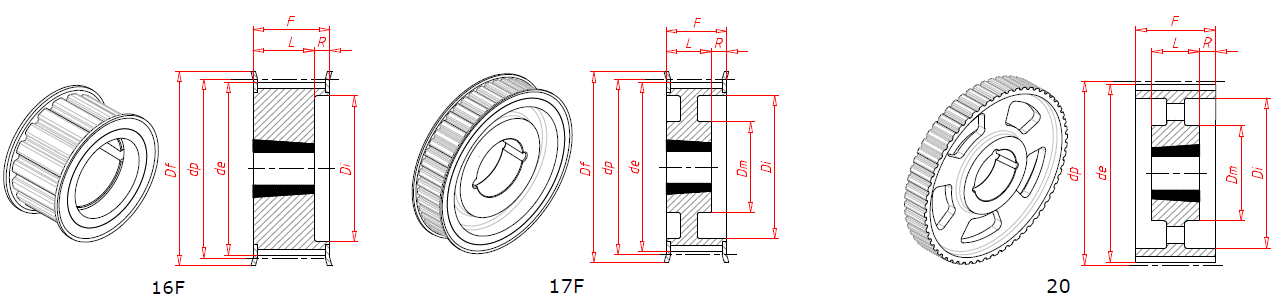

						dp	de	Df	Dm	Di	F	L	R	n ° flange	(q≈)
						mm	mm	mm	mm	mm	mm	mm	mm	°	kg/pc
TL 18 H 150	16F	St	18	1210	32	72.77	71.39	79		52	45.0	25.0	20.0	313	0.60
TL 19 H 150	16F	St	19	1210	32	76.81	75.44	83		56	45.0	25.0	20.0	314	0.72
TL 20 H 150	16F	St	20	1210	32	80.85	79.48	87		60	45.0	25.0	20.0	315	0.83
TL 21 H 150	16F	St	21	1210	32	84.89	83.52	91		64	45.0	25.0	20.0	316	1.00
TL 22 H 150	16F	St	22	1210	32	88.94	87.56	93		67	45.0	25.0	20.0	317	1.25
TL 23 H 150	16F	St	23	1610	42	92.98	91.61	97		70	45.0	25.0	20.0	318	1.05
TL 24 H 150	16F	St	24	1610	42	97.02	95.65	103		735	45.0	25.0	20.0	320	1.10
TL 25 H 150	16F	St	25	1610	42	101.06	99.69	106		77	45.0	25.0	20.0	321	1.30
TL 26 H 150	16F	St	26	1610	42	105.11	103.73	111		82	45.0	25.0	20.0	322	1.42
TL 27 H 150	16F	St	27	1610	42	109.15	107.78	115		85	45.0	25.0	20.0	323	1.65
TL 28 H 150	16F	St	28	1610	42	113.19	111.82	119		905	45.0	25.0	20.0	325	1.88
TL 30 H 150	16F	St	30	1610	42	121.28	119.90	127		98	45.0	25.0	20.0	327	2.05
TL 32 H 150	17F	St	32	1610	42	129.36	127.99	135	90	106	45.0	25.0	20.0	328	2.35
TL 36 H 150	17F	St	36	1610	42	145.53	144.16	152	92	121	45.0	25.0	20.0	334	3.20
TL 40 H 150	17F	St	40	1610	42	161.70	160.33	168	92	138	45.0	25.0	20.0	338	4.10
TL 44 H 150	17F	St	44	2012	50	177.87	176.50	184	106	152	45.0	32.0	13.0	339	4.50
TL 48 H 150	17F	St	48	2012	50	194.04	192.67	200	106	169	45.0	32.0	13.0	342	4.80
TL 60 H 150	20	GG	60	2012	50	242.55	241.18		106	223	46.0	32.0	7.0		4.51
TL 72 H 150	20	GG	72	2012	50	291.06	289.69		106	270	46.0	32.0	7.0		6.16
TL 84 H 150	20	GG	84	2012	50	339.57	338.20		106	320	46.0	32.0	7.0		7.40
TL 96 H 150	20	GG	96	2517	60	388.08	386.71		119	366	46.0	45.0	0.5		9.87
TL 120 H 150	20	GG	96	2517	60	485.10	483.73		119	462	46.0	45.0	0.5		13.50
