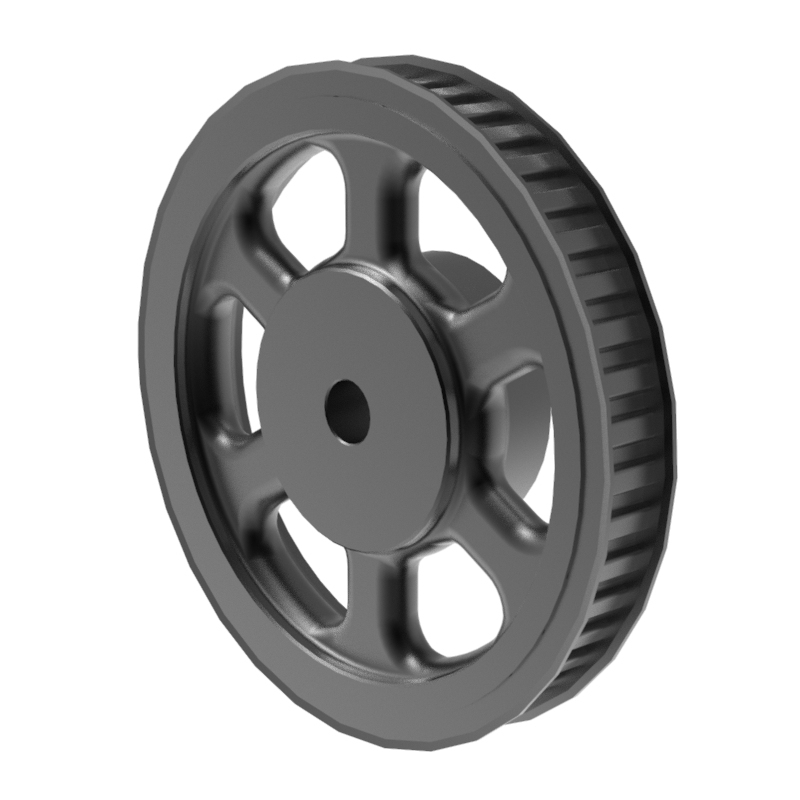

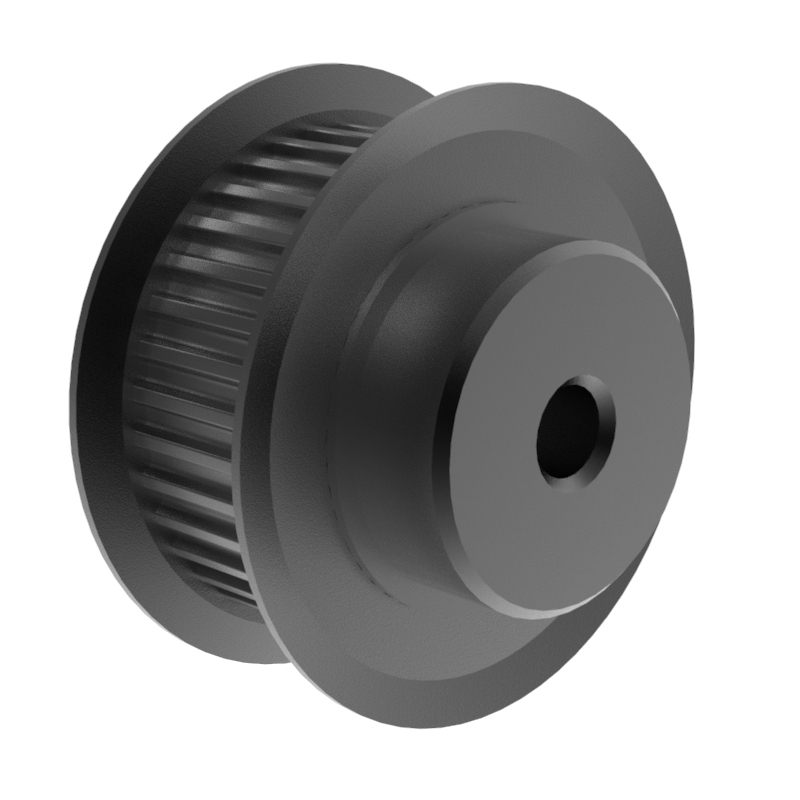

H150

Description

H 150
Pitch: 1/2” (12,7 mm)
FOR 1”1/2 (38,1 mm) WIDTH BELTS

Catalog No.	Type	Material	Teeth	Pitch Dia	Outer Dia	Flange Dia	Hub Dia	Tooth width	Total length	Bore Dia	n ° flange	Mass per pc

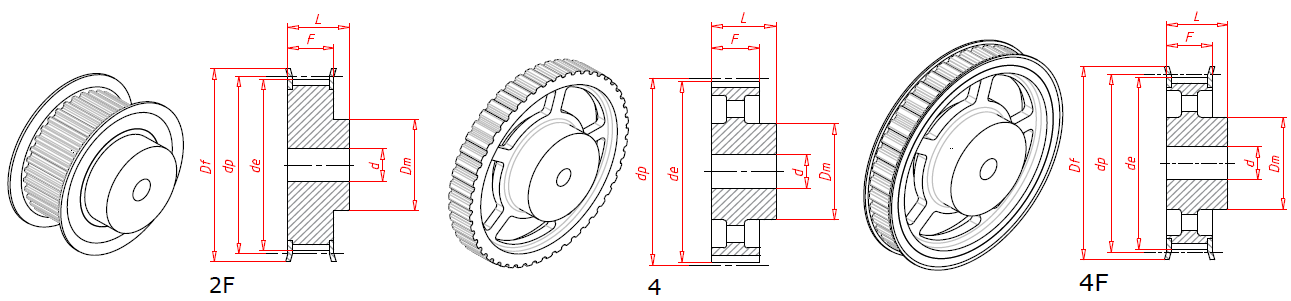

				dp	de	Df	Dm	F	L	d	n ° flange	(q≈)
				mm	mm	mm	mm	mm	mm	mm	°	kg/pc

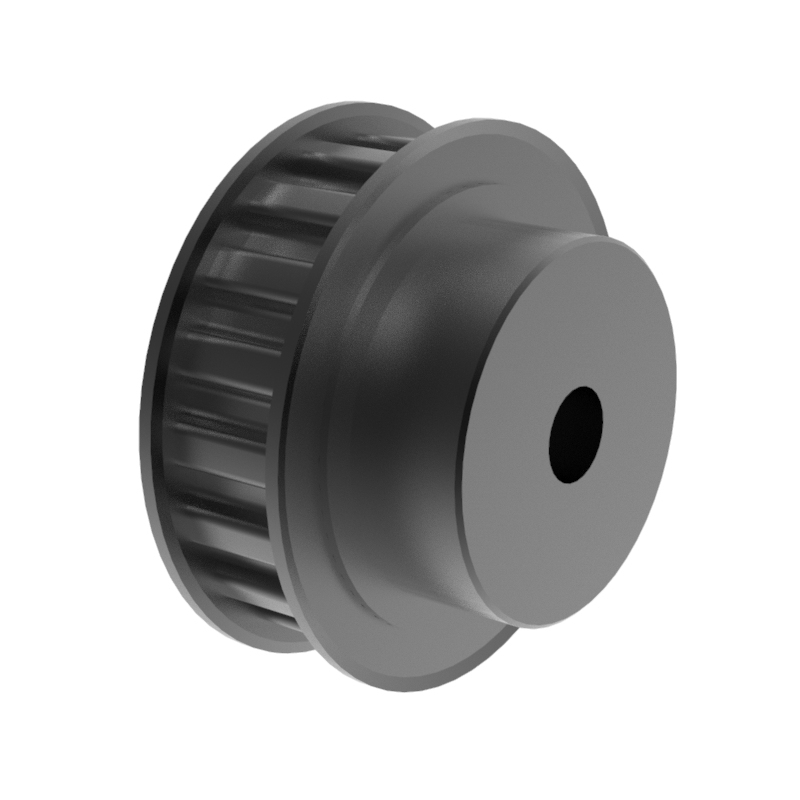

14 H 150	2F	St	14	56.59	55.22	63	40	46.0	58	18	309	0.81
15 H 150	2F	St	15	60.64	59.27	66	45	46.0	58	18	310	0.97
16 H 150	2F	St	16	64.68	63.31	71	45	46.0	58	18	311	1.11
17 H 150	2F	St	17	68.72	67.35	75	45	46.0	58	18	312	1.25
18 H 150	2F	St	18	72.77	71.39	79	55	46.0	58	18	313	1.48
19 H 150	2F	St	19	76.81	75.44	83	60	46.0	58	18	314	1.68
20 H 150	2F	St	20	80.85	79.48	87	62	46.0	58	18	315	1.88
21 H 150	2F	St	21	84.89	83.52	91	65	46.0	58	18	316	2.08
22 H 150	2F	St	22	88.94	87.56	93	68	46.0	58	18	317	2.30
23 H 150	2F	St	23	92.98	91.61	97	72	46.0	58	18	318	2.54
24 H 150	2F	St	24	97.03	95.65	103	72	46.0	58	18	320	2.75
25 H 150	2F	St	25	101.06	99.69	106	72	46.0	58	18	321	2.97
26 H 150	2F	St	26	105.11	103.73	111	80	46.0	58	18	322	3.29
27 H 150	2F	St	27	109.15	107.78	115	80	46.0	58	18	323	3.52
28 H 150	2F	St	28	113.19	111.82	119	80	46.0	58	18	325	3.78
29 H 150	2F	St	29	117.23	115.86	123	80	46.0	58	18	326	4.03
30 H 150	2F	St	30	121.29	119.90	127	80	46.0	58	18	327	4.29
32 H 150	2F	St	32	129.36	127.99	135	80	46.0	58	18	328	4.86
33 H 150	2F	St	33	133.40	132.03	140	80	46.0	58	18	330	5.15
34 H 150	2F	St	34	137.45	136.07	143	80	46.0	58	18	331	5.46
35 H 150	2F	St	35	141.49	140.12	148	80	46.0	58	18	333	5.78
36 H 150	2F	St	36	145.53	144.16	152	80	46.0	58	18	334	6.09
38 H 150	2F	St	38	153.62	152.24	158	80	46.0	58	18	335	6.74
40 H 150	2F	St	40	161.70	160.33	168	80	46.0	58	18	338	7.46

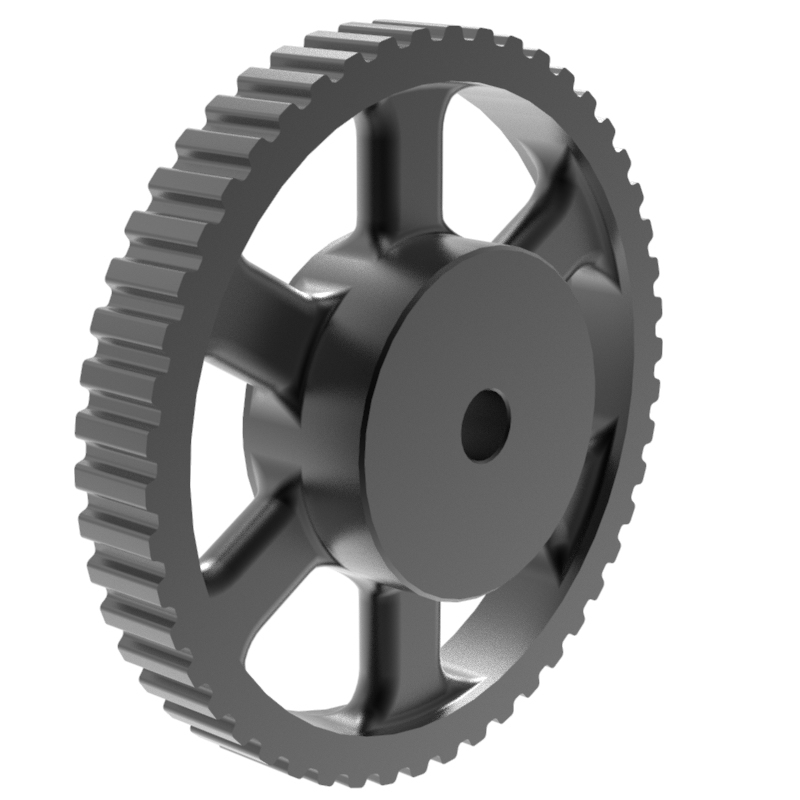

44 H 150	4F	GG	44	177.87	176.50	184	80	46.0	58	18	339	4.29
45 H 150	4F	GG	45	181.91	180.54	192	80	46.0	58	18	340	4.44
48 H 150	4F	GG	48	194.04	192.67	200	90	46.0	65	18	342	5.41

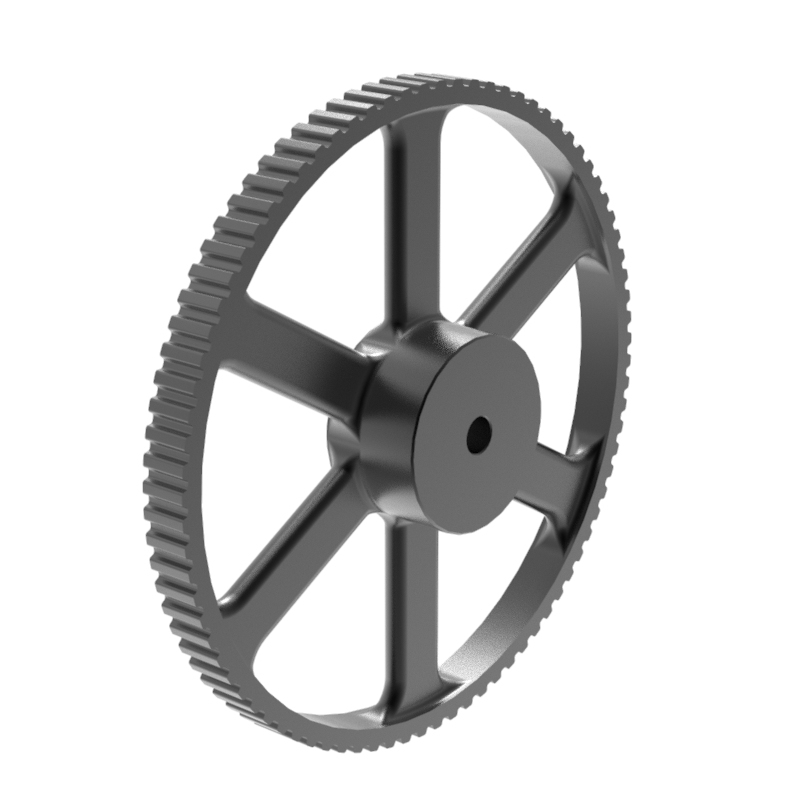

50 H 150	4	GG	50	202.13	200.75		90	46.0	65	18		5.59
52 H 150	4	GG	52	210.21	208.84		90	46.0	65	18		5.79
58 H 150	4	GG	58	234.47	233.09		90	46.0	65	18		6.15
60 H 150	4	GG	60	242.55	241.18		100	46.0	65	18		7.08
70 H 150	4	GG	70	282.98	281.61		100	46.0	65	24		7.77
72 H 150	4	GG	72	291.06	289.69		120	46.0	65	24		9.70
84 H 150	4	GG	84	339.57	338.20		120	46.0	65	24		10.99
96 H 150	4	GG	96	388.08	386.71		120	46.0	65	24		12.24
120 H 150	4	GG	120	485.10	483.73		120	46.0	65	24		16.17
