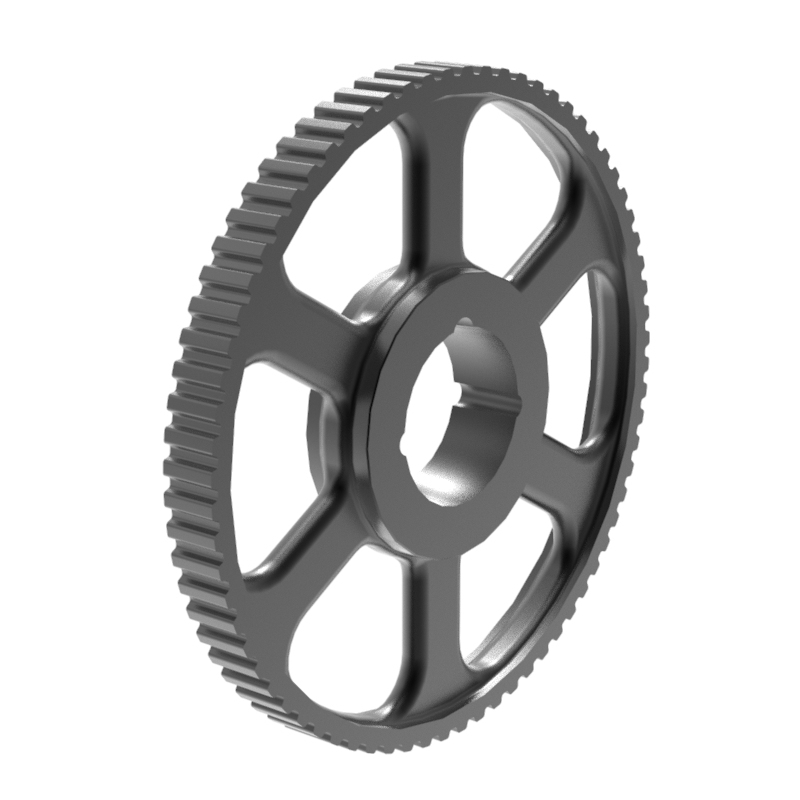

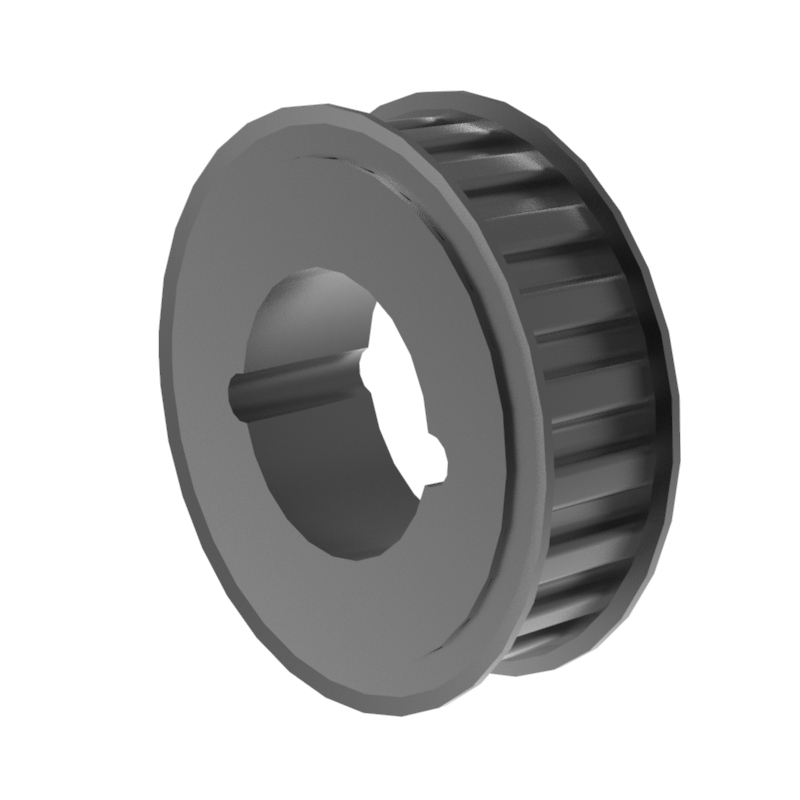

Timing Pulley |L/H|Taper Bore
H 100
Pitch: 1/2” (12,7 mm)
FOR 1” (25,4 mm) WIDTH BELTS

Catalog No.	Type	Material	Teeth	Bush No.	Bore max	Pitch Dia	Outer Dia	Flange Dia	Hub Dia		Tooth width	Total length			Mass per pc

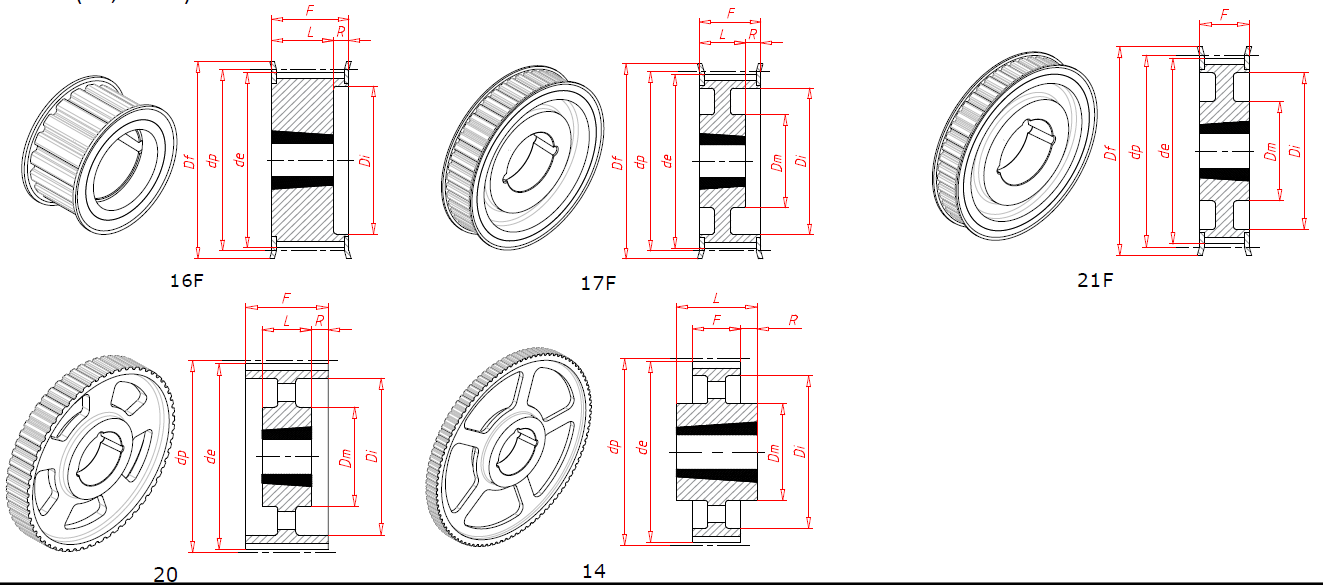

						dp	de	Df	Dm	Di	F	L	R	n ° flange	(q≈)
						mm	mm	mm	mm	mm	mm	mm	mm	°	kg/pc
TL 16 H 100	16F	St	16	1108	28	64.68	63.31	71		45	31.0	22.0	9.0	311	0.42
TL 18 H 100	16F	St	18	1210	32	72.77	71.39	79		52	31.0	25.0	6.0	313	0.49
TL 19 H 100	16F	St	19	1210	32	76.81	75.44	83		56	31.0	25.0	6.0	314	0.62
TL 20 H 100	16F	St	20	1210	32	80.85	79.48	87		60	31.0	25.0	6.0	315	0.73
TL 21 H 100	16F	St	21	1210	32	84.89	83.52	91		64	32.0	25.0	7.0	316	0.80
TL 22 H 100	16F	St	22	1210	32	88.94	87.56	93		67	32.0	25.0	7.0	317	0.94
TL 23 H 100	16F	St	23	1610	42	92.98	91.61	97		70	32.0	25.0	7.0	318	0.97
TL 24 H 100	16F	St	24	1610	42	97.02	95.65	103		735	32.0	25.0	7.0	320	1.05
TL 25 H 100	16F	St	25	1610	42	101.06	99.69	106		77	32.0	25.0	7.0	321	1.10
TL 26 H 100	16F	St	26	1610	42	105.11	103.73	111		82	32.0	25.0	7.0	322	1.20
TL 27 H 100	16F	St	27	1610	42	109.15	107.78	115		85	32.0	25.0	7.0	323	1.35
TL 28 H 100	16F	St	28	1610	42	113.19	111.82	119		905	32.0	25.0	7.0	325	1.50
TL 30 H 100	16F	St	30	1610	42	121.28	119.90	127		98	32.0	25.0	7.0	327	1.78
TL 32 H 100	17F	St	32	1610	42	129.36	127.99	135	90	106	32.0	25.0	7.0	328	2.05
TL 36 H 100	17F	St	36	1610	42	145.53	144.16	152	92	121	32.0	25.0	7.0	334	2.80
TL 40 H 100	17F	St	40	1610	42	161.70	160.33	168	92	138	32.0	25.0	7.0	338	3.65
TL 44 H 100	21F	St	44	2012	50	177.87	176.50	184	106	152	32.0	32.0		339	3.86
TL 48 H 100	21F	St	48	2012	50	194.04	192.67	200	106	169	32.0	32.0		342	4.20
TL 60 H 100	20	GG	60	2012	50	242.55	241.18		106	223	34.0	32.0	1.0		3.76
TL 72 H 100	20	GG	72	2012	50	291.06	289.69		106	270	34.0	32.0	1.0		4.88
TL 84 H 100	20	GG	84	2012	50	339.57	338.20		106	318	34.0	32.0	1.0		6.12
TL 96 H 100	14	GG	96	2517	60	388.08	386.71		119	366	34.0	45.0	5.5		7.95
TL 120H100	14	GG	120	2517	60	485.10	483.73		119	462	34.0	45.0	5.5		10.05
