H100

Description

H 100
Pitch: 1/2” (12,7 mm)
FOR 1” (25,4 mm) WIDTH BELTS

Catalog No.	Type	Material	Teeth	Pitch Dia	Outer Dia	Flange Dia	Hub Dia	Tooth width	Total length	Bore Dia	n ° flange	Mass per pc
				dp	de	Df	Dm	F	L	d	n ° flange	(q≈)
				mm	mm	mm	mm	mm	mm	mm	°	kg/pc

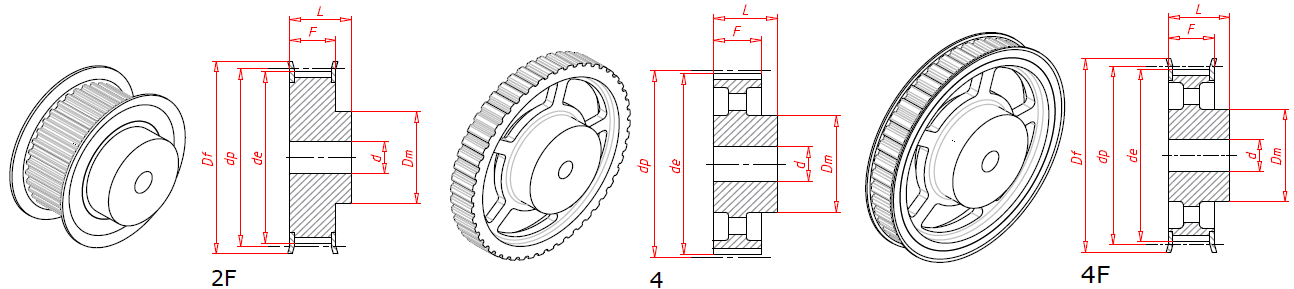

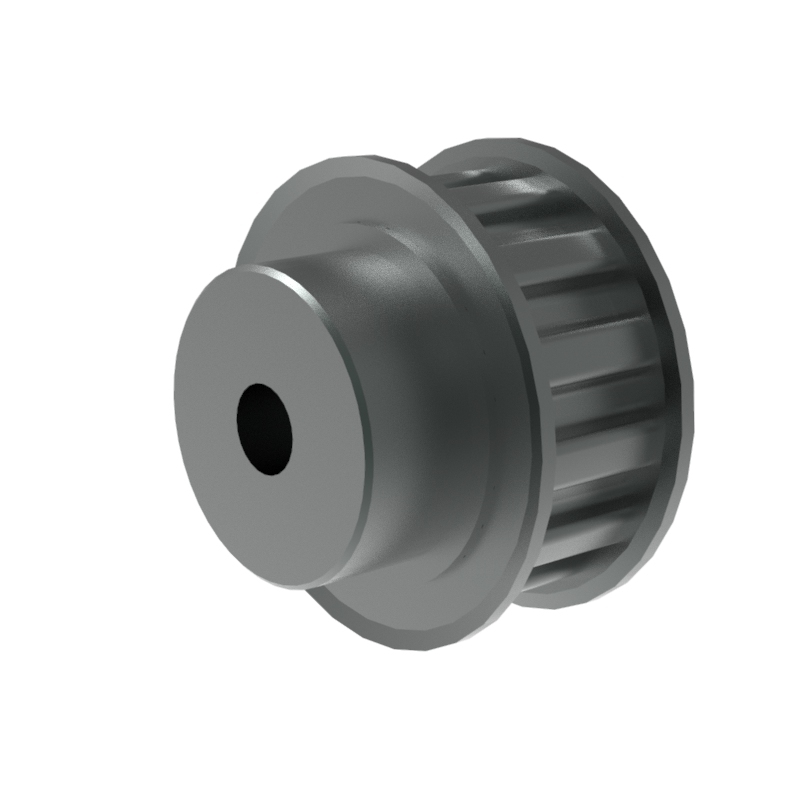

14 H 100	2F	St	14	56.59	55.22	63	40	31.8	45	12	309	0.65
15 H 100	2F	St	15	60.64	59.27	66	45	31.8	45	12	310	0.77
16 H 100	2F	St	16	64.68	63.31	71	45	31.8	45	12	311	0.87
17 H 100	2F	St	17	68.72	67.35	75	45	31.8	45	12	312	0.97
18 H 100	2F	St	18	72.77	71.39	79	55	31.8	45	12	313	1.16
19 H 100	2F	St	19	76.81	75.44	83	60	31.8	45	14	314	1.30
20 H 100	2F	St	20	80.85	79.48	87	62	31.8	45	14	315	1.44
21 H 100	2F	St	21	84.89	83.52	91	65	31.8	45	14	316	1.60
22 H 100	2F	St	22	88.94	87.56	93	68	31.8	45	14	317	1.76
23 H 100	2F	St	23	92.98	91.61	97	72	31.8	45	14	318	1.94
24 H 100	2F	St	24	97.03	95.65	103	72	31.8	45	14	320	2.09
25 H 100	2F	St	25	101.06	99.69	106	72	31.8	45	14	321	2.24
26 H 100	2F	St	26	105.11	103.73	111	80	31.8	45	14	322	2.49
27 H 100	2F	St	27	109.15	107.78	115	80	31.8	45	14	323	2.66
28 H 100	2F	St	28	113.19	111.82	119	80	31.8	45	14	325	2.83
29 H 100	2F	St	29	117.23	115.86	123	80	31.8	45	14	326	3.01
30 H 100	2F	St	30	121.29	119.90	127	80	31.8	45	14	327	3.19
32 H 100	2F	St	32	129.36	127.99	135	80	31.8	45	14	328	3.57
33 H 100	2F	St	33	133.40	132.03	140	80	31.8	45	14	330	3.79
34 H 100	2F	St	34	137.45	136.07	143	80	31.8	45	14	331	3.99
35 H 100	2F	St	35	141.49	140.12	148	80	31.8	45	14	333	4.20
36 H 100	2F	St	36	145.53	144.16	152	80	31.8	45	14	334	4.44
38 H 100	2F	St	38	153.62	152.24	158	80	31.8	45	14	335	4.90
40 H 100	2F	St	40	161.70	160.33	168	80	31.8	45	14	338	5.39

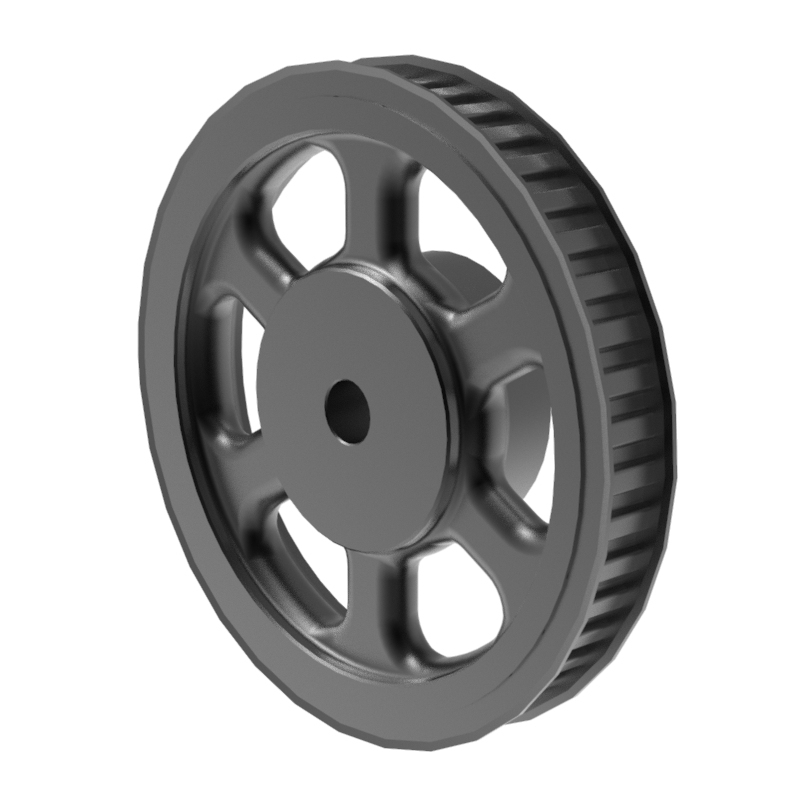

44 H 100	4F	GG	44	177.87	176.50	184	80	31.8	50	18	339	3.37
45 H 100	4F	GG	45	181.91	180.54	192	80	31.8	50	18	340	3.57
48 H 100	4F	GG	48	194.04	192.67	200	90	31.8	50	18	342	4.10
50 H 100	4	GG	50	202.13	200.75		90	31.8	50	18		4.24
52 H 100	4	GG	52	210.21	208.84		90	31.8	50	18		4.32
58 H 100	4	GG	58	234.47	233.09		90	31.8	50	18		4.61
60 H 100	4	GG	60	242.55	241.18		100	31.8	50	18		5.30
70 H 100	4	GG	70	282.98	281.61		100	31.8	55	18		6.13
72 H 100	4	GG	72	291.06	289.69		120	31.8	55	18		7.47
84 H 100	4	GG	84	339.57	338.20		120	31.8	55	18		8.52
96 H 100	4	GG	96	388.08	386.71		120	31.8	60	18		10.25
120 H 100	4	GG	120	485.10	483.73		120	31.8	60	18		13.09
