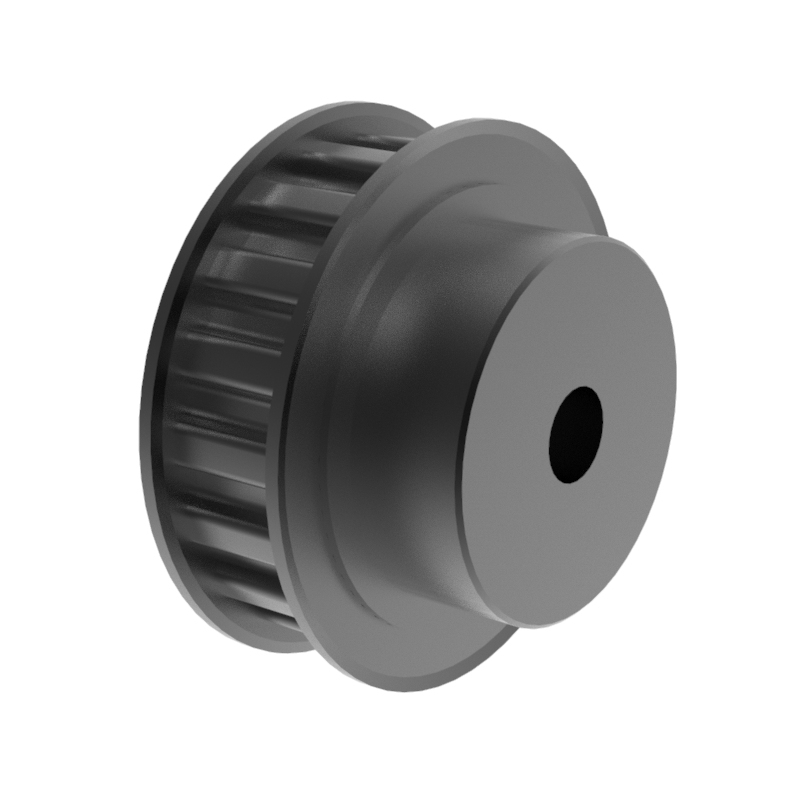

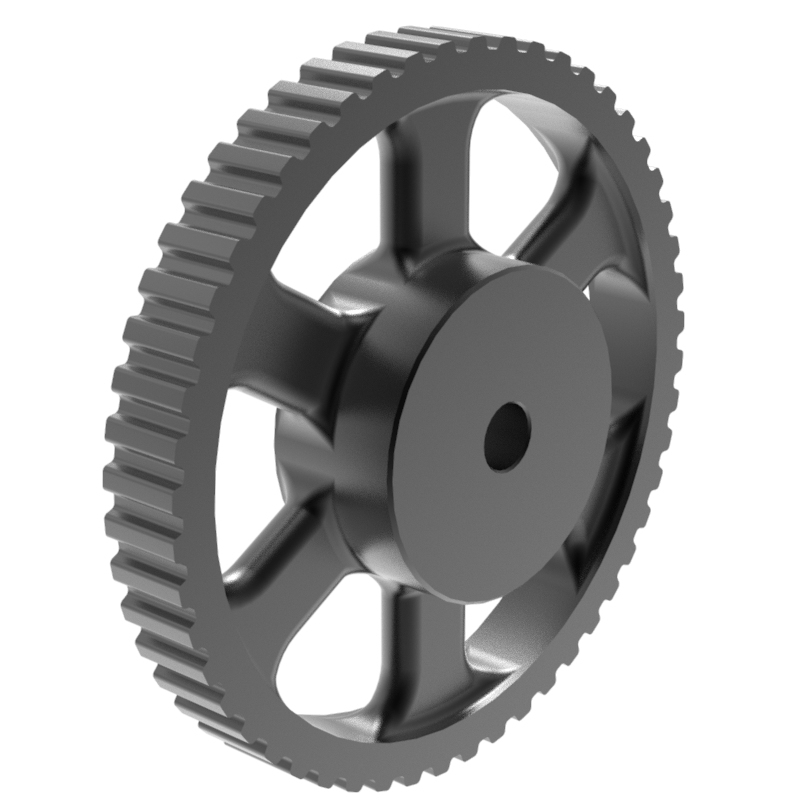

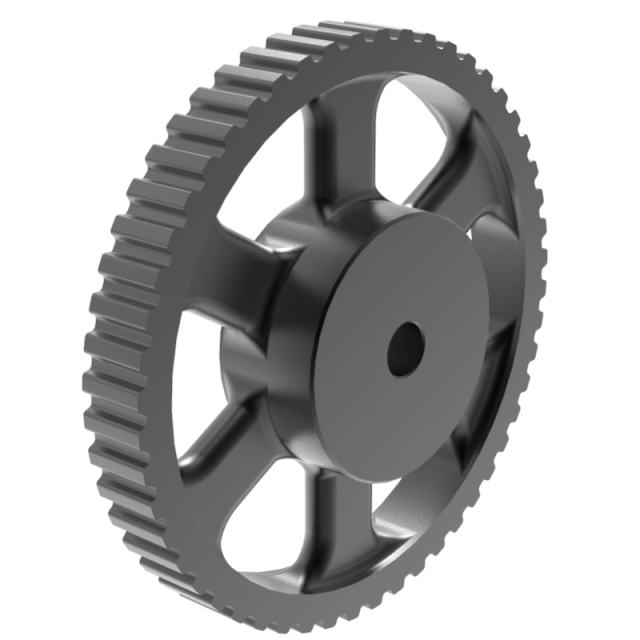

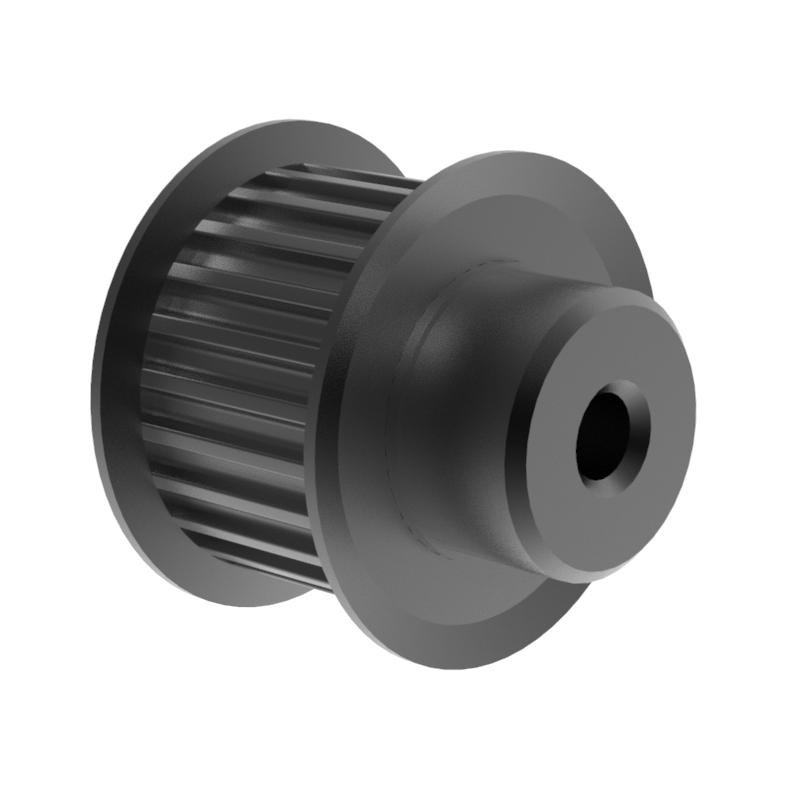

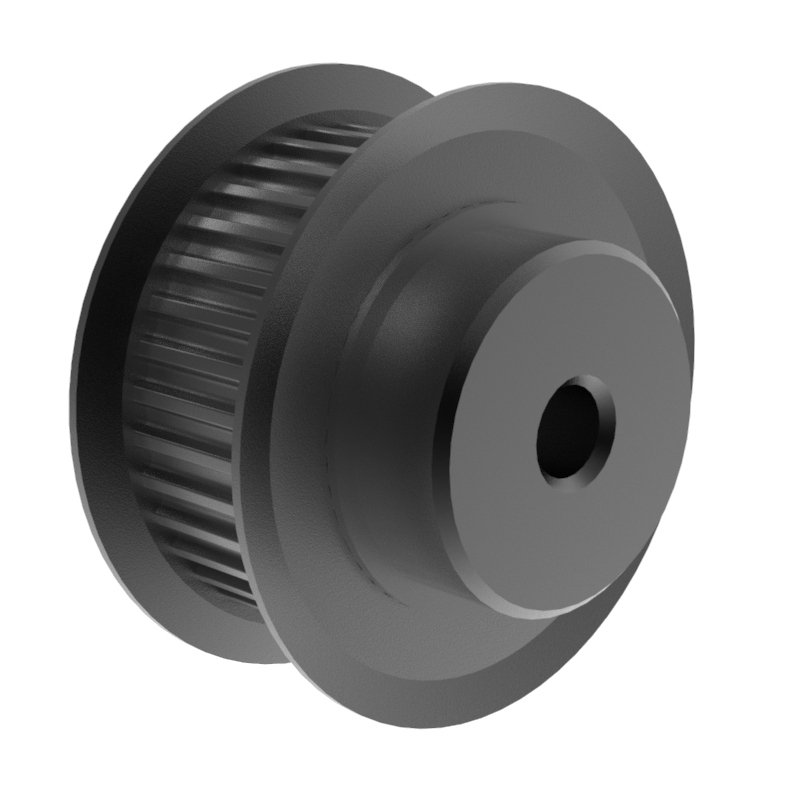

H075

No.H075

Steel UNI C45 Cast iron GG25 UNI 5007 Pitch: 1/2" (12.70mm)

GET A QUOTE

Description

Timing Pulley |MXL/XL/L/H/XH|pilot bore
H 075
Pitch: 1/2” (12,7 mm)
FOR 3/4” (19,05 mm) WIDTH BELTS

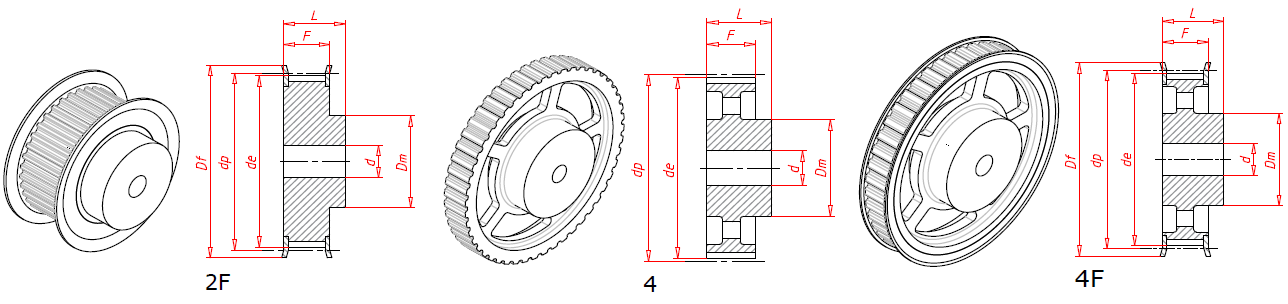

Catalog No.	Type	Material	Teeth	Pitch Dia	Outer Dia	Flange Dia	Hub Dia	Tooth width	Total length	Bore Dia	n ° flange	Mass per pc
				dp	de	Df	Dm	F	L	d	n ° flange	(q≈)
				mm	mm	mm	mm	mm	mm	mm	°	kg/pc
14 H 075	2F	St	14	56.59	55.22	63	40	26.4	40	10	309	0.58
15 H 075	2F	St	15	60.64	59.27	66	45	26.4	40	10	310	0.69
16 H 075	2F	St	16	64.68	63.31	71	45	26.4	40	10	311	0.77
17 H 075	2F	St	17	68.72	67.35	75	45	26.4	40	12	312	0.84
18 H 075	2F	St	18	72.77	71.39	79	55	26.4	40	12	313	1.01
19 H 075	2F	St	19	76.81	75.44	83	60	26.4	40	12	314	1.15
20 H 075	2F	St	20	80.85	79.48	87	62	26.4	40	12	315	1.27
21 H 075	2F	St	21	84.89	83.52	91	65	26.4	40	12	316	1.41
22 H 075	2F	St	22	88.94	87.56	93	68	26.4	40	12	317	1.55
23 H 075	2F	St	23	92.98	91.61	97	72	26.4	40	12	318	1.71
24 H 075	2F	St	24	97.03	95.65	103	72	26.4	40	12	320	1.83
25 H 075	2F	St	25	101.06	99.69	106	72	26.4	40	12	321	1.96
26 H 075	2F	St	26	105.11	103.73	111	80	26.4	40	12	322	2.19
27 H 075	2F	St	27	109.15	107.78	115	80	26.4	40	12	323	2.32
28 H 075	2F	St	28	113.19	111.82	119	80	26.4	40	12	325	2.47
30 H 075	2F	St	30	121.29	119.90	127	80	26.4	40	14	327	2.76
32 H 075	2F	St	32	129.36	127.99	135	80	26.4	40	14	328	3.08
33 H 075	2F	St	33	133.40	132.03	140	80	26.4	40	14	330	3.25
34 H 075	2F	St	34	137.45	136.07	143	80	26.4	40	14	331	3.42
35 H 075	2F	St	35	141.49	140.12	148	80	26.4	40	14	333	3.61
36 H 075	2F	St	36	145.53	144.16	152	80	26.4	40	14	334	3.79
38 H 075	2F	St	38	153.62	152.24	158	80	26.4	40	14	335	4.16
40 H 075	2F	St	40	161.70	160.33	168	80	26.4	40	14	338	4.58
44 H 075	4F	GG	44	177.87	176.50	184	80	26.4	40	18	339	2.57
48 H 075	4F	GG	48	194.04	192.67	200	90	26.4	45	18	342	3.56
50 H 075	4	GG	50	202.13	200.75		90	26.4	45	18		3.74
