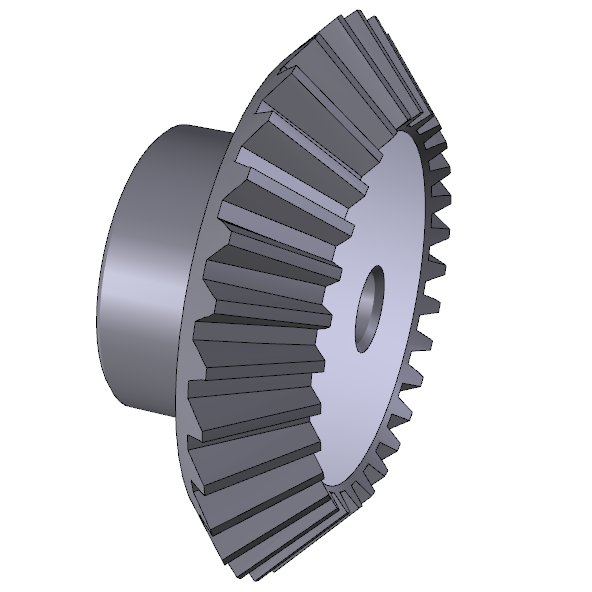

Coppie coniche ad assi normali - tipo B - esecuzione speciale
Bevel gear pairs with usual axes - type B - special execution
Kegelräder mit Normalachsen - Typ B - Spezialausführung
Couples coniques avec essieux normaux - type B - exècution spèciale
Engranajes conicos a ejes normales - tipo B - ejecución especial
Rapporto 1:4 / Ratio 1:4 / Untersetzung 1:4 / Rapport 1:4 / Relaciones 1:4
Pressure angle 20°
Material C45E
UNI EN 10083-1

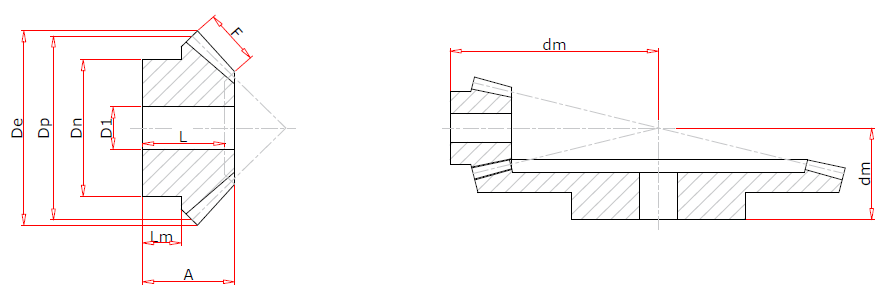

| Mod |
Teeth |
De |
Dp |
A |
F |
Dn |
D1 |
dm |
L |
Lm |
| 1 |
15 |
17.8 |
15.0 |
17.2 |
93 |
13.3 |
4 |
38 |
|
7.7 |
| 1 |
60 |
60.3 |
60.0 |
17.1 |
93 |
30.3 |
8 |
22 |
15 |
10 |
| 1.5 |
15 |
26.7 |
22.5 |
23.0 |
11 |
20.3 |
8 |
57 |
|
11.7 |
| 1.5 |
60 |
90.4 |
90.0 |
34.0 |
11 |
50.3 |
15 |
42 |
31 |
25 |
| 2 |
15 |
35.6 |
30.0 |
31.0 |
16 |
25.3 |
8 |
75 |
|
14.4 |
| 2 |
60 |
120.6 |
120.0 |
37.6 |
16 |
60.3 |
16 |
48 |
34 |
25 |
| 2.5 |
15 |
44.5 |
37.5 |
38.1 |
19 |
32.3 |
14 |
94 |
|
18.4 |
| 2.5 |
60 |
150.7 |
150.0 |
44.8 |
19 |
60.3 |
20 |
58 |
40 |
30 |
| 3 |
15 |
53.3 |
45.0 |
48.1 |
23 |
40.3 |
15 |
115 |
|
24.5 |
| 3 |
60 |
180.8 |
180.0 |
53.2 |
23 |
80.3 |
20 |
69 |
48 |
35 |
| 3.5 |
15 |
62.2 |
52.5 |
52.1 |
26 |
45.3 |
15 |
131 |
|
25.1 |
| 3.5 |
60 |
211.0 |
210.0 |
60.4 |
26 |
90.3 |
20 |
79 |
54 |
40 |
| 4 |
15 |
71.1 |
60.0 |
55.1 |
30 |
50.3 |
20 |
145 |
|
23.8 |
| 4 |
60 |
241.1 |
240.0 |
60.8 |
30 |
90.3 |
20 |
82 |
53 |
40 |
| 4.5 |
15 |
79.9 |
67.5 |
59.1 |
34 |
60.3 |
20 |
160 |
|
24.1 |
| 4.5 |
60 |
271.2 |
270.0 |
68.2 |
34 |
100.3 |
20 |
92 |
61 |
40 |
| 5 |
15 |
88.8 |
75.0 |
68.1 |
38 |
70.3 |
20 |
180 |
|
29.4 |
| 5 |
60 |
301.3 |
300.0 |
73.5 |
38 |
110.3 |
20 |
100 |
66 |
40 |
|
|
|
|
