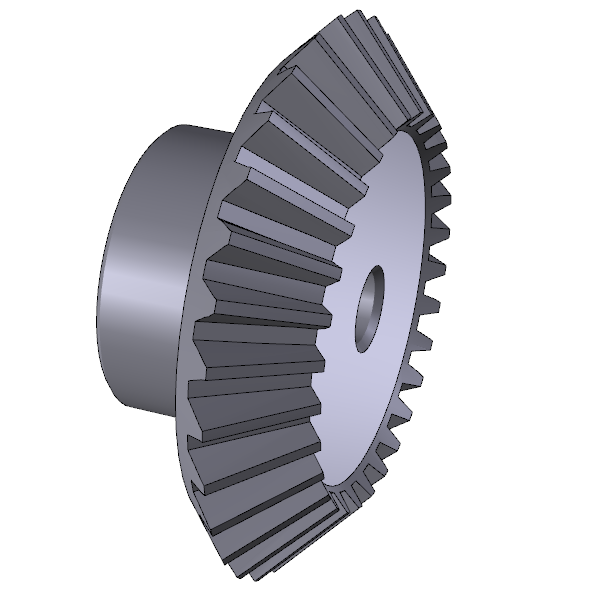

Bevel gear pairs with usual axes - type A
Coppie coniche ad assi normali - tipo A
Kegelräder mit Normalachsen - Typ A
Couples coniques avec essieux normaux - type A
Engranajes conicos a ejes normales - tipo A
Ratio 1:4
Pressure angle 20°
Material C45E
UNI EN 10083-1

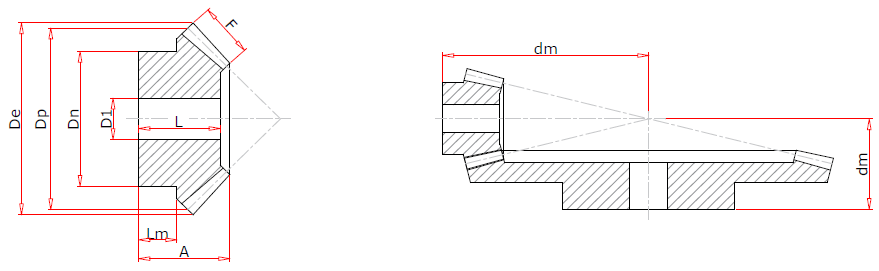

| Mod |
Teeth |
De |
Dp |
A |
F |
Dn |
D1 |
dm |
L |
Lm |
| 1.5 |
16 |
26.9 |
24 |
25 |
12 |
18 |
10 |
61.1 |
24 |
12.2 |
| 1.5 |
64 |
96.7 |
96 |
25 |
12 |
60 |
15 |
33 |
22 |
13 |
| 2 |
16 |
35.9 |
32 |
24 |
15 |
25 |
12 |
73.1 |
23 |
8.5 |
| 2 |
64 |
129 |
128 |
28 |
15 |
70 |
20 |
38.9 |
24 |
14 |
| 2.5 |
16 |
44.9 |
40 |
30.5 |
18 |
34 |
15 |
92.6 |
29 |
11.7 |
| 2.5 |
64 |
161.2 |
160 |
35 |
18 |
80 |
20 |
48.8 |
30 |
16 |
| 3 |
16 |
53.8 |
48 |
32 |
20 |
40 |
15 |
108 |
30 |
11.1 |
| 3 |
64 |
193.5 |
192 |
42 |
20 |
90 |
20 |
58.8 |
36 |
22 |
| 3.5 |
16 |
62.8 |
56 |
40 |
25 |
45 |
15 |
127.1 |
38 |
1.4 |
| 3.5 |
64 |
225.7 |
224 |
50 |
25 |
100 |
20 |
69.3 |
43 |
22 |
| 4 |
16 |
71.7 |
64 |
50 |
30 |
50 |
20 |
148.2 |
48 |
18.5 |
| 4 |
64 |
257.9 |
256 |
60 |
30 |
110 |
20 |
81.8 |
52 |
30 |
| 4.5 |
16 |
80.7 |
72 |
55 |
32 |
60 |
20 |
167.1 |
53 |
21.6 |
| 4.5 |
64 |
290.1 |
288 |
65 |
32 |
120 |
20 |
89.8 |
57 |
35 |
| 5 |
16 |
89.7 |
80 |
60 |
35 |
65 |
20 |
185.1 |
58 |
23.2 |
| 5 |
64 |
322.4 |
320 |
70 |
35 |
120 |
20 |
97.7 |
61 |
42 |
|
|
