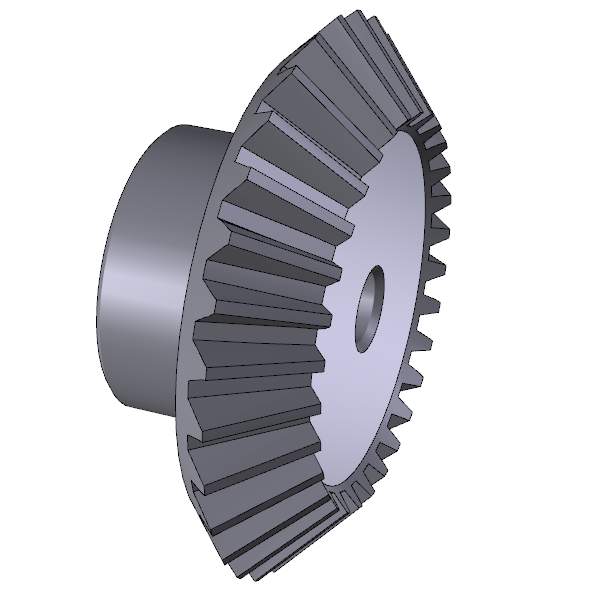

Coppie coniche ad assi normali - tipo B - esecuzione speciale
Bevel gear pairs with usual axes - type B - special execution
Kegelräder mit Normalachsen - Typ B - Spezialausführung
Couples coniques avec essieux normaux - type B - exècution spèciale
Engranajes conicos a ejes normales - tipo B - ejecución especial
Rapporto 1:3 / Ratio 1:3 / Untersetzung 1:3 / Rapport 1:3 / Relaciones 1:3
Pressure angle 20°
Material C45E
UNI EN 10083-1

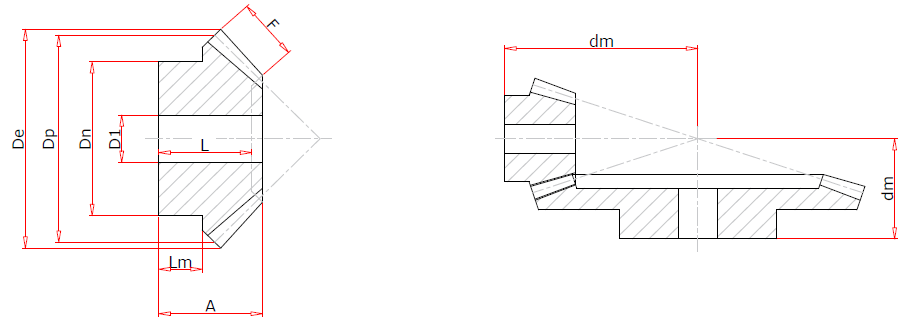

| Mod |
Teeth |
De |
Dp |
A |
F |
Dn |
D1 |
dm |
L |
Lm |
| 1 |
15 |
17.7 |
15.0 |
16.6 |
7.1 |
13.3 |
4 |
32 |
|
9.3 |
| 1 |
45 |
45.3 |
45.0 |
17.1 |
7.1 |
25.3 |
8 |
22 |
15 |
10 |
| 1.5 |
15 |
26.5 |
22.5 |
22.6 |
10.5 |
19.3 |
8 |
46 |
|
11.7 |
| 1.5 |
45 |
68.1 |
67.5 |
29.6 |
10.5 |
45.3 |
14 |
37 |
27 |
20 |
| 2 |
15 |
35.4 |
30.0 |
28.9 |
14.0 |
25.3 |
8 |
60 |
|
14.2 |
| 2 |
45 |
90.8 |
90.0 |
32.1 |
14.0 |
45.3 |
15 |
42 |
29 |
20 |
| 2.5 |
15 |
44.2 |
37.5 |
34.6 |
18.0 |
32.3 |
12 |
73 |
|
15.9 |
| 2.5 |
45 |
113.4 |
112.5 |
39.7 |
18.0 |
60.3 |
20 |
52 |
36 |
25 |
| 3 |
15 |
53.0 |
45.0 |
41.3 |
21.0 |
40.3 |
15 |
88 |
|
19.7 |
| 3 |
45 |
136.1 |
135.0 |
47.2 |
21.0 |
60.3 |
20 |
62 |
425 |
30 |
| 3.5 |
15 |
61.9 |
52.5 |
49.6 |
23.5 |
45.3 |
15 |
105 |
|
25.1 |
| 3.5 |
45 |
158.8 |
157.5 |
54.4 |
23.5 |
80.3 |
20 |
72 |
49 |
35 |
| 4 |
15 |
70.7 |
60.0 |
54.3 |
27.5 |
50.3 |
20 |
117 |
|
25.4 |
| 4 |
45 |
181.5 |
180.0 |
57.0 |
27.5 |
80.3 |
20 |
77 |
51 |
35 |
| 4.5 |
15 |
79.5 |
67.5 |
55.2 |
28.5 |
55.3 |
20 |
128 |
|
24.8 |
| 4.5 |
45 |
204.2 |
202.5 |
63.9 |
28.5 |
90.3 |
20 |
87 |
57 |
40 |
| 5 |
15 |
88.4 |
75.0 |
65.3 |
33.0 |
60.3 |
20 |
145 |
|
30 |
| 5 |
45 |
226.9 |
225.0 |
66.7 |
33.0 |
90.3 |
20 |
92 |
59 |
40 |
|
|
|
|
