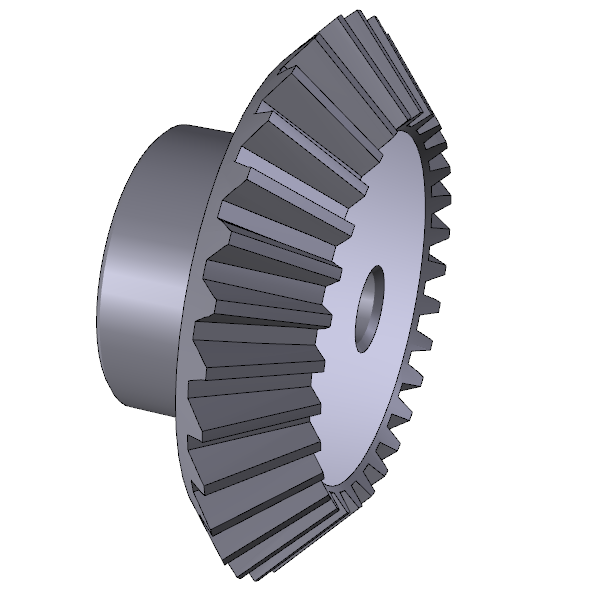

Bevel gear pairs with usual axes - type A
Coppie coniche ad assi normali - tipo A
Kegelräder mit Normalachsen - Typ A
Couples coniques avec essieux normaux - type A
Engranajes conicos a ejes normales - tipo A
Ratio 1:3
Pressure angle 20°
Material C45E
UNI EN 10083-1

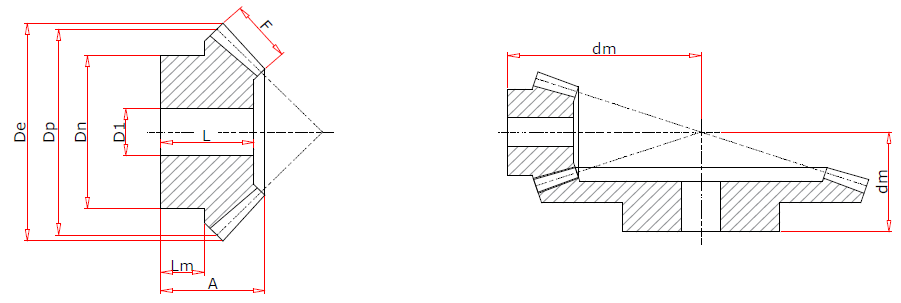

| Mod |
Teeth |
De |
Dp |
A |
F |
Dn |
D1 |
dm |
L |
Lm |
| 1.5 |
16 |
26.9 |
24 |
22 |
12 |
20 |
10 |
46.3 |
21 |
9.7 |
| 1.5 |
48 |
72.9 |
72 |
22 |
12 |
42 |
15 |
29.2 |
19 |
12 |
| 2 |
16 |
35.8 |
32 |
25.5 |
15 |
25 |
12 |
58.9 |
24 |
9.4 |
| 2 |
48 |
97.3 |
96 |
26 |
15 |
50 |
15 |
35.9 |
22 |
13 |
| 2.5 |
16 |
44.7 |
40 |
28 |
18 |
33 |
14 |
70.4 |
26 |
9.2 |
| 2.5 |
48 |
121.6 |
120 |
32 |
18 |
60 |
20 |
44.6 |
27 |
16 |
| 3 |
16 |
53.7 |
48 |
30 |
18 |
42 |
15 |
84.2 |
28 |
11.2 |
| 3 |
48 |
145.9 |
144 |
38 |
18 |
65 |
20 |
54.1 |
32 |
19 |
| 3.5 |
16 |
62.6 |
56 |
36.5 |
22 |
48 |
15 |
98.8 |
34 |
13.4 |
| 3.5 |
48 |
170.2 |
168 |
44 |
22 |
75 |
20 |
62.5 |
37 |
23 |
| 4 |
16 |
71.6 |
64 |
42 |
25 |
55 |
20 |
113.3 |
39 |
15.7 |
| 4 |
48 |
194.5 |
192 |
50 |
25 |
85 |
20 |
71.2 |
42 |
27 |
| 4.5 |
16 |
80.6 |
72 |
53 |
28 |
60 |
20 |
133.4 |
50 |
23.4 |
| 4.5 |
48 |
218.8 |
216 |
58 |
28 |
90 |
20 |
81.9 |
49 |
27 |
| 5 |
16 |
89.5 |
80 |
60 |
35 |
60 |
20 |
145.7 |
57 |
22.5 |
| 5 |
48 |
243.1 |
240 |
65 |
35 |
100 |
20 |
90.5 |
55 |
35 |
|
|
