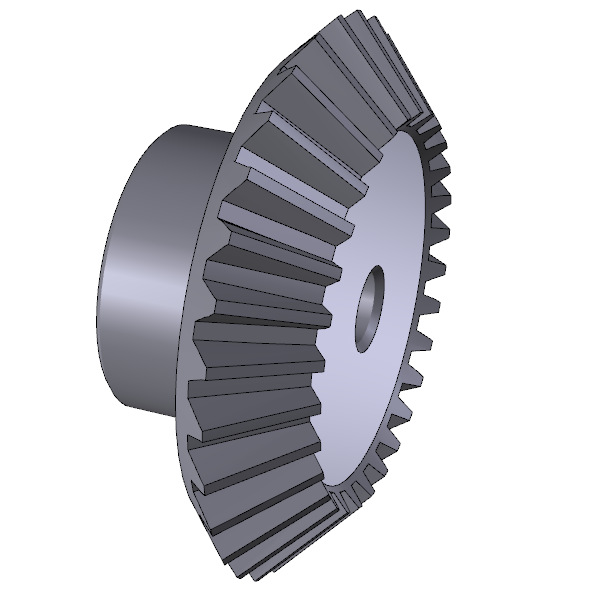

Coppie coniche ad assi normali - tipo B - esecuzione speciale
Bevel gear pairs with usual axes - type B - special execution
Kegelräder mit Normalachsen - Typ B - Spezialausführung
Couples coniques avec essieux normaux - type B - exècution spèciale
Engranajes conicos a ejes normales - tipo B - ejecución especial
Rapporto 1:2 / Ratio 1:2 / Untersetzung 1:2 / Rapport 1:2 / Relaciones 1:2
Pressure angle 20°
Material C45E
UNI EN 10083-1

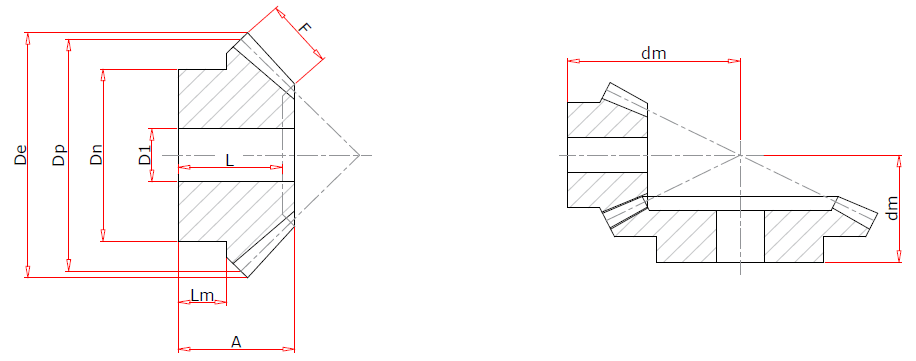

| Mod |
Teeth |
De |
Dp |
A |
F |
Dn |
D1 |
dm |
L |
Lm |
| 1 |
15 |
17.4 |
15.0 |
11.9 |
5 |
13.3 |
4 |
22 |
|
6.6 |
| 1 |
30 |
30.6 |
30.0 |
15.1 |
5 |
20.3 |
5 |
20 |
14 |
9 |
| 1.5 |
15 |
26.1 |
22.5 |
21.1 |
9 |
20.3 |
8 |
35 |
|
12 |
| 1.5 |
30 |
45.9 |
45.0 |
25.2 |
9 |
32.3 |
8 |
32 |
23 |
16 |
| 2 |
15 |
34.8 |
30.0 |
26 |
11.5 |
25.3 |
8 |
45 |
|
13.8 |
| 2 |
30 |
61.2 |
60.0 |
29.8 |
11.5 |
40.3 |
12 |
39 |
27 |
18 |
| 2.5 |
15 |
43.5 |
37.5 |
31.8 |
15 |
32.3 |
12 |
55 |
|
16.2 |
| 2.5 |
30 |
76.5 |
75.0 |
33.7 |
15 |
45.3 |
15 |
45 |
30 |
20 |
| 3 |
15 |
52.2 |
45.0 |
37.3 |
17 |
40.3 |
12 |
66 |
|
19.8 |
| 3 |
30 |
91.8 |
90.0 |
42.1 |
17 |
55.3 |
15 |
56 |
38 |
25 |
| 3.5 |
15 |
60.9 |
52.5 |
46.1 |
20.5 |
45.3 |
15 |
79 |
|
24.7 |
| 3.5 |
30 |
107.1 |
105.0 |
45 |
20.5 |
60.3 |
20 |
61 |
40 |
25 |
| 4 |
15 |
69.6 |
60.0 |
48.6 |
22.5 |
50.3 |
20 |
87 |
|
24.6 |
| 4 |
30 |
122.3 |
120.0 |
57.3 |
22.5 |
80.3 |
20 |
76 |
52 |
35 |
| 4.5 |
15 |
78.3 |
67.5 |
51.4 |
26 |
60.3 |
20 |
94 |
|
24.7 |
| 4.5 |
30 |
137.6 |
135.0 |
60.3 |
26 |
80.3 |
20 |
81 |
53 |
35 |
| 5 |
15 |
87.0 |
75.0 |
57.6 |
30 |
60.3 |
20 |
104 |
|
25.3 |
| 5 |
30 |
152.9 |
150.0 |
62.5 |
30 |
80.3 |
20 |
85 |
56 |
35 |
|
|
|
