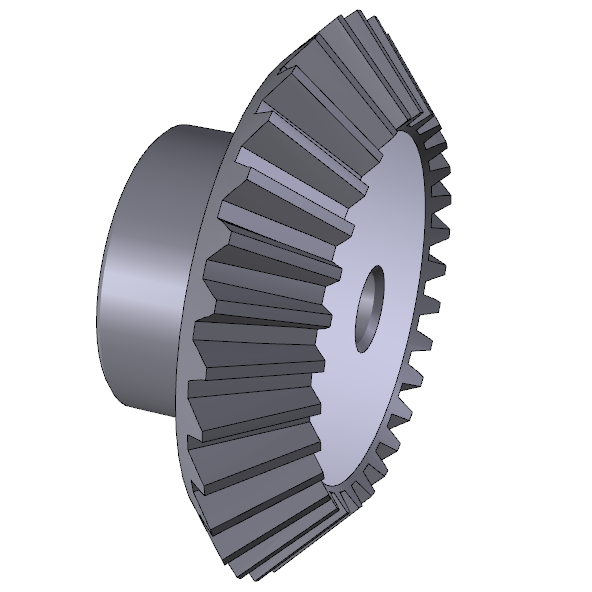

Coppie coniche ad assi normali - tipo B - esecuzione speciale
Bevel gear pairs with usual axes - type B - special execution
Kegelräder mit Normalachsen - Typ B - Spezialausführung
Couples coniques avec essieux normaux - type B - exècution spèciale
Engranajes conicos a ejes normales - tipo B - ejecución especial
Rapporto 1:1 / Ratio 1:1 / Untersetzung 1:1 / Rapport 1:1 / Relaciones 1:1
Pressure angle 20°
Material C45E
UNI EN 10083-1

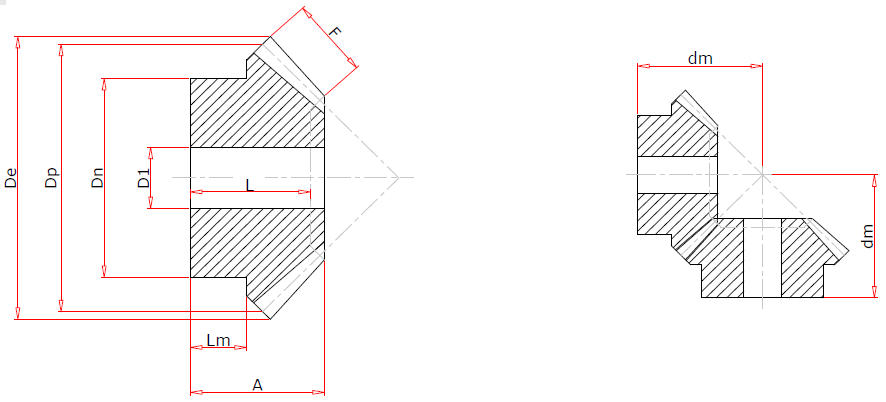

| Mod |
Teeth |
De |
Dp |
A |
F |
Dn |
D1 |
dm |
L |
Lm |
| 1 |
16 |
17.4 |
16.0 |
11.2 |
4 |
13.3 |
4 |
16 |
|
6.7 |
| 1 |
19 |
20.4 |
19.0 |
11.8 |
4 |
15.3 |
4 |
18 |
|
6.6 |
| 1 |
22 |
23.4 |
22.0 |
12.8 |
4.7 |
16.3 |
5 |
20 |
|
6.1 |
| 1 |
26 |
27.4 |
26.0 |
13.3 |
5.5 |
20.3 |
5 |
22 |
|
7 |
| 1 |
30 |
31.4 |
30.0 |
16.0 |
6.4 |
20.3 |
5 |
26 |
|
8 |
| 1.5 |
16 |
26.1 |
24.0 |
18.9 |
6 |
20.3 |
8 |
26 |
|
12.2 |
| 1.5 |
19 |
30.6 |
28.5 |
21.3 |
7 |
20.3 |
8 |
30 |
|
11.6 |
| 1.5 |
22 |
35.1 |
33.0 |
22.5 |
7.5 |
25.3 |
8 |
33 |
|
12.7 |
| 1.5 |
26 |
41.1 |
39.0 |
23.2 |
8.5 |
28.3 |
8 |
36 |
|
12 |
| 1.5 |
30 |
47.1 |
45.0 |
27.2 |
10 |
30.0 |
12 |
42 |
|
12.1 |
| 2 |
16 |
34.8 |
32.0 |
23.5 |
8 |
25.3 |
8 |
33 |
|
13.6 |
| 2 |
19 |
40.8 |
38.0 |
24.2 |
9 |
25.3 |
8 |
36 |
|
12 |
| 2 |
22 |
46.8 |
44.0 |
27.9 |
10 |
30.3 |
10 |
42 |
|
14 |
| 2 |
26 |
54.8 |
52.0 |
31.4 |
12 |
35.3 |
12 |
48 |
|
13.7 |
| 2 |
30 |
62.8 |
60.0 |
34.1 |
13 |
40.3 |
12 |
54 |
|
17 |
| 2.5 |
16 |
43.5 |
40.0 |
28.1 |
10 |
30.3 |
12 |
40 |
|
15.2 |
| 2.5 |
19 |
51.0 |
47.5 |
27.1 |
11 |
35.3 |
12 |
42 |
|
13 |
| 2.5 |
22 |
58.5 |
55.0 |
30.1 |
12 |
45.3 |
12 |
48 |
|
15.7 |
| 2.5 |
26 |
68.5 |
65.0 |
33.2 |
15 |
45.3 |
15 |
54 |
|
16 |
| 2.5 |
30 |
78.5 |
75.0 |
39.0 |
16 |
50.3 |
15 |
64 |
|
20 |
| 3 |
16 |
52.2 |
48.0 |
31.7 |
12 |
40.3 |
12 |
46 |
|
18.1 |
| 3 |
19 |
61.2 |
57.0 |
36.0 |
13 |
40.3 |
14 |
54 |
|
17.1 |
| 3 |
22 |
70.2 |
66.0 |
36.9 |
15 |
50.3 |
15 |
58 |
|
17.1 |
| 3 |
26 |
82.2 |
78.0 |
38.4 |
17 |
50.3 |
15 |
64 |
|
18 |
| 3 |
30 |
94.2 |
90.0 |
43.8 |
19 |
60.3 |
20 |
74 |
|
22 |
| 3.5 |
16 |
60.9 |
56.0 |
36.4 |
14 |
45.3 |
15 |
53 |
|
19.8 |
| 3.5 |
19 |
71.4 |
66.5 |
36.9 |
15 |
50.3 |
15 |
58 |
|
18 |
| 3.5 |
22 |
81.9 |
77.0 |
39.1 |
17 |
55.3 |
15 |
64 |
|
18 |
| 3.5 |
26 |
95.9 |
91.0 |
42.2 |
20 |
60.3 |
20 |
72 |
|
20 |
| 3.5 |
30 |
110.0 |
105.0 |
47.3 |
23 |
70.3 |
20 |
82 |
43 |
22 |
| 4 |
16 |
69.7 |
64.0 |
44.3 |
15 |
50.3 |
15 |
64 |
|
25.1 |
| 4 |
19 |
81.7 |
76.0 |
44.4 |
18 |
55.3 |
18 |
68 |
|
22 |
| 4 |
22 |
93.7 |
88.0 |
45.9 |
20 |
60.3 |
18 |
74 |
|
22 |
| 4 |
26 |
109.7 |
104.0 |
48.0 |
23 |
70.3 |
20 |
82 |
43 |
22 |
| 4 |
30 |
125.7 |
120.0 |
54.2 |
26 |
80.3 |
20 |
94 |
49 |
25 |
| 4.5 |
16 |
78.4 |
72.0 |
46.3 |
17.5 |
55.3 |
18 |
68 |
|
25 |
| 4.5 |
19 |
91.8 |
85.5 |
47.3 |
20 |
60.3 |
20 |
74 |
|
25 |
| 4.5 |
22 |
105.3 |
99.0 |
50.1 |
22 |
70.3 |
20 |
82 |
|
25 |
| 4.5 |
26 |
123.3 |
117.0 |
53.2 |
25 |
75.3 |
20 |
92 |
45 |
25 |
| 4.5 |
30 |
141.4 |
135.0 |
60.0 |
29 |
80.3 |
20 |
105 |
54 |
28 |
| 5 |
16 |
87.1 |
80.0 |
48.9 |
18 |
60.3 |
20 |
74 |
|
24.1 |
| 5 |
19 |
102.1 |
95.0 |
52.2 |
22 |
60.3 |
20 |
82 |
|
25 |
| 5 |
22 |
117.1 |
110.0 |
58.2 |
24 |
80.3 |
20 |
94 |
52 |
30 |
| 5 |
26 |
137.1 |
130.0 |
62.7 |
29 |
80.3 |
20 |
105 |
57 |
30 |
| 5 |
30 |
157.1 |
150.0 |
68.9 |
32 |
80.3 |
20 |
119 |
63 |
35 |
|
|
