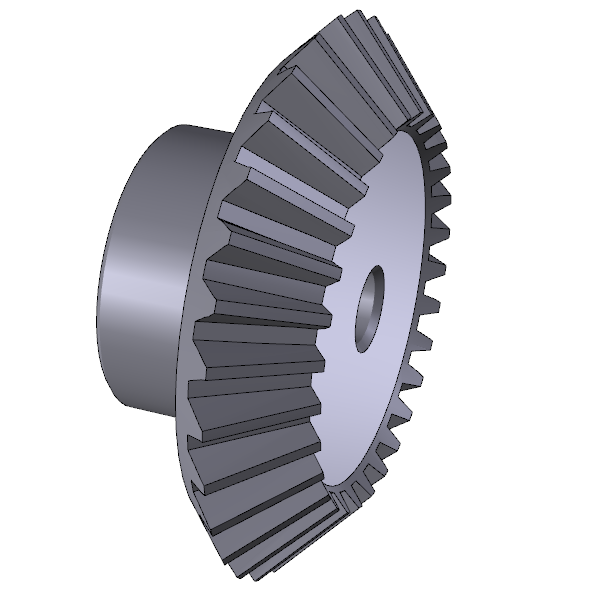

Bevel gear pairs with usual axes - type A
Coppie coniche ad assi normali - tipo A
Kegelräder mit Normalachsen - Typ A
Couples coniques avec essieux normaux - type A
Engranajes conicos a ejes normales - tipo A
Ratio 1:1
Pressure angle 20°
Material C45E
UNI EN 10083-1

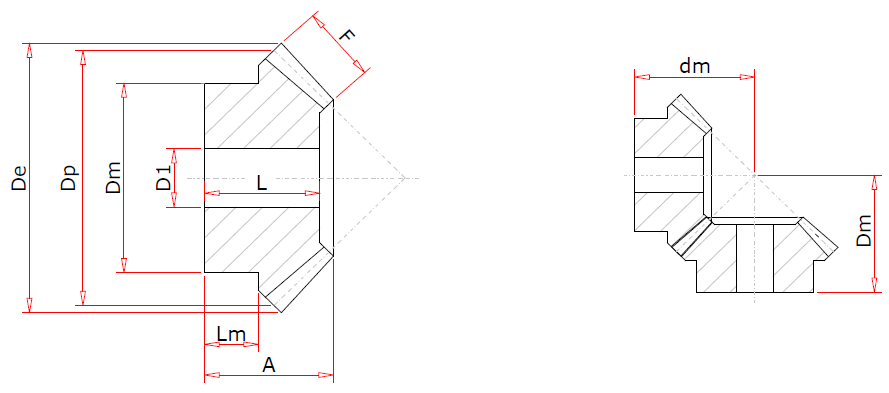

| Mod |
Teeth |
De |
Dp |
A |
F |
Dn |
D1 |
dm |
L |
Lm |
| 1.5 |
16 |
26.1 |
24.0 |
18.0 |
8 |
18 |
8 |
23.8 |
17.0 |
8.9 |
| 1.5 |
20 |
32.1 |
30.0 |
20.0 |
8 |
22 |
10 |
28.7 |
18.0 |
9.8 |
| 1.5 |
22 |
35.1 |
33.0 |
20.0 |
8 |
25 |
10 |
30.2 |
18.0 |
9.7 |
| 1.5 |
25 |
39.6 |
37.5 |
23.0 |
8 |
28 |
10 |
35.4 |
21.0 |
12.0 |
| 1.5 |
30 |
47.1 |
45.0 |
25.0 |
10 |
30 |
12 |
39.7 |
22.5 |
12.0 |
| 2 |
16 |
34.8 |
32.0 |
20.0 |
9 |
25 |
10 |
28.8 |
17.0 |
9.3 |
| 2 |
20 |
42.8 |
40.0 |
25.0 |
12 |
32 |
10 |
35.7 |
22.0 |
12.0 |
| 2 |
22 |
46.8 |
44.0 |
25.0 |
12 |
36 |
10 |
37.7 |
22.0 |
11.7 |
| 2 |
25 |
52.8 |
50.0 |
28.0 |
14 |
40 |
12 |
42.3 |
25.0 |
12.3 |
| 2 |
30 |
62.8 |
60.0 |
30.0 |
16 |
50 |
12 |
47.8 |
27.0 |
12.8 |
| 2.5 |
16 |
43.5 |
40.0 |
25.5 |
10 |
32 |
12 |
37.3 |
22.0 |
13.3 |
| 2.5 |
20 |
53.5 |
50.0 |
30.5 |
12 |
40 |
12 |
45.9 |
27.0 |
16.0 |
| 2.5 |
22 |
58.5 |
55.0 |
30.5 |
12 |
45 |
12 |
48.3 |
27.0 |
15.9 |
| 2.5 |
25 |
66.0 |
62.5 |
33.5 |
15 |
50 |
15 |
53.0 |
30.0 |
16.0 |
| 2.5 |
30 |
78.5 |
75.0 |
35.5 |
18 |
55 |
15 |
59.1 |
32.0 |
16.0 |
| 3 |
16 |
52.2 |
48.0 |
30.0 |
12 |
40 |
15 |
44.2 |
26.0 |
16.2 |
| 3 |
20 |
64.2 |
60.0 |
35.0 |
18 |
45 |
15 |
51.1 |
31.0 |
13.6 |
| 3 |
22 |
70.2 |
66.0 |
35.0 |
18 |
50 |
15 |
54.0 |
31.0 |
13.0 |
| 3 |
25 |
79.2 |
75.0 |
38.0 |
20 |
55 |
15 |
60.0 |
34.0 |
16.0 |
| 3 |
30 |
94.2 |
90.0 |
40.0 |
22 |
60 |
20 |
68.1 |
36.0 |
19.0 |
| 3.5 |
16 |
60.9 |
56.0 |
35.5 |
16 |
45 |
15 |
50.8 |
31.0 |
17.2 |
| 3.5 |
20 |
74.9 |
70.0 |
40.5 |
22 |
55 |
15 |
58.6 |
36.0 |
19.0 |
| 3.5 |
22 |
81.9 |
77.0 |
40.5 |
22 |
60 |
15 |
62.0 |
36.0 |
18.0 |
| 3.5 |
25 |
92.4 |
87.5 |
43.5 |
26 |
65 |
20 |
67.5 |
39.0 |
18.0 |
| 3.5 |
30 |
109.9 |
105.0 |
45.5 |
30 |
70 |
20 |
75.4 |
41.0 |
17.0 |
| 4 |
16 |
69.6 |
64.0 |
38.0 |
18 |
50 |
15 |
55.6 |
33.0 |
16.6 |
| 4 |
20 |
85.6 |
80.0 |
43.0 |
25 |
60 |
18 |
63.8 |
38.0 |
18.0 |
| 4 |
22 |
93.6 |
88.0 |
43.0 |
25 |
65 |
18 |
67.7 |
38.0 |
18.0 |
| 4 |
25 |
105.6 |
100.0 |
45.0 |
28 |
70 |
20 |
73.5 |
40.0 |
18.0 |
| 4 |
30 |
125.6 |
120.0 |
48.0 |
32 |
80 |
20 |
83.7 |
43.0 |
16.0 |
| 4.5 |
16 |
78.3 |
72.0 |
43.0 |
20 |
55 |
18 |
63.0 |
37.0 |
18.5 |
| 4.5 |
20 |
96.3 |
90.0 |
48.0 |
28 |
65 |
20 |
71.5 |
42.0 |
18.0 |
| 4.5 |
22 |
105.3 |
99.0 |
48.0 |
28 |
70 |
20 |
75.8 |
42.0 |
18.0 |
| 4.5 |
25 |
118.8 |
112.5 |
50.0 |
32 |
75 |
20 |
81.8 |
44.0 |
18.0 |
| 4.5 |
30 |
141.3 |
135.0 |
53.0 |
35 |
90 |
20 |
93.8 |
47.0 |
17.0 |
| 5 |
16 |
87.0 |
80.0 |
45.5 |
22 |
60 |
20 |
67.8 |
39.0 |
17.8 |
| 5 |
20 |
107.1 |
100.0 |
50.5 |
30 |
70 |
20 |
77.3 |
44.0 |
18.5 |
| 5 |
22 |
117.1 |
110.0 |
50.5 |
30 |
80 |
20 |
82.2 |
44.0 |
18.5 |
| 5 |
25 |
132.1 |
125.0 |
54.5 |
35 |
90 |
20 |
90.2 |
48.0 |
18.5 |
| 5 |
30 |
157.1 |
150.0 |
56.5 |
38 |
110 |
20 |
102.4 |
50.0 |
18.0 |
|
