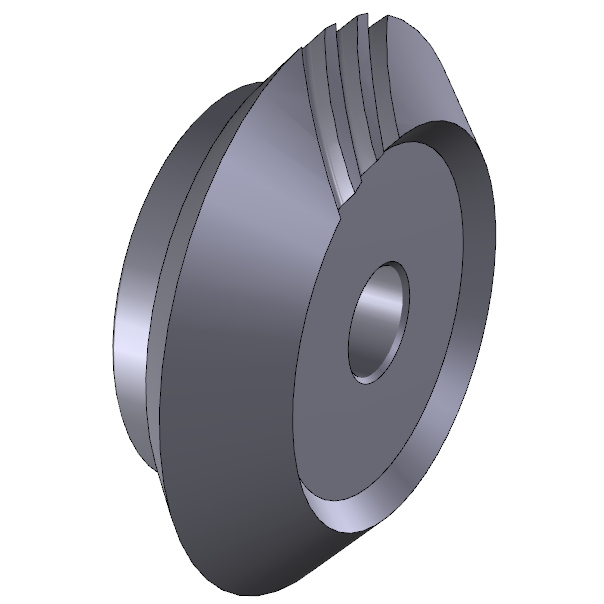

CONICAL SPIRAL-TOOTHED GEARS
RATIO 1:3
Pressure angle 20°
Material C45E
UNI EN 10083-1
Minor Gear With Left Spiral
Greater Gear With Right Spiral

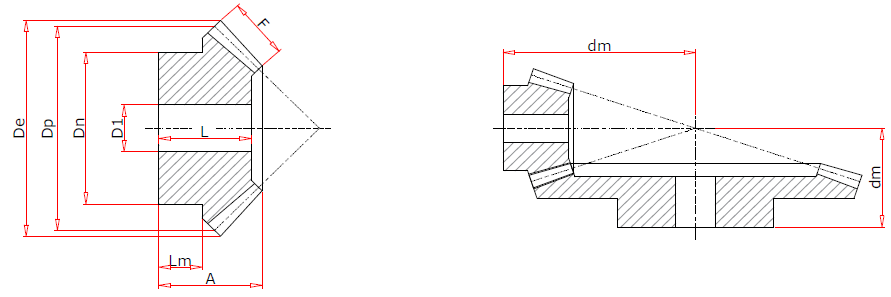

| Mod |
Teeth |
De |
Dp |
A |
F |
Dn |
D1 |
dm |
L |
Lm |
| 2 |
16 |
36.5 |
32 |
25.7 |
15 |
25 |
12 |
59 |
24 |
9.7 |
| 2 |
48 |
96.6 |
96 |
25.3 |
15 |
50 |
15 |
36 |
21.5 |
13 |
| 2.5 |
16 |
45.7 |
40 |
27.7 |
18 |
33 |
14 |
70 |
26 |
8.9 |
| 2.5 |
48 |
120.8 |
120 |
31.4 |
18 |
60 |
20 |
45 |
26.5 |
16 |
| 3 |
16 |
54.8 |
48 |
29.9 |
18 |
42 |
15 |
84 |
28 |
11 |
| 3 |
48 |
145 |
144 |
36.7 |
18 |
65 |
20 |
54 |
31 |
19 |
| 3.5 |
16 |
63.9 |
56 |
36.8 |
22 |
48 |
15 |
99 |
34 |
13.6 |
| 3.5 |
48 |
169.1 |
168 |
43.1 |
22 |
75 |
20 |
63 |
36 |
23 |
| 4 |
16 |
73.1 |
64 |
41.8 |
25 |
55 |
20 |
113 |
39 |
15.5 |
| 4 |
48 |
193.3 |
192 |
49.2 |
25 |
85 |
22 |
72 |
41 |
27 |
| 4.5 |
16 |
82.2 |
72 |
53.8 |
28 |
60 |
20 |
134 |
50 |
24 |
| 4.5 |
48 |
217.4 |
216 |
56.3 |
28 |
90 |
25 |
82 |
47.5 |
27 |
| 5 |
16 |
91.4 |
80 |
60.5 |
35 |
60 |
20 |
146 |
57 |
22.7 |
| 5 |
48 |
241.6 |
240 |
63.5 |
35 |
100 |
28 |
91 |
53.5 |
35 |
|
|
|
|
|
|
