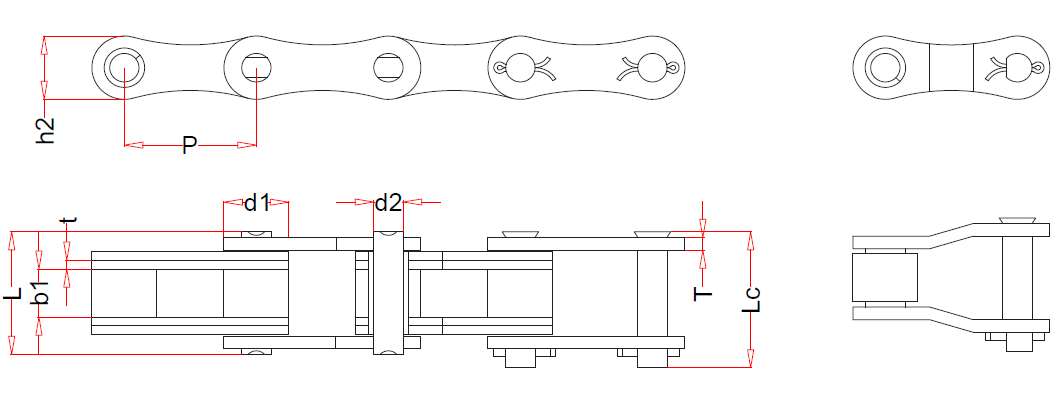

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth |
Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter |
||
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Q min | Q0 | q | ||
| mm | mm | mm | mm | mm | mm | mm | kN | lbf | kN | kg/m | ||
| CA650F1 | 50.80 | 25.0 | 19.0 | 11.28 | 49.2 | 53.7 | 25.0 | 3.5/5.0 | 138 | 27273 | 140.0 | 4.36 |
