Home > All Collections > Sprockets and Plate Wheels > BS Sprocket > BS Idler Sprockets > BS IDLER SPROCKETS

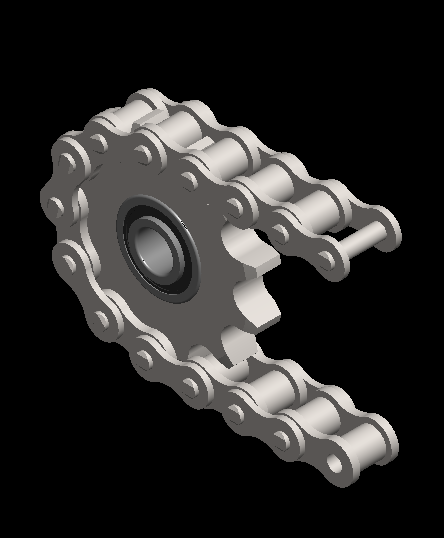

BS IDLER SPROCKETS

GET A QUOTE

Description

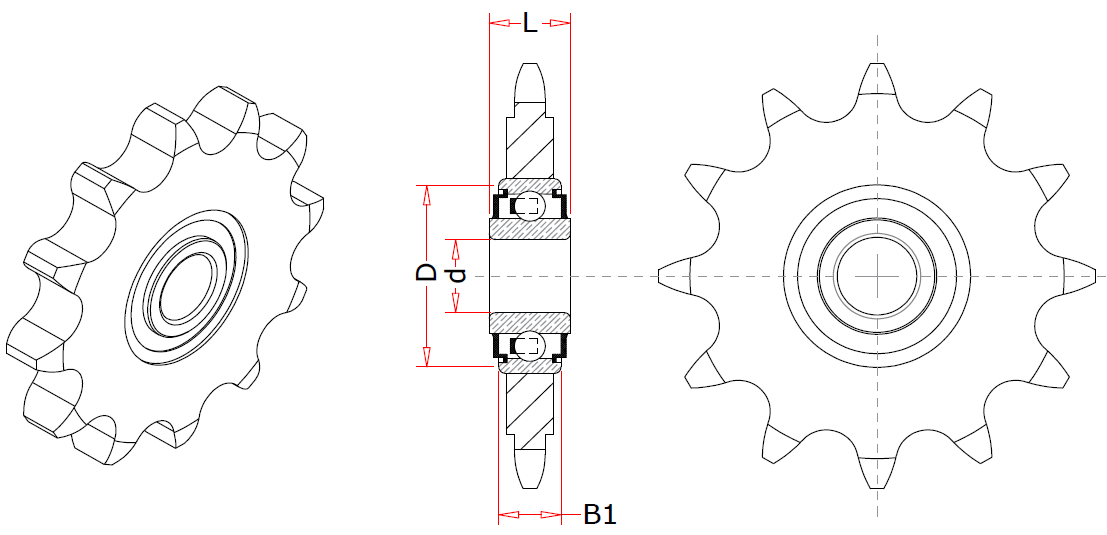

Catalog	Chain	z	pitch dia	d			D	L	B1	q
No.	no.		[mm]	[mm]			[mm]	[mm]	[mm]	ca.
No.	no.		[mm]	[mm]			[mm]	[mm]	[mm]	[kg/pc]
05B1023S	05B-1	23	58.75	16	+0.26	+0.13	40	18.30	12	0.13
06B1020S	06B-1	20	60.89	16	+0.26	+0.13	40	18.30	12	0.14
06B1021S	06B-1	21	63.91	16	+0.26	+0.13	40	18.30	12	0.15
081018S	081	18	73.14	16	+0.26	+0.13	40	18.30	12	0.18
083016S	083	16	65.10	16	+0.26	+0.13	40	18.30	12	0.16
083018S	083	18	73.14	16	+0.26	+0.13	40	18.30	12	0.20
08B1014S	08B-1	14	57.07	16	+0.26	+0.13	40	18.30	12	0.13
08B1015S	08B-1	15	61.08	16	+0.26	+0.13	40	18.30	12	0.15
08B1016S	08B-1	16	65.10	16	+0.26	+0.13	40	18.30	12	0.17
08B1018S	08B-1	18	73.14	16	+0.26	+0.13	40	18.30	12	0.22
08B1020S	08B-1	20	81.18	16	+0.26	+0.13	40	18.30	12	0.27
08B1021S	08B-1	21	85.21	16	+0.26	+0.13	40	18.30	12	0.30
10B1013S	10B-1	13	66.34	16	+0.26	+0.13	40	18.30	12	0.20
10B1014S	10B-1	14	71.34	16	+0.26	+0.13	40	18.30	12	0.24
10B1015S	10B-1	15	76.34	16	+0.26	+0.13	40	18.30	12	0.27
10B1016S	10B-1	16	81.37	16	+0.26	+0.13	40	18.30	12	0.32
10B1017S	10B-1	17	86.39	16	+0.26	+0.13	40	18.30	12	0.36
10B1018S	10B-1	18	91.42	16	+0.26	+0.13	40	18.30	12	0.40
10B1021S	10B-1	21	106.51	16	+0.26	+0.13	40	18.30	12	0.54
12B1012S	12B-1	12	73.60	16	+0.26	+0.13	40	18.30	12	0.29
12B1013S	12B-1	13	79.60	16	+0.26	+0.13	40	18.30	12	0.34
12B1015S	12B-1	15	91.62	16	+0.26	+0.13	40	18.30	12	0.47
12B1016S	12B-1	16	97.65	16	+0.26	+0.13	40	18.30	12	0.53
16B1012S	16B-1	12	98.14	20	+0.10	+0.00	47	17.70	14	0.72
16B1015S	16B-1	15	122.17	20	+0.10	+0.00	47	17.70	14	1.13
16B1017S	16B-1	17	138.23	20	+0.10	+0.00	47	17.70	14	1.45
20B1013S	20B-1	13	132.67	25	+0.10	+0.00	52	21.00	15	1.64
