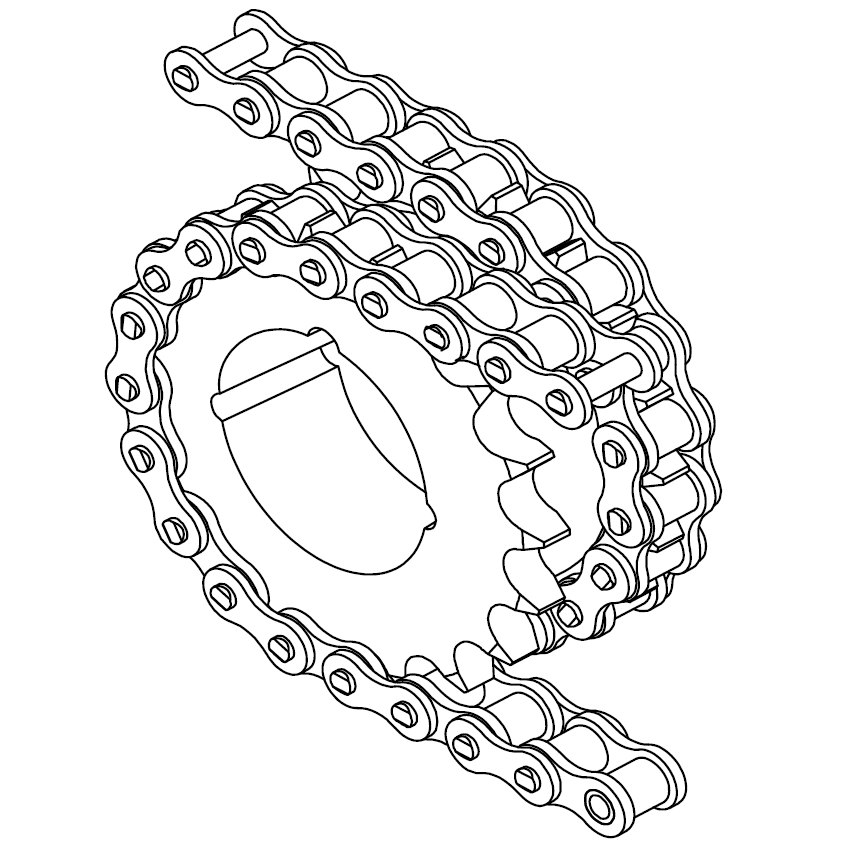

ansi duplex plate wheels for two single chains

Description

Corone doppie per due catene semplici
Duplex plate wheels for two single chains
Zweifach-Scheiben für zwei Einfach-Ketten
Disques doubles pour deux chaines simples
Discos dobles para dos cadenas simples

ANSI Sprocket |Double Simplex|Taper Bore
ANSI 40-1 · 12,70 mm (1/2") pitch
ANSI 50-1 · 15,88 mm (5/8") pitch
ANSI 60-1 · 19,05 mm (3/4") pitch
ANSI 80-1 · 25,40 mm (1") pitch
ANSI 100-1 · 31,75 mm (11/4") pitch

Pitch		Z	Outside Dia	Pitch Dia	Type	Bushing No.	Bore						Plate thickness	kg/pc	Catalog No.
			Outside Dia	Pitch Dia			Bore						Plate thickness

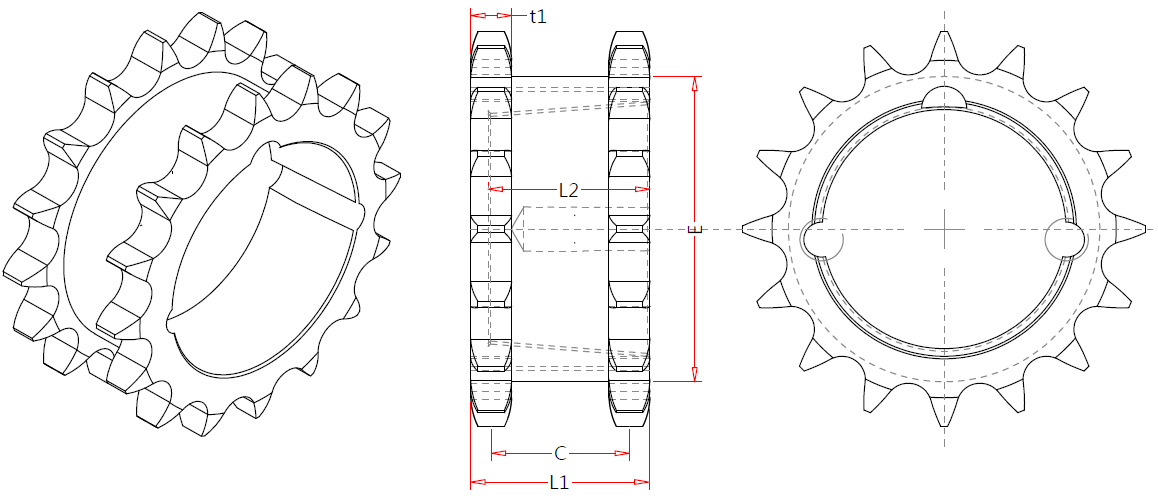

			OD	PD			Min.	Max.	L1	C	E	L2	t1
mm	in.		mm	mm	--		mm	mm	mm	mm	mm	mm	mm	kg
12.70	1/2	18	79.8	73.2	A	1215	12.70	31.75	35.72	28.58	58.74	38.10	7.2	0.50	40	DS	TL	18
		19	83.8	77.2	A	1215	12.70	31.75	35.72	28.58	63.50	38.10	7.2	0.50	40	DS	TL	19
		20	87.9	81.3	A	1215	12.70	31.75	35.72	28.58	66.68	38.10	7.2	0.60	40	DS	TL	20
		21	92.0	85.3	A	1615	12.70	41.28	35.72	28.58	70.64	38.10	7.2	0.60	40	DS	TL	21
		23	100.1	93.2	A	1615	12.70	41.28	35.72	28.58	78.58	38.10	7.2	0.70	40	DS	TL	23
		24	104.1	97.3	A	1615	12.70	41.28	35.72	28.58	82.95	38.10	7.2	0.80	40	DS	TL	24
15.88	5/8	16	89.4	81.3	A	1215	12.70	41.28	42.07	33.34	63.10	38.10	8.7	1.40	50	DS	TL	16
		17	94.5	86.4	A	1615	12.70	41.28	42.07	33.34	68.26	38.10	8.7	0.80	50	DS	TL	17
		18	99.6	91.4	A	1615	12.70	41.28	42.07	33.34	73.42	38.10	8.7	1.00	50	DS	TL	18
		19	104.7	96.5	A	1615	12.70	41.28	42.07	33.34	78.18	38.10	8.7	1.20	50	DS	TL	19
		20	109.7	101.6	A	1615	12.70	41.28	42.07	33.34	83.34	38.10	8.7	2.30	50	DS	TL	20
		21	114.8	106.4	A	2012	12.70	50.80	42.07	33.34	88.50	31.75	8.7	1.50	50	DS	TL	21
		23	125.0	116.6	A	2012	12.70	50.80	42.07	33.34	98.82	31.75	8.7	1.70	50	DS	TL	23
		24	130.1	121.7	A	2012	12.70	50.80	42.07	33.34	103.58	31.75	8.7	1.90	50	DS	TL	24
19.05	3/4	16	107.2	97.5	A	1615	12.70	41.28	49.21	37.70	75.80	38.10	11.7	2.00	60	DS	TL	16
		17	113.3	101.6	A	1615	12.70	41.28	49.21	37.70	81.76	38.10	11.7	2.00	60	DS	TL	17
		18	119.4	109.7	A	2012	12.70	50.80	49.21	37.70	88.11	31.75	11.7	2.30	60	DS	TL	18
		19	125.7	115.8	A	2012	12.70	50.80	49.21	37.70	94.06	31.75	11.7	2.60	60	DS	TL	19
		20	131.8	121.7	A	2517	12.70	63.50	49.21	37.70	100.41	44.45	11.7	2.50	60	DS	TL	20
		21	137.9	127.8	A	2517	12.70	63.50	49.21	37.70	106.36	44.45	11.7	2.90	60	DS	TL	21
		23	150.1	140.0	A	2517	12.70	63.50	49.21	37.70	118.67	44.45	11.7	3.30	60	DS	TL	23
		24	156.2	146.1	A	2517	12.70	63.50	49.21	37.70	131.76	44.45	11.7	3.70	60	DS	TL	24
25.40	1	17	151.1	138.2	A	2517	12.70	63.50	55.56	41.28	109.54	44.45	14.6	3.50	80	DS	TL	17
		18	159.3	146.3	A	2517	12.70	63.50	55.56	41.28	120.65	44.45	14.6	4.00	80	DS	TL	18
		19	167.4	154.4	A	3020	23.81	76.20	55.56	41.28	125.81	50.80	14.6	4.40	80	DS	TL	19
		20	175.5	162.3	A	3020	23.81	76.20	55.56	41.28	134.14	50.80	14.6	4.50	80	DS	TL	20
		21	183.9	170.4	A	3020	23.81	76.20	55.56	41.28	142.08	50.80	14.6	5.40	80	DS	TL	21
		22	192.0	178.6	A	3020	23.81	76.20	55.56	41.28	142.08	50.80	14.6	5.90	80	DS	TL	22
		23	200.2	186.4	A	3020	23.81	76.20	55.56	41.28	158.35	50.80	14.6	6.60	80	DS	TL	23
31.75	1 1/4	15	168.4	152.7	A	2517	19.05	63.50	68.26	50.80	116.68	44.45	17.6	5.70	100	DS	TL	15
		16	178.6	162.8	A	2517	19.05	63.50	68.26	50.80	127.00	44.45	17.6	5.90	100	DS	TL	16
		17	189.0	172.7	A	3020	23.81	76.20	68.26	50.80	137.32	50.80	17.6	6.40	100	DS	TL	17
		18	199.1	182.9	A	3020	23.81	76.20	68.26	50.80	147.24	50.80	17.6	7.30	100	DS	TL	18
		19	209.3	192.8	A	3020	23.81	76.20	68.26	50.80	157.56	50.80	17.6	9.10	100	DS	TL	19
		20	219.5	203.0	A	3020	23.81	76.20	68.26	50.80	167.88	44.45	17.6	12.50	100	DS	TL	20
		21	229.6	213.1	A	3020	23.81	76.20	68.26	50.80	177.80	50.80	17.6	12.50	100	DS	TL	21
