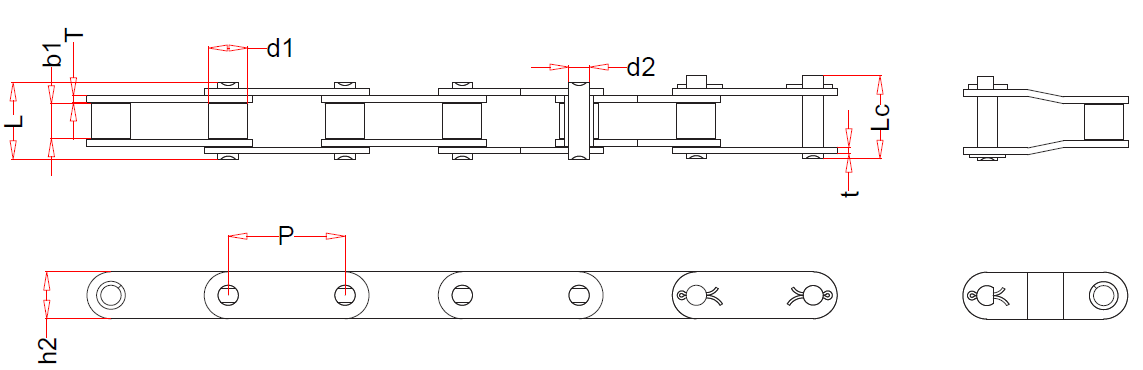

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth |
Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter |
||
| P | d1 max | b1 min | d2 max | L | Lc max | h2 max | t/T max | Q | Q0 | q | ||
| mm | mm | mm | mm | mm | mm | mm | kN | lbf | kN | kg/m | ||
| 55VD | 41.4 | 17.90 | 23.00 | 8.22 | 39.3 | 42.4 | 20.0 | 2.8 | 42.0 | 9546 | 45.0 | 2.22 |
