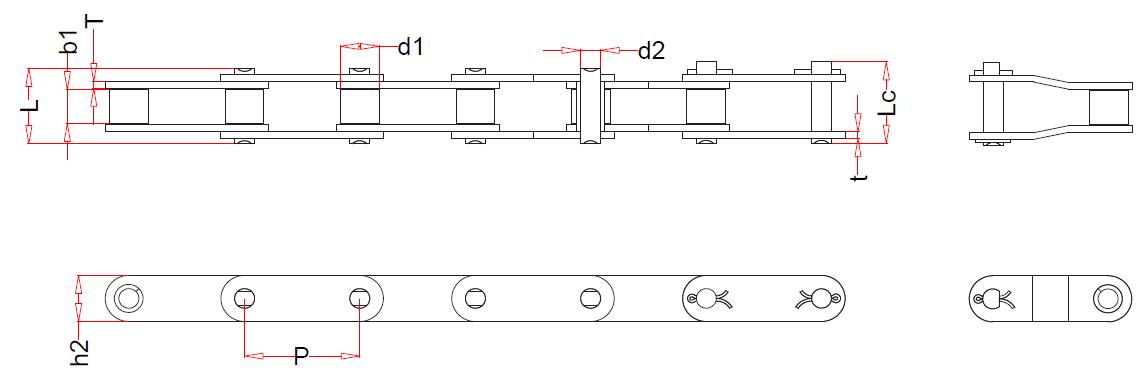

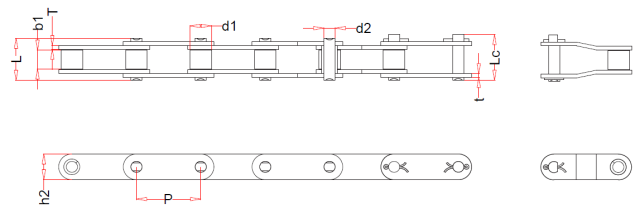

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth |
Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter |
||
| P | d1 max | b1 min | d2 max | L | Lc max | h2 max | t/T max | Q min | Q0 | q | ||
| mm | mm | mm | mm | mm | mm | mm | kN | lbf | kN | kg/m | ||
| 38.4R | 38.4 | 15.88 | 19.05 | 6.92 | 33.8 | 36.4 | 17.30 | 2.50 | 33.00 | 7480 | 41.2 | 1.70 |
| 38.4V | 38.4 | 15.88 | 18.00 | 6.92 | 35.0 | 38.0 | 17.30 | 3.00 | 40.00 | 9091 | 50.0 | 1.83 |
| 38.4VB | 38.4 | 15.88 | 19.05 | 8.28 | 36.1 | 39.4 | 20.50 | 3.00 | 50.00 | 11363 | 62.5 | 2.17 |
