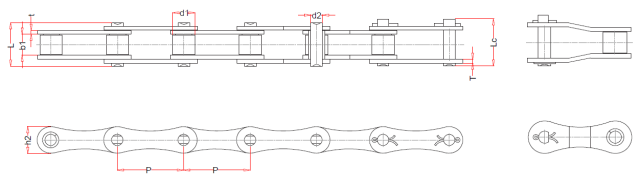

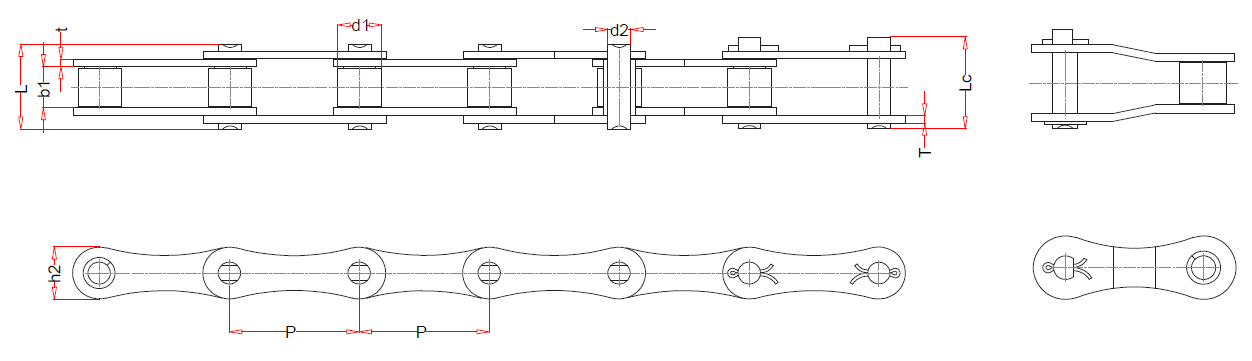

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth |
Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter |
||
| P | d1 max | b1 min | d2 max | L | Lc max | h2 max | t/T max | Q | Q0 | q | ||
| mm | mm | mm | mm | mm | mm | mm | kN | lbf | kN | kg/m | ||
| S32 | 29.21 | 11.43 | 15.88 | 4.45 | 26.7 | 28.8 | 13.2 | 1.8 | 8.00 | 1818 | 21.6 | 0.86 |
| S32V | 29.21 | 11.43 | 15.88 | 5.08 | 27.3 | 29.7 | 13.5 | 2.1 | 25.00 | 5680 | 27.0 | 0.96 |
| S42 | 34.93 | 14.27 | 19.05 | 7.00 | 34.3 | 37.0 | 19.8 | 2.8 | 27.00 | 6136 | 50.8 | 1.60 |
| S42F2 | 34.93 | 14.27 | 19.05 | 7.00 | 34.3 | 37.0 | 19.8 | 2.5/3 | 27.00 | 6137 | 50.8 | 1.82 |
| S45 | 41.40 | 15.24 | 22.23 | 5.72 | 37.7 | 40.4 | 17.3 | 2.8 | 18.00 | 4091 | 36.1 | 1.66 |
| S45H | 41.40 | 15.24 | 22.23 | 7.14 | 39.5 | 42.2 | 17.3 | 3.0 | 36.75 | 8267 | 45.0 | 2.00 |
| S51 | 38.10 | 15.24 | 16.00 | 5.72 | 30.9 | 33.8 | 17.3 | 2.8 | 28.00 | 6364 | 30.8 | 1.48 |
| S52 | 38.10 | 15.24 | 22.23 | 5.72 | 37.7 | 40.4 | 17.3 | 2.8 | 18.00 | 4091 | 36.1 | 1.68 |
| S52F10 | 38.10 | 14.00 | 22.00 | 6.92 | 36.5 | 39.1 | 18.2 | 2.5 | 23.50 | 5283 | 28.2 | 1.60 |
| S52L | 38.10 | 15.24 | 16.40 | 5.72 | 30.9 | 33.8 | 16.5 | 2.5 | 29.20 | 6636 | 32.2 | 1.36 |
| S52LV | 38.10 | 15.88 | 17.80 | 6.94 | 33.8 | 37.0 | 16.7 | 3.0 | 30.00 | 6818 | 32.5 | 1.58 |
| S55 | 41.40 | 17.78 | 22.23 | 5.72 | 37.7 | 40.4 | 17.3 | 2.8 | 18.00 | 4091 | 36.1 | 1.80 |
| S55F9 | 41.40 | 17.78 | 22.23 | 7.14 | 37.0 | 39.7 | 19.8 | 2.8 | 35.00 | 7873 | 36.1 | 2.70 |
| S55H | 41.40 | 17.78 | 22.23 | 8.28 | 39.5 | 42.2 | 20.4 | 3.0 | 45.00 | 10122 | 50.0 | 2.90 |
| S55R | 41.40 | 17.78 | 22.23 | 8.90 | 41 | 44.0 | 22.4 | 3.5 | 45.00 | 10227 | 73.1 | 2.49 |
| S55RH | 41.40 | 17.78 | 22.23 | 8.90 | 43.2 | 46.4 | 22.4 | 4.0 | 65.00 | 14772 | 84.5 | 2.74 |
| S55RHF1 | 41.40 | 25.00 | 22.23 | 8.90 | 43.2 | 46.4 | 22.4 | 4.0 | 65.00 | 14772 | 84.5 | 2.74 |
| S62 | 41.91 | 19.05 | 26.20 | 5.72 | 40.3 | 43.0 | 17.3 | 2.5 | 26.70 | 6067 | 36.1 | 1.87 |
| S62F5 | 41.91 | 19.05 | 26.20 | 5.72 | 40.3 | 43.0 | 16.7 | 2.5 | 26.70 | 6067 | 36.1 | 2.07 |
| S62F8 | 41.91 | 19.05 | 27.90 | 10.00 | 44.9 | 49.3 | 25.0 | 3.0 | 45.00 | 10227 | 60.0 | 2.96 |
| S62F10 | 41.91 | 19.05 | 25.40 | 5.72 | 39.4 | 42.2 | 17.3 | 2.5 | 26.70 | 6067 | 36.1 | 2.04 |
| S77 | 58.34 | 18.26 | 22.23 | 8.90 | 43.2 | 46.4 | 26.2 | 4.0 | 45.00 | 10227 | 73.1 | 2.66 |
| S88 | 66.27 | 22.86 | 28.58 | 8.90 | 49.8 | 53.0 | 26.2 | 4.0 | 45.00 | 10227 | 73.1 | 3.25 |
