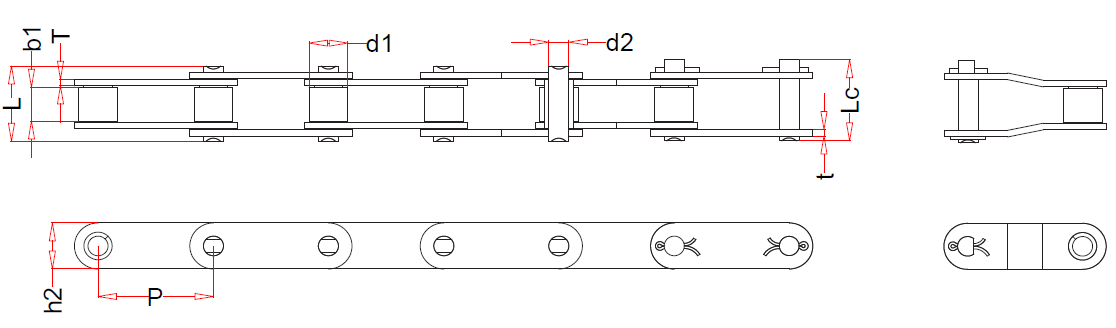

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth |
Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter |
||
| P | d1 max | b1 min | d2 max | L | Lc max | h2 max | t/T max | Q min | Q0 | q | ||
| mm | mm | mm | mm | mm | mm | mm | kN/LB | kN | kg/m | |||
| CA550 | 41.400 | 16.87 | 19.81 | 7.19 | 35.0 | 38.0 | 19.30 | 2.80 | 39.10/8886 | 51.20 | 1.94 | |
| CA550F4 | 41.400 | 14.35 | 20.24 | 7.14 | 35.0 | 38.5 | 19.05 | 2.80 | 50.00/11363 | 52.00 | 1.76 | |
| CA550F5 | 41.400 | 16.66 | 20.24 | 7.14 | 35.0 | 38.5 | 19.05 | 2.80 | 45.00/10227 | 52.00 | 1.97 | |
| CA550F10 | 41.400 | 16.70 | 19.81 | 7.14 | 36.2 | 39.2 | 19.05 | 3.00 | 45.00/10227 | 52.00 | 2.38 | |
| CA550H | 41.400 | 16.74 | 20.00 | 7.14 | 36.0 | 39.1 | 19.10 | 3.00 | 57.82/13000 | 60.80 | 2.00 | |
| CA550HF4 | 41.400 | 16.74 | 20.00 | 7.14 | 36.0 | 39.1 | 19.10 | 3.00 | 57.78/12998 | 60.80 | 2.73 | |
| CA550V | 41.400 | 16.80 | 19.05 | 8.28 | 36.1 | 39.1 | 22.00 | 3.00 | 55.00/12499 | 68.70 | 2.24 | |
| CA550VF1 | 41.400 | 16.80 | 19.50 | 8.28 | 36.7 | 39.4 | 19.80 | 3.00 | 44/9898 | 54.96 | 2.50 | |
| CA550VF2 | 41.400 | 16.80 | 19.05 | 8.28 | 36.1 | 38.8 | 20.00 | 3.00 | 55.00/12499 | 68.70 | 2.13 | |
| CA555 | 41.400 | 16.87 | 12.70 | 7.19 | 29.1 | 32.0 | 19.30 | 3.10 | 39.10/8886 | 56.00 | 1.72 | |
| CA557 | 41.400 | 17.78 | 20.24 | 8.00 | 37.4 | 40.6 | 23.10 | 3.10 | 55.61/12639 | 74.30 | 2.60 | |
| CA620 | 42.010 | 17.91 | 24.51 | 7.19 | 41.8 | 45.2 | 20.20 | 3.25 | 39.10/8886 | 55.10 | 2.35 | |
| CA2060H | 38.100 | 11.91 | 12.70 | 5.94 | 29.2 | 31.6 | 18.00 | 3.25 | 31.10/6996 | 40.50 | 1.45 | |
| CA2063H | 38.100 | 11.89 | 12.70 | 5.94 | 29.4 | 34.2 | 19.30 | 3.25 | 31.28/7109 | 40.50 | 1.65 | |
| CAE44151 | 28.575 | 15.88 | 16.20 | 7.92 | 33.5 | 36.9 | 22.20 | 3.25 | 58.80/13363 | 64.50 | 2.73 | |
| CA960 | 41.400 | 17.78 | 22.61 | 8.90 | 40.1 | 43.0 | 23.10 | 3.00 | 66.00/15160 | 72.60 | 6.94 | |
