32B-1A&2A&3A

Name: 32B-1A&2A&3A
Brand: CORF TECHNOLOGY
Availability: InStock
Rating: 5 (1 reviews)

32B | 2" x 1"1/4 | 50,8 x 30,99 mm | Roller 29,21 mm

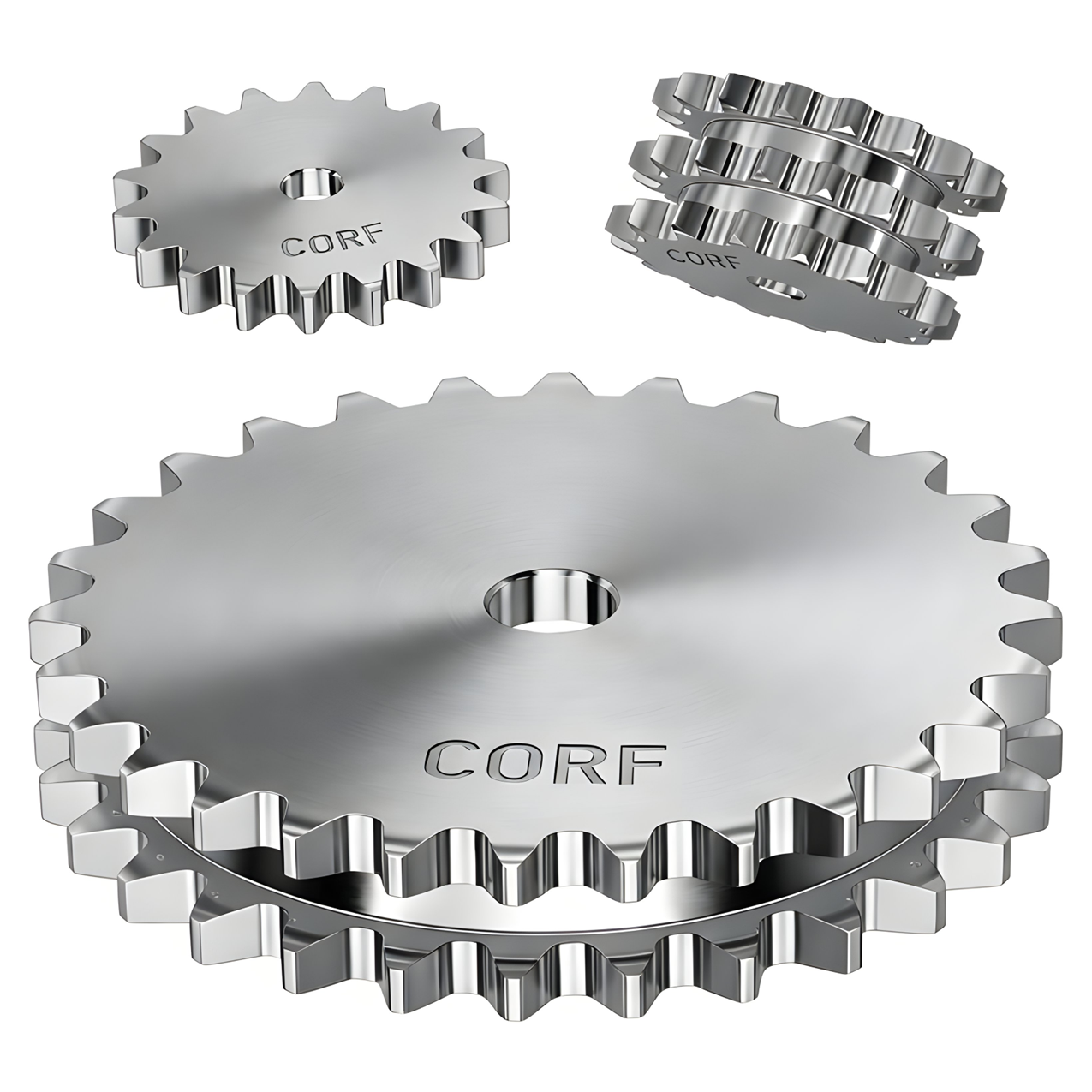

Sprocket plate with pilot bore, European standards (EN)

Our sprocket plates with pilot bore meet strict European (EN) standards for precision, durability, and seamless alignment in industrial power transmission, conveyors, and machinery. Built for versatility, they offer customization, premium materials, and advanced processing—all backed by rigorous quality checks.

Features

Customizable Design: Tailor to your specs with client-approved drawings; choose from multi-standards (ANSI, DIN, JIS, BS, plus brands like SATI/MARTIN).
Premium Materials: Steels (C45, SS304/316, 40Cr, Q235(S235JR), Q345, C20, 20CrMnTi,42CrMn,), engineering plastics (POM, PA6), Brass(Copper), and cast iron—matched to your application.
Enhanced Performance: Advanced heat treatment (hardened teeth, carburizing, gas nitriding) and surface finishes (black oxide, nickel/chromium plating) for wear/corrosion resistance.
Rigorous Quality: 100% inspection at every stage ensures reliability and minimal downtime.

GET A QUOTE

Description

Tooth width B1	29,4
Tooth width B2	87,4
Tooth width B3	146
Tooth width b1	28,8
Radius width C	6
Tooth radius r3	51

z	de	dp	Simplex			Duplex			Triplex
z	de	dp	CORF Code	D1	kg/pc	CORF Code	D2	kg/pc	CORF Code	D3	kg/pc
8	152.0	132.74	32B-1AZ8	25	2.27	32B-2AZ8	25	5.53	32B-3AZ8	25	8.83
9	168.0	148.54	32B-1AZ9	25	2.99	32B-2AZ9	25	7.46	32B-3AZ9	25	11.99
10	184.0	164.39	32B-1AZ10	25	3.81	32B-2AZ10	25	9.68	32B-3AZ10	25	15.63
11	200.0	180.31	32B-1AZ11	30	4.67	32B-2AZ11	35	11.86	32B-3AZ11	35	19.20
12	216.0	196.29	32B-1AZ12	30	5.67	32B-2AZ12	35	14.64	32B-3AZ12	35	23.78
13	235.0	212.29	32B-1AZ13	30	6.77	32B-2AZ13	35	17.70	32B-3AZ13	35	28.83
14	251.0	228.29	32B-1AZ14	30	7.97	32B-2AZ14	35	21.05	32B-3AZ14	35	34.35
15	267.0	244.30	32B-1AZ15	30	9.26	32B-2AZ15	35	24.68	32B-3AZ15	35	40.34
16	283.0	260.40	32B-1AZ16	30	10.64	32B-2AZ16	40	28.38	32B-3AZ16	40	46.47
17	299.0	276.46	32B-1AZ17	30	12.12	32B-2AZ17	40	32.57	32B-3AZ17	40	53.40
18	315.0	292.55	32B-1AZ18	30	13.69	32B-2AZ18	40	37.05	32B-3AZ18	40	60.80
19	331.0	308.66	32B-1AZ19	30	15.36	32B-2AZ19	40	41.80	32B-3AZ19	40	68.68
20	347.0	324.71	32B-1AZ20	40	16.99	32B-2AZ20	40	46.84	32B-3AZ20	40	77.02
21	363.0	340.82	32B-1AZ21	40	18.85	32B-2AZ21	40	52.15	32B-3AZ21	40	85.84
22	379.0	356.98	32B-1AZ22	40	20.80	32B-2AZ22	40	57.75	32B-3AZ22
23	396.0	373.08	32B-1AZ23	40	22.85	32B-2AZ23	40	63.63	32B-3AZ23	40	104.88
24	412.0	389.18	32B-1AZ24	40	24.99	32B-2AZ24	40	69.80	32B-3AZ24
25	428.0	405.33	32B-1AZ25	40	27.23	32B-2AZ25	40	76.24	32B-3AZ25	40	125.81
26	444.0	421.44	32B-1AZ26	40	29.56	32B-2AZ26	40	82.97	32B-3AZ26
28	476.0	453.69	32B-1AZ28	40	34.51	32B-2AZ28	40	97.27	32B-3AZ28
30	508.0	486.00	32B-1AZ30	40	39.84	32B-2AZ30	40	112.70	32B-3AZ30	40	186.37
32	541.0	518.27	32B-1AZ32	40	45.54	32B-2AZ32			32B-3AZ32
35	589.0	566.71	32B-1AZ35	40	54.81	32B-2AZ35	40	156.19	32B-3AZ35	40	258.69
38	638.0	615.16	32B-1AZ38	40	64.93	32B-2AZ38	40	185.67	32B-3AZ38	40	307.73
40	670.0	647.47	32B-1AZ40	40	72.16	32B-2AZ40	40	206.73	32B-3AZ40
45	751.0	728.24	32B-1AZ45	40	91.87	32B-2AZ45	40	265.32	32B-3AZ45	40	438.64
50	832.0	809.04	32B-1AZ50	40	113.96	32B-2AZ50	40	328.95	32B-3AZ50	40	549.27
57	945.0	922.16	32B-1AZ57	40	148.86	32B-2AZ57	40	431.27	32B-3AZ57	40	716.72
60	993.0	970.65	32B-1AZ60	40	165.24	32B-2AZ60			32B-3AZ60
76	1,252.0	1,229.27	32B-1AZ76	40	267.00	32B-2AZ76	40	757.78	32B-3AZ76	40	1295.64
