32B-1B&2B&3B

Name: 32B-1B&2B&3B
Brand: CORF TECHNOLOGY
Availability: InStock
Rating: 5 (1 reviews)

32B | 2" x 1"1/4 | 50,8 x 30,99 mm | Roller 29,21 mm

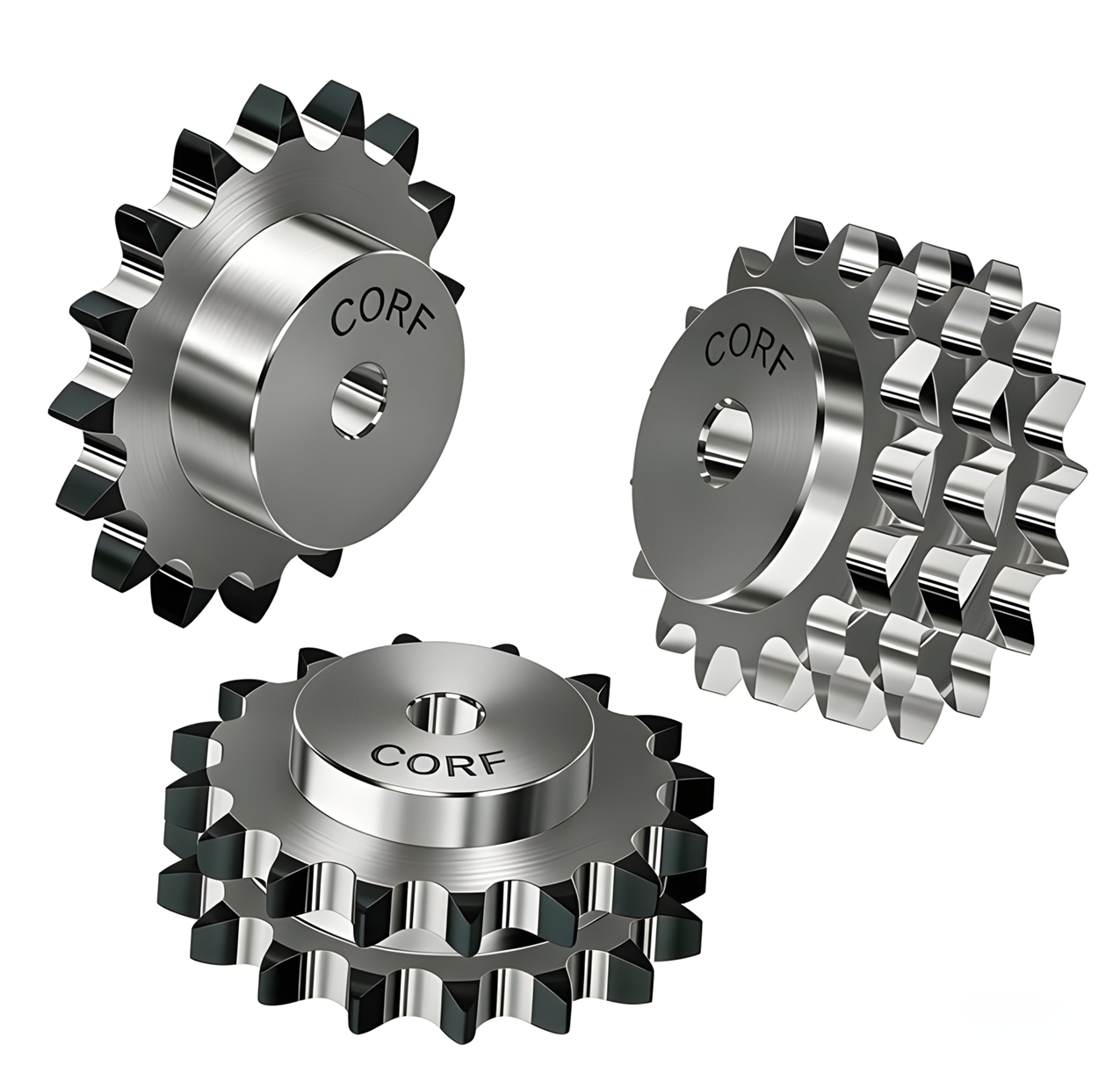

CORF sprockets (Type B & Type C) with pilot bore meet strict European (EN) standards for precision, durability, and alignment in industrial power transmission, conveyors, and machinery. Customizable, premium-built, and quality-checked for reliable performance.

Features

Hub Extensions: Type B (hub extension – one side) / Type C (hub extension – both sides) for varied load/space needs.
Customizable: Client-approved drawings; fits multi-standards (ANSI, DIN, JIS, BS, SATI/MARTIN).
Materials: Steels (C45, SS304/316, 40Cr), engineering plastics (POM, PA6), brass, cast iron—matched to your application.

Durability: Advanced heat treatment (hardened teeth, carburizing) + surface finishes (black oxide, nickel plating) for wear/corrosion resistance.
Quality: 100% inspection at every stage ensures reliability.

GET A QUOTE

Description

Tooth width B1	29,4
Tooth width B2	87,4
Tooth width B3	146.00
Tooth width b1	28,8
Radius width C	6
Tooth radius r3	51

z	de	dp	Simplex					Duplex					Triplex
z	de	dp	CORF Code	dm	D1	A	kg/pc	CORF Code	dm	D2	A	kg/pc	CORF Code	dm	D3	A	kg/pc
8	152.0	132.74	32B1Z8	85	30	80	4.20	32B2Z8					32B3Z8	85	30	180	9.90
9	168.0	148.54	32B1Z9	100	30	80	5.78	32B2Z9	100	30	120	9.14	32B3Z9	100	30	180	13.65
10	184.0	164.39	32B1Z10	115	30	80	7.60	32B2Z10	115	30	120	12.01	32B3Z10	115	30	180	17.97
11	200.0	181.31	32B1Z11	125	30	80	9.26	32B2Z11	125	35	120	14.75	32B3Z11	125	35	180	22.22
12	216.0	196.29	32B1Z12	133	30	80	10.91	32B2Z12	133	35	120	17.95	32B3Z12	133	35	180	27.23
13	235.0	212.29	32B1Z13	145	30	80	13.05	32B2Z13	145	35	120	21.68	32B3Z13	145	35	180	32.98
14	251.0	228.29	32B1Z14	145	30	80	14.25	32B2Z14	145	35	120	25.03	32B3Z14	145	35	180	38.50
15	267.0	244.30	32B1Z15	145	30	80	15.53	32B2Z15	160	35	120	29.30	32B3Z15	160	35	180	45.04
16	283.0	260.40	32B1Z16	160	30	90	19.87	32B2Z16	160	40	120	33.21	32B3Z16	160	40	180	51.50
17	299.0	276.46	32B1Z17	160	30	90	21.35	32B2Z17	180	40	120	38.76	32B3Z17	200	40	180	61.45
18	315.0	292.55	32B1Z18	160	30	90	22.92	32B2Z18	180	40	120	43.24	32B3Z18	200	40	180	68.85
19	331.0	308.66	32B1Z19	160	30	90	24.53	32B2Z19	200	40	120	49.52	32B3Z19	200	40	180	76.73
20	347.0	324.71	32B1Z20	180	40	90	28.50	32B2Z20	200	40	120	54.56	32B3Z20	200	40	180	85.07
21	363.0	340.82	32B1Z21	180	40	90	30.36	32B2Z21	200	40	120	59.87	32B3Z21	200	40	180	93.89
22	379.0	356.98	32B1Z22	*180	40	90	32.31	32B2Z22	*200	40	120	65.47	32B3Z22
23	396.0	373.08	32B1Z23	*180	40	90	34.36	32B2Z23	*200	40	120	71.35	32B3Z23	*200	40	180	112.93
24	412.0	389.18	32B1Z24	*180	40	90	36.50	32B2Z24	*200	40	120	77.52	32B3Z24
25	428.0	405.33	32B1Z25	*180	40	90	38.74	32B2Z25	*200	40	120	83.66	32B3Z25	*200	40	180	133.86
26	444.0	421.44	32B1Z26	*180	40	90	41.07	32B2Z26	*200	40	120	90.69	32B3Z26
27	460.0	437.59	32B1Z27					32B2Z27					32B3Z27
28	476.0	453.69	32B1Z28	*180	40	90	46.01	32B2Z28	*200	40	120	104.99	32B3Z28
29	492.0	469.85	32B1Z29					32B2Z29					32B3Z29
30	508.0	486.00	32B1Z30	*180	40	90	51.34	32B2Z30	*200	40	120	120.41	32B3Z30	*200	40	180	194.42
31	525.0	502.13	32B1Z31					32B2Z31					32B3Z31
32	541.0	518.27	32B1Z32	*200	40	90	59.89	32B2Z32					32B3Z32
33	557.0	534.42	32B1Z33					32B2Z33					32B3Z33
34	573.0	550.56	32B1Z34					32B2Z34					32B3Z34
35	589.0	566.71	32B1Z35	*200	40	90	69.16	32B2Z35	*200	40	120	163.85	32B3Z35	*200	40	180	267.49
36	605.0	582.86	32B1Z36					32B2Z36					32B3Z36
37	622.0	599.01	32B1Z37					32B2Z37					32B3Z37
38	638.0	615.16	32B1Z38	*200	40	90	79.28	32B2Z38	*200	40	120	193.33	32B3Z38	*200	40	180	316.22
40	670.0	647.47	32B1Z40	*200	40	90	86.50	32B2Z40	*200	40	120	214.39	32B3Z40
45	751.0	728.24	32B1Z45	*218	40	123	118.87	32B2Z45	*220	40	148	282.32	32B3Z45	*220	40	207	456.64
50	832.0	809.04	32B1Z50	*218	40	123	140.96	32B2Z50	*220	40	148	346.95	32B3Z50	*220	40	207	564.27
57	945.0	922.16	32B1Z57	*218	40	123	175.86	32B2Z57	*220	40	148	449.27	32B3Z57	*220	40	207	734.72
60	993.0	970.65	32B1Z60	*218	40	123	192.24	32B2Z60					32B3Z60
76	1252.0	1229.27	32B1Z76	*218	40	123	294.00	32B2Z76	*220	40	148	796.60	32B3Z76	*238	40	216	1319.64
