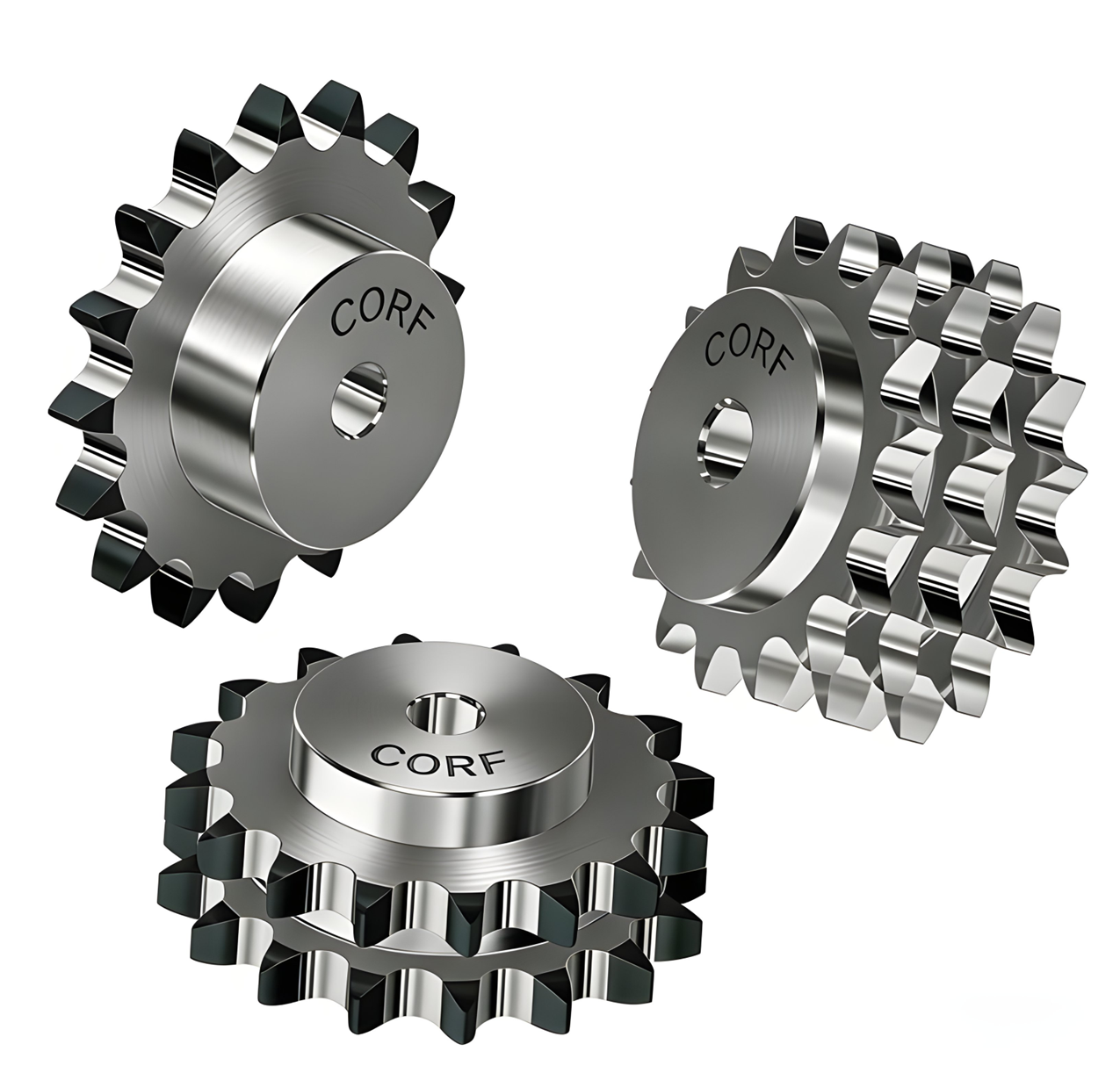

16B-1B&2B&3B

Name: 16B-1B&2B&3B
Brand: CORF TECHNOLOGY
Availability: InStock
Rating: 5 (1 reviews)

16B | 1" x 17,02 mm | 25,4 x 17,02 mm | Roller 15,88 mm

CORF sprockets (Type B & Type C) with pilot bore meet strict European (EN) standards for precision, durability, and alignment in industrial power transmission, conveyors, and machinery. Customizable, premium-built, and quality-checked for reliable performance.

Features

Hub Extensions: Type B (hub extension – one side) / Type C (hub extension – both sides) for varied load/space needs.
Customizable: Client-approved drawings; fits multi-standards (ANSI, DIN, JIS, BS, SATI/MARTIN).
Materials: Steels (C45, SS304/316, 40Cr), engineering plastics (POM, PA6), brass, cast iron—matched to your application.

Durability: Advanced heat treatment (hardened teeth, carburizing) + surface finishes (black oxide, nickel plating) for wear/corrosion resistance.
Quality: 100% inspection at every stage ensures reliability.

GET A QUOTE

Description

Tooth width B1	16,2
Tooth width B2	47,7
Tooth width B3	79,6
Tooth width b1	15,8
Radius width C	2,5
Tooth radius r3	26

z	de	dp	Simplex					Duplex					Triplex
z	de	dp	CORF Code	dm	D1	A	kg/pc	CORF Code	dm	D2	A	kg/pc	CORF Code	dm	D3	A	kg/pc
8	77.9	66.37	16B1Z8	42	16	35	0.47	16B2Z8	42	20	65	0.81	16B3Z8	42	20	95	1.19
9	85.8	74.27	16B1Z9	50	16	35	0.66	16B2Z9	50	20	65	1.15	16B3Z9	50	20	95	1.68
10	93.8	82.19	16B1Z10	55	16	35	0.83	16B2Z10	56	20	65	1.52	16B3Z10	56	20	95	2.24
11	101.7	90.14	16B1Z11	61	16	40	1.14	16B2Z11	64	20	70	2.08	16B3Z11	64	25	100	2.86
12	109.7	98.14	16B1Z12	69	16	40	1.43	16B2Z12	72	20	70	2.60	16B3Z12	72	25	100	3.62
13	117.7	106.12	16B1Z13	78	16	40	1.77	16B2Z13	80	20	70	3.18	16B3Z13	80	25	100	4.45
14	125.7	114.15	16B1Z14	84	16	40	2.08	16B2Z14	88	20	70	3.82	16B3Z14	88	25	100	5.37
15	133.7	122.17	16B1Z15	92	16	40	2.46	16B2Z15	96	20	70	4.51	16B3Z15	96	25	100	6.37
16	141.8	130.20	16B1Z16	100	20	45	3.14	16B2Z16	104	20	70	5.17	16B3Z16	104	25	100	7.45
17	149.8	138.22	16B1Z17	100	20	45	3.33	16B2Z17	112	20	70	5.98	16B3Z17	112	25	100	8.60
18	157.8	146.28	16B1Z18	100	20	45	3.56	16B2Z18	120	20	70	6.84	16B3Z18	120	25	100	9.84
19	165.9	154.33	16B1Z19	100	20	45	3.78	16B2Z19	128	20	70	7.76	16B3Z19	128	25	100	11.16
20	173.9	162.38	16B1Z20	100	20	45	4.03	16B2Z20	130	20	70	8.52	16B3Z20	130	25	100	12.36
21	182.0	170.43	16B1Z21	110	20	50	5.01	16B2Z21	130	25	70	9.24	16B3Z21	130	25	100	13.56
22	190.1	178.48	16B1Z22	110	20	50	5.28	16B2Z22	130	25	70	10.00	16B3Z22	130	25	100	14.82
23	198.1	186.53	16B1Z23	110	20	50	5.56	16B2Z23	130	25	70	10.80	16B3Z23	130	25	100	16.15
24	206.2	194.59	16B1Z24	110	20	50	5.86	16B2Z24	130	25	70	11.64	16B3Z24	130	25	100	17.53
25	214.2	202.66	16B1Z25	110	20	50	6.16	16B2Z25	130	25	70	12.52	16B3Z25	130	25	100	18.99
26	222.3	210.72	16B1Z26	120	20	50	6.96	16B2Z26	130	25	70	13.43	16B3Z26	130	30	100	20.34
27	230.4	218.79	16B1Z27	120	20	50	7.30	16B2Z27	130	25	70	14.38	16B3Z27	130	30	100	21.92
28	238.4	226.85	16B1Z28	120	20	50	7.64	16B2Z28	130	25	70	15.38	16B3Z28	130	30	100	23.57
29	246.5	234.92	16B1Z29	120	20	50	8.00	16B2Z29	130	25	70	16.41	16B3Z29	130	30	100	25.27
30	254.6	243.00	16B1Z30	120	20	50	8.38	16B2Z30	130	25	70	17.48	16B3Z30	130	30	100	27.05
31	262.6	251.08	16B1Z31	120	25	50	8.69	16B2Z31	140	25	70	18.96	16B3Z31	140	30	100	29.23
32	270.7	259.13	16B1Z32	120	25	50	9.09	16B2Z32	140	25	70	20.10	16B3Z32	140	30	100	31.13
33	278.8	267.21	16B1Z33	120	25	50	9.50	16B2Z33	140	25	70	21.29	16B3Z33	140	30	100	33.10
34	286.9	275.28	16B1Z34	120	25	50	9.93	16B2Z34	140	25	70	22.21	16B3Z34	140	30	100	35.13
35	294.9	283.36	16B1Z35	120	25	50	10.36	16B2Z35	140	25	70	23.77	16B3Z35	140	30	100	37.23
36	303.0	291.44	16B1Z36	120	25	50	10.81	16B2Z36	140	25	70	25.07	16B3Z36	140	30	100	39.39
37	311.1	299.51	16B1Z37	120	25	50	11.28	16B2Z37	140	25	70	26.41	16B3Z37
38	319.2	307.59	16B1Z38	120	25	50	11.76	16B2Z38	140	25	70	27.79	16B3Z38	140	30	100	43.90
39	327.2	315.67	16B1Z39	120	25	50	12.25	16B2Z39	140	25	70	29.20	16B3Z39
40	335.3	323.73	16B1Z40	120	25	50	12.75	16B2Z40	140	25	70	30.65	16B3Z40	140	30	100	48.67
42	353.7	339.90	16B1Z42	*133	25	68	16.54	16B2Z42	*140	25	70	33.63	16B3Z42
45	377.9	364.12	16B1Z45	*133	25	68	18.15	16B2Z45	*140	25	70	38.44	16B3Z45	*160	30	110	63.94
46	386.0	372.21	16B1Z46	*133	25	68	18.69	16B2Z46	*140	25	70	40.13	16B3Z46
48	402.1	388.36	16B1Z48	*133	25	68	19.86	16B2Z48	*140	25	70	43.61	16B3Z48
50	418.3	404.52	16B1Z50	*133	25	68	20.89	16B2Z50	*140	25	70	47.25	16B3Z50	*160	30	110	78.58
57	474.9	461.07	16B1Z57	*133	30	68	25.52	16B2Z57	*140	40	82	63.45	16B3Z57	*180	40	112	103.03
60	499.1	485.32	16B1Z60	*133	30	68	27.76	16B2Z60	*140	40	82	70.00	16B3Z60
76	628.4	614.65	16B1Z76	*145	30	68	42.97	16B2Z76	*140	40	82	110.79	16B3Z76	*180	40	112	181.86
95	782.0	768.22	16B1Z95	*160	30	78	63.92	16B2Z95	*180	40	109	178.48	16B3Z95	*180	40	112	283.85
