| Catalog No. |
Type | Material | Teeth | Bush No. |
Bore max |
Pitch Dia |
Outer Dia |
Flange Dia |
Hub Dia |
Tooth width |
Total length |
Mass per pc |

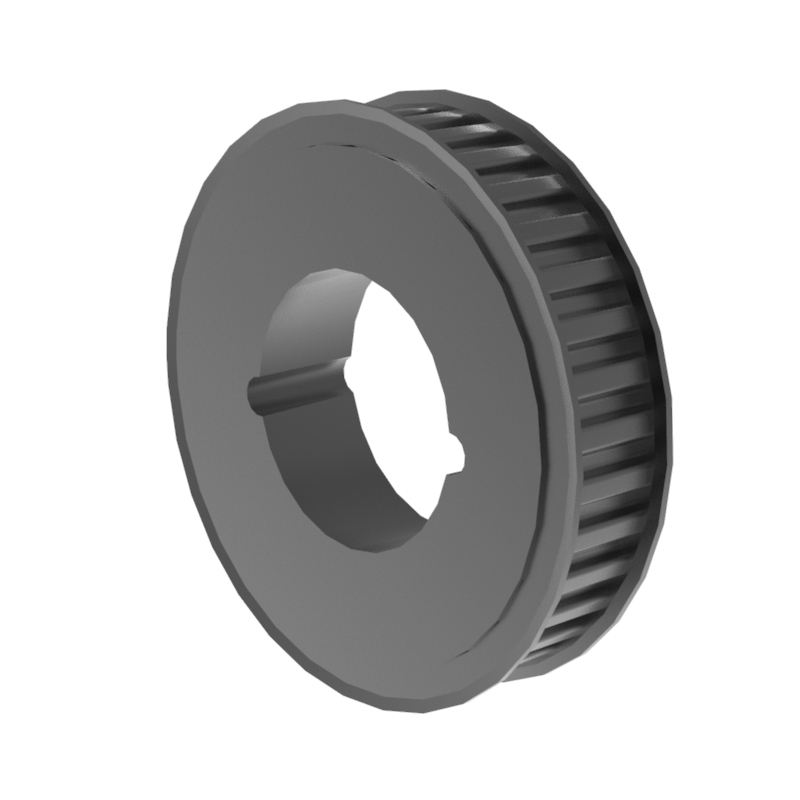

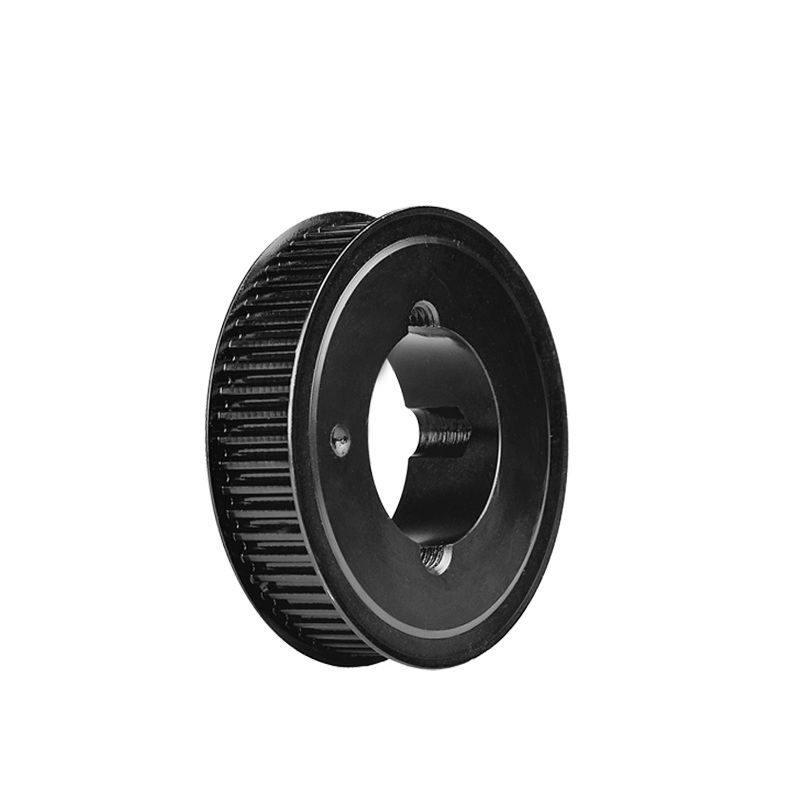

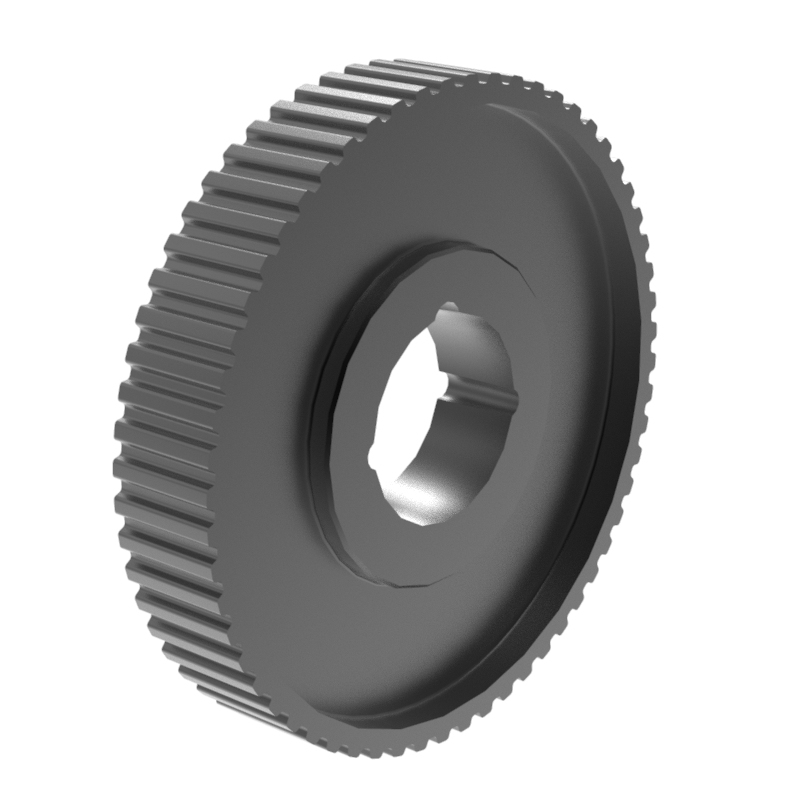

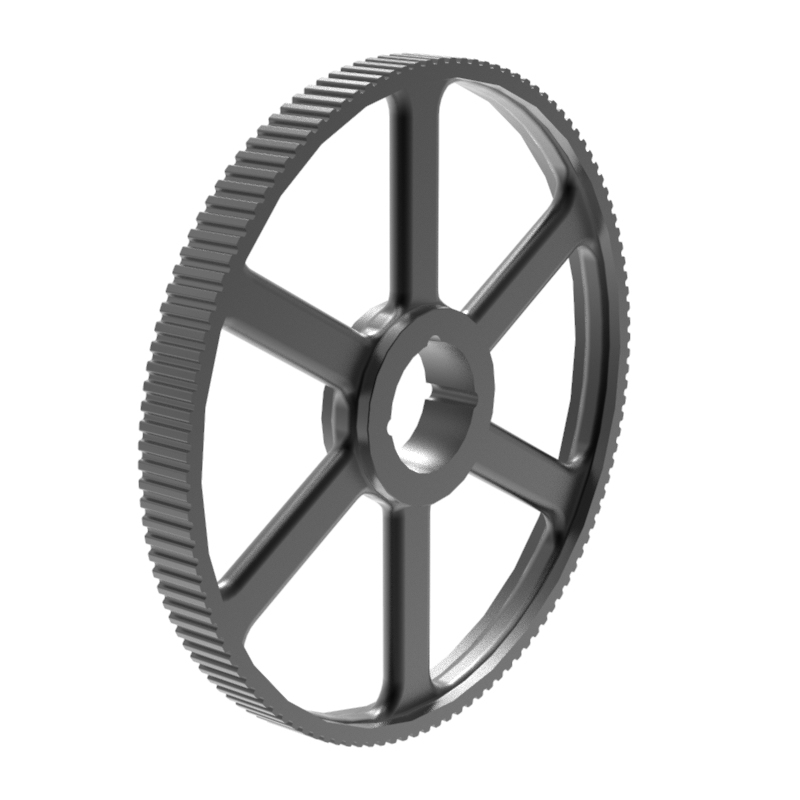

|||
| dp | de | Df | Dm | Di | F | L | R | n ° flange |
(q≈) | ||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | ° | kg/pc | |||||
| TL 28 14M 55 | 18F | St | 28 | 2012 | 50 | 124.78 | 122.12 | 127 | 94 | 70 | 32 | 19 | 400 | 2.20 | |
| TL 30 14M 55 | 18F | St | 30 | 2517 | 60 | 133.69 | 130.99 | 138 | 100 | 70 | 45 | 12.5 | 401 | 2.70 | |
| TL 32 14M 55 | 18F | St | 32 | 2517 | 60 | 142.60 | 139.88 | 154 | 108 | 70 | 45 | 12.5 | 403 | 3.60 | |
| TL 34 14M 55 | 18F | St | 34 | 2517 | 60 | 151.52 | 148.79 | 160 | 110 | 70 | 45 | 12.5 | 404 | 4.50 | |
| TL 36 14M 55 | 18F | St | 36 | 2517 | 60 | 160.43 | 157.68 | 168 | 120 | 70 | 45 | 12.5 | 405 | 5.20 | |
| TL 38 14M 55 | 18F | St | 38 | 2517 | 60 | 169.34 | 166.60 | 183 | 130 | 70 | 45 | 12.5 | 406 | 6.20 | |
| TL 40 14M 55 | 18F | St | 40 | 2517 | 60 | 178.25 | 175.49 | 188 | 138 | 70 | 45 | 12.5 | 407 | 6.90 | |
| TL 44 14M 55 | 18F | St | 44 | 3020 | 75 | 196.08 | 193.28 | 211 | 155 | 70 | 51 | 9.5 | 411 | 8.60 | |
| TL 48 14M 55 | 18F | St | 48 | 3020 | 75 | 213.90 | 211.11 | 226 | 170 | 70 | 51 | 9.5 | 412 | 10.50 | |
| TL 56 14M 55 | 18F | GG | 56 | 3020 | 75 | 249.55 | 246.76 | 256 | 208 | 70 | 51 | 9.5 | 416 | 12.50 | |
| TL 64 14M 55 | 19F | GG | 64 | 3020 | 75 | 285.21 | 282.41 | 296 | 170 | 240 | 70 | 51 | 9.5 | 418 | 15.60 |
| TL 72 14M 55 | 19 | GG | 72 | 3020 | 75 | 320.86 | 318.06 | 170 | 280 | 70 | 51 | 9.5 | 17.45 | ||
| TL 80 14M 55 | 20 | GG | 80 | 3020 | 75 | 356.51 | 353.71 | 170 | 315 | 70 | 51 | 9.5 | 17.45 | ||
| TL 90 14M 55 | 20 | GG | 90 | 3020 | 75 | 401.07 | 398.28 | 170 | 360 | 70 | 51 | 9.5 | 19.90 | ||
| TL 112 14M 55 | 20 | GG | 112 | 3020 | 75 | 499.11 | 496.32 | 170 | 457 | 70 | 51 | 9.5 | 27.50 | ||
| TL 144 14M 55 | 20 | GG | 144 | 3020 | 75 | 641.71 | 638.92 | 170 | 600 | 70 | 51 | 9.5 | 37.00 | ||
| TL 168 14M 55 | 20 | GG | 168 | 3020 | 75 | 748.66 | 745.87 | 170 | 706 | 70 | 51 | 9.5 | 50.00 | ||
| TL 192 14M 55 | 20 | GG | 192 | 3020 | 75 | 855.62 | 852.82 | 170 | 813 | 70 | 51 | 9.5 | 62.00 |
