| Catalog No. |
Type | Material | Teeth | Bush No. |
Bore max |
Pitch Dia |
Outer Dia |
Flange Dia |
Hub Dia |
Tooth width |
Total length |
Mass per pc |

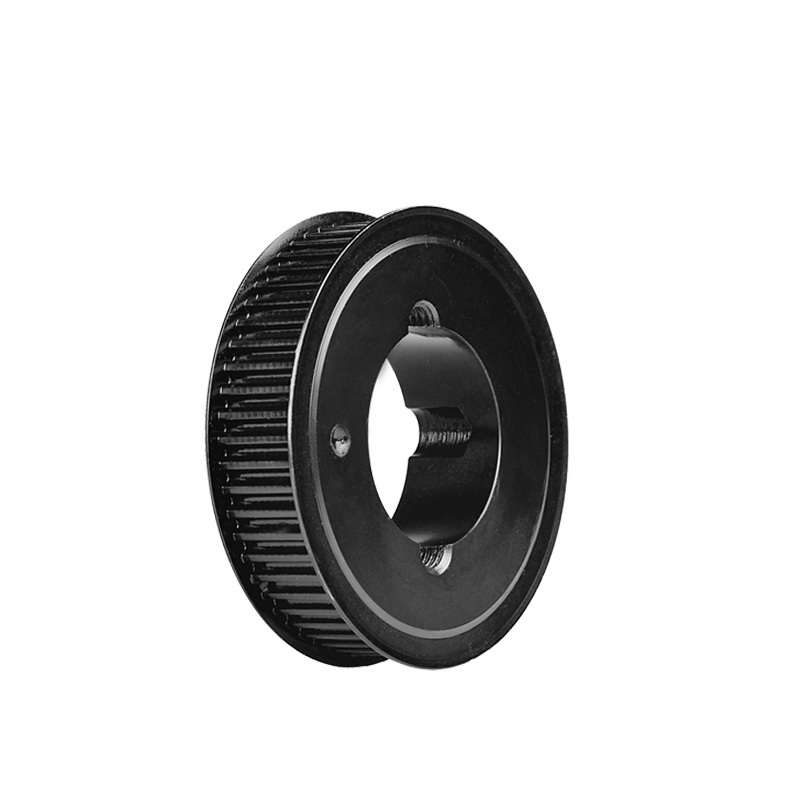

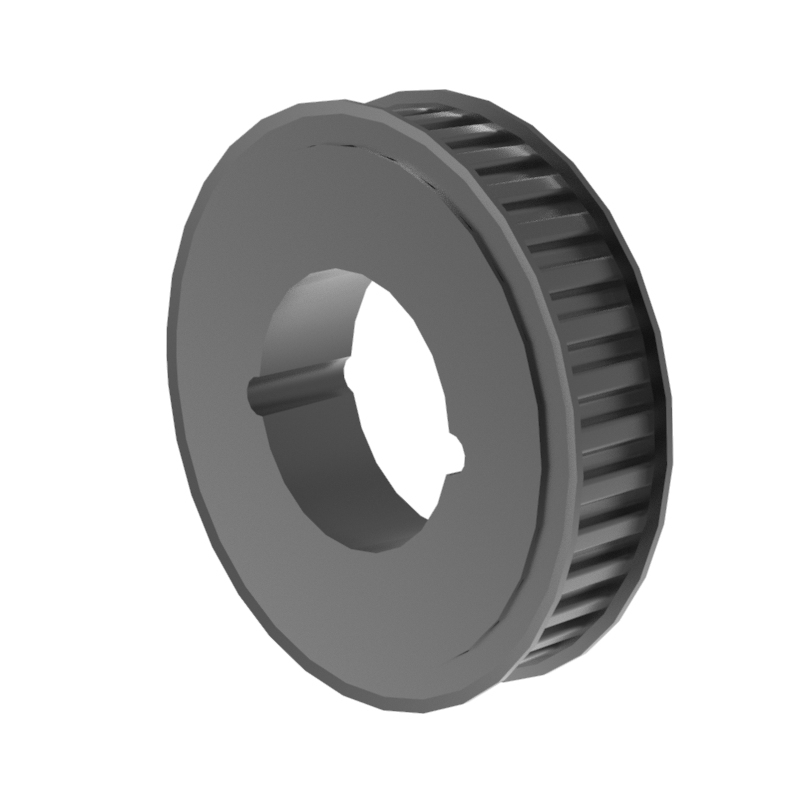

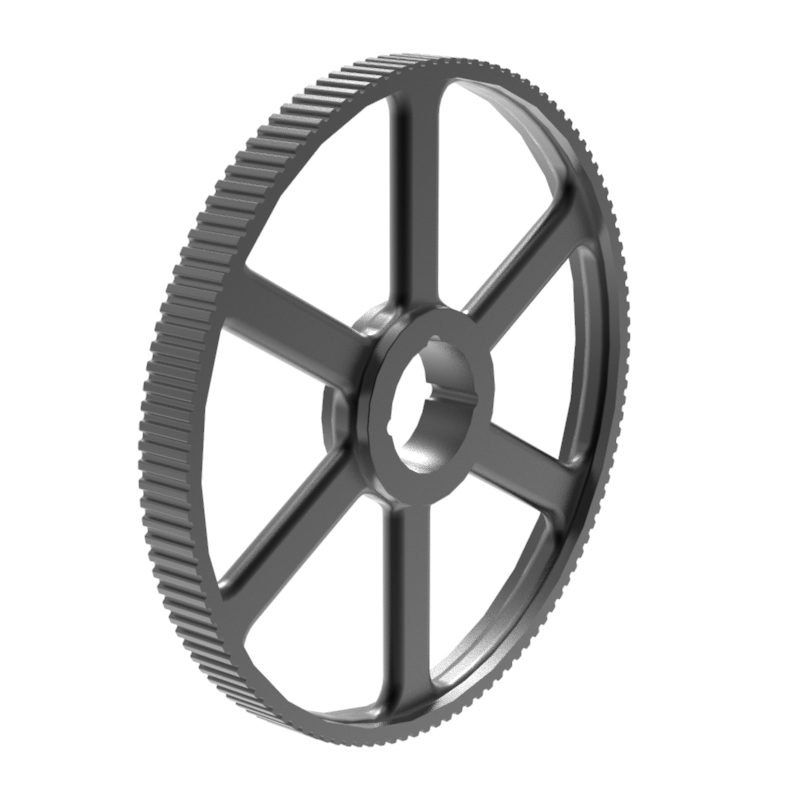

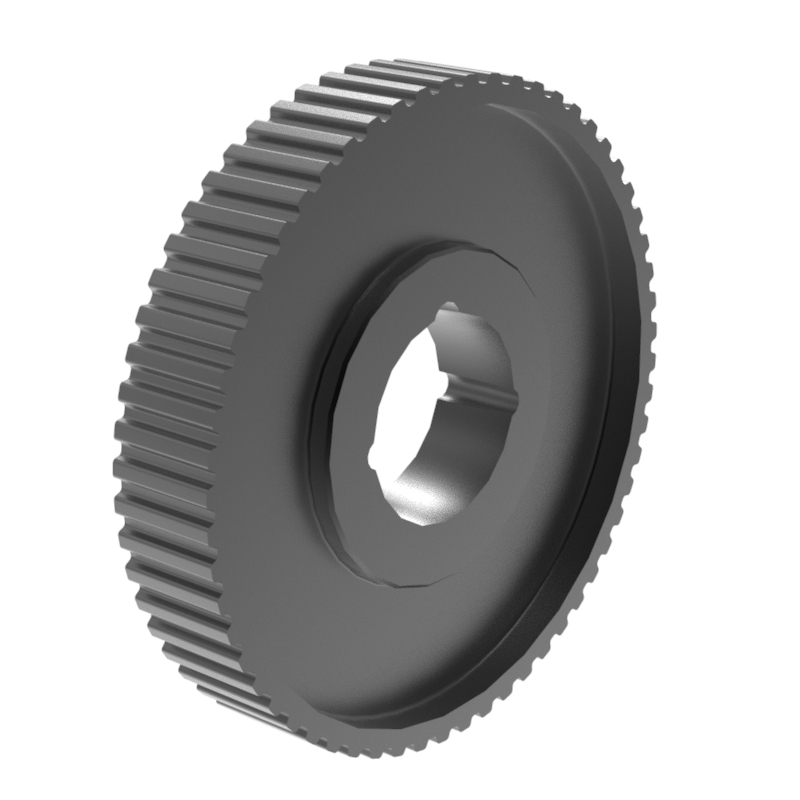

|||
| dp | de | Df | Dm | Di | F | L | R | n ° flange |
(q≈) | ||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | ° | kg/pc | |||||
| TL 38 14M 170 | 18F | St | 38 | 3030 | 75 | 169.34 | 166.60 | 183 | 130 | 187 | 76 | 55.5 | 406 | 11.70 | |
| TL 40 14M 170 | 18F | St | 40 | 3030 | 75 | 178.25 | 175.49 | 188 | 138 | 187 | 76 | 55.5 | 407 | 13.00 | |
| TL 44 14M 170 | 18F | St | 44 | 3535 | 90 | 196.08 | 193.28 | 211 | 155 | 187 | 89 | 49 | 411 | 15.00 | |
| TL 48 14M 170 | 18F | St | 48 | 3535 | 90 | 213.90 | 211.11 | 226 | 170 | 187 | 89 | 49 | 412 | 19.00 | |
| TL 56 14M 170 | 18F | St | 56 | 3535 | 90 | 249.55 | 246.76 | 256 | 210 | 187 | 89 | 49 | 416 | 28.50 | |
| TL 64 14M 170 | 18F | GG | 64 | 4040 | 100 | 285.21 | 282.41 | 296 | 240 | 187 | 102 | 42.5 | 418 | 41.00 | |
| TL 72 14M 170 | 19 | GG | 72 | 4040 | 100 | 320.86 | 318.06 | 230 | 280 | 187 | 102 | 42.5 | 47.00 | ||
| TL 80 14M 170 | 19 | GG | 80 | 4040 | 100 | 356.51 | 353.71 | 230 | 315 | 187 | 102 | 42.5 | 48.00 | ||
| TL 90 14M 170 | 20 | GG | 90 | 4040 | 100 | 401.07 | 398.28 | 230 | 360 | 187 | 102 | 42.5 | 52.50 | ||
| TL112 14M 170 | 20 | GG | 112 | 5050 | 125 | 499.11 | 496.32 | 265 | 457 | 187 | 127 | 30 | 74.50 | ||
| TL144 14M 170 | 20 | GG | 144 | 5050 | 125 | 641.71 | 638.92 | 265 | 600 | 187 | 127 | 30 | 91.00 | ||
| TL168 14M 170 | 20 | GG | 168 | 5050 | 125 | 748.66 | 745.87 | 265 | 706 | 187 | 127 | 30 | 116.00 | ||
| TL192 14M 170 | 20 | GG | 192 | 5050 | 125 | 855.62 | 852.82 | 265 | 813 | 187 | 127 | 30 | 134.00 |
