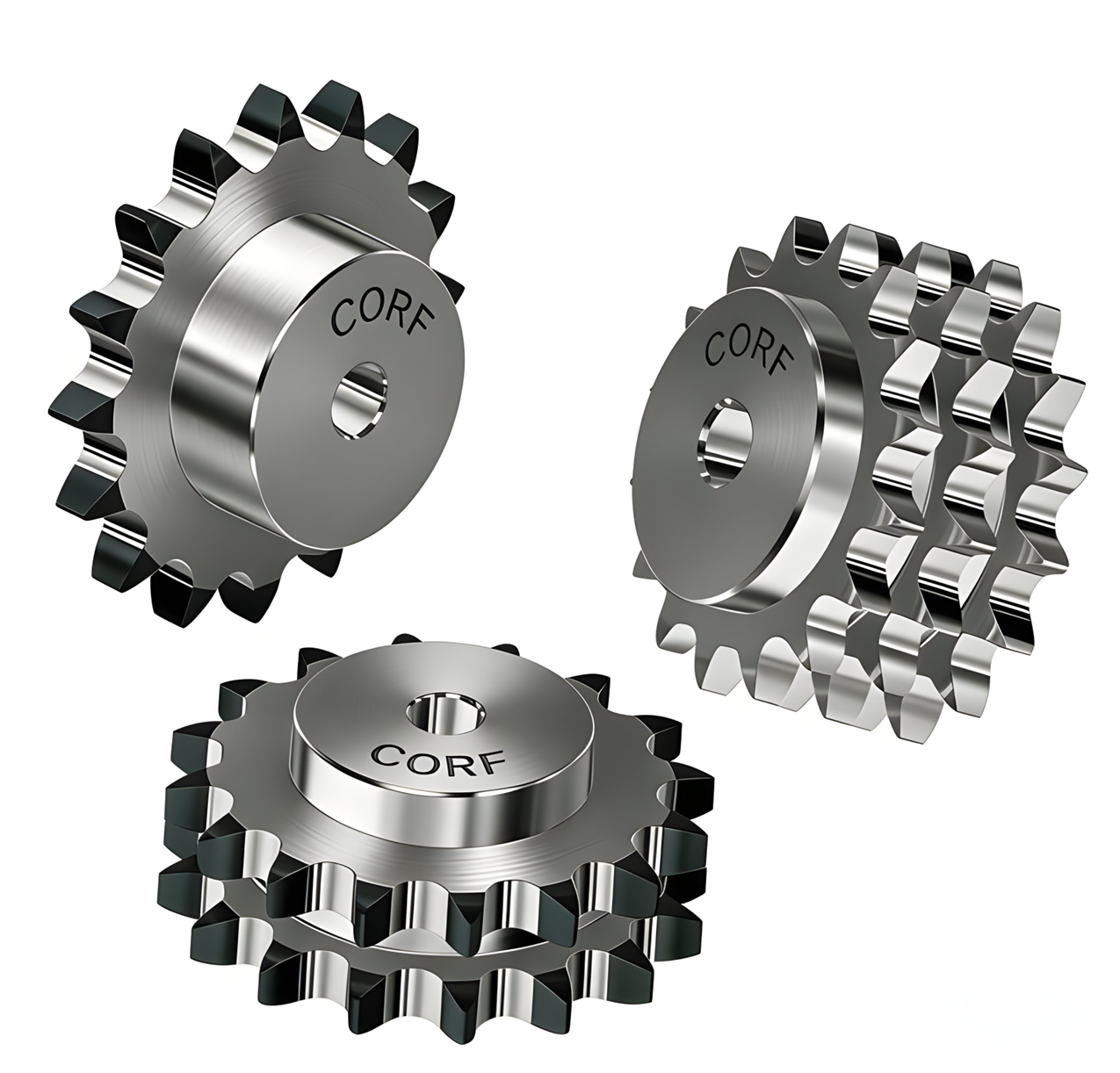

06B-1B&2B&3B

Name: 06B-1B&2B&3B
Brand: CORF TECHNOLOGY
Availability: InStock
Rating: 5 (1 reviews)

06B | 3/8" x 7/32" | 9,525 x 5,72 mm | Roller 6.35mm

CORF sprockets (Type B & Type C) with pilot bore meet strict European (EN) standards for precision, durability, and alignment in industrial power transmission, conveyors, and machinery. Customizable, premium-built, and quality-checked for reliable performance.

Features

Hub Extensions: Type B (hub extension – one side) / Type C (hub extension – both sides) for varied load/space needs.
Customizable: Client-approved drawings; fits multi-standards (ANSI, DIN, JIS, BS, SATI/MARTIN).
Materials: Steels (C45, SS304/316, 40Cr), engineering plastics (POM, PA6), brass, cast iron—matched to your application.

Durability: Advanced heat treatment (hardened teeth, carburizing) + surface finishes (black oxide, nickel plating) for wear/corrosion resistance.
Quality: 100% inspection at every stage ensures reliability.

GET A QUOTE

Description

Tooth width B1	5,3
Tooth width B2	15,4
Tooth width B3	25,6
Tooth width b1	5,2
Radius width C	1
Tooth radius r3	10

z	de	dp	Simplex					Duplex					Triplex
z	de	dp	CORF Code	dm	D1	A	kg/pc	CORF Code	dm	D2	A	kg/pc	CORF Code	dm	D3	A	kg/pc
8	28.6	24.89	06B1Z8	15	8	20	0.03	06B2Z8	15	8	25	0.04	06B3Z8	15	8	32	0.05
9	31.5	27.85	06B1Z9	18	8	20	0.04	06B2Z9	18	8	25	0.05	06B3Z9	18	8	32	0.07
10	34.5	30.82	06B1Z10	20	8	20	0.05	06B2Z10	20	8	25	0.07	06B3Z10	20	10	32	0.09
11	37.5	33.80	06B1Z11	22	8	25	0.08	06B2Z11	22	10	30	0.10	06B3Z11	22	12	35	0.11
12	40.5	36.80	06B1Z12	25	8	25	0.10	06B2Z12	25	10	30	0.13	06B3Z12	25	12	35	0.15
13	43.5	39.80	06B1Z13	28	8	25	0.13	06B2Z13	28	10	30	0.16	06B3Z13	28	12	35	0.19
14	46.5	42.80	06B1Z14	31	8	25	0.16	06B2Z14	31	10	30	0.20	06B3Z14	31	12	35	0.23
15	49.5	45.81	06B1Z15	34	8	25	0.19	06B2Z15	34	10	30	0.24	06B3Z15	34	12	35	0.28
16	52.5	48.82	06B1Z16	37	10	28	0.24	06B2Z16	37	12	30	0.27	06B3Z16	37	12	35	0.33
17	55.5	51.83	06B1Z17	40	10	28	0.28	06B2Z17	40	12	30	0.32	06B3Z17	40	12	35	0.39
18	58.6	54.85	06B1Z18	43	10	28	0.33	06B2Z18	43	12	30	0.38	06B3Z18	43	12	35	0.45
19	61.6	57.87	06B1Z19	45	10	28	0.36	06B2Z19	46	12	30	0.42	06B3Z19	46	12	35	0.51
20	64.6	60.89	06B1Z20	46	10	28	0.39	06B2Z20	49	12	30	0.48	06B3Z20	49	12	35	0.58
21	67.6	63.91	06B1Z21	48	12	28	0.42	06B2Z21	52	16	30	0.52	06B3Z21	52	16	40	0.70
22	70.6	66.93	06B1Z22	50	12	28	0.46	06B2Z22	55	16	30	0.58	06B3Z22	55	16	40	0.78
23	73.7	69.95	06B1Z23	52	12	28	0.50	06B2Z23	58	16	30	0.64	06B3Z23	58	16	40	0.87
24	76.7	72.97	06B1Z24	54	12	28	0.54	06B2Z24	61	16	30	0.71	06B3Z24	61	16	40	0.97
25	79.7	76.00	06B1Z25	57	12	28	0.60	06B2Z25	64	16	30	0.79	06B3Z25	64	16	40	1.06
26	82.7	79.02	06B1Z26	60	12	28	0.66	06B2Z26	67	16	30	0.87	06B3Z26	67	16	40	1.17
27	85.7	82.04	06B1Z27	60	12	28	0.67	06B2Z27	70	16	30	0.94	06B3Z27	70	16	40	1.27
28	88.8	85.07	06B1Z28	60	12	28	0.69	06B2Z28	73	16	30	1.03	06B3Z28	73	16	40	1.39
29	91.8	88.09	06B1Z29	60	12	28	0.70	06B2Z29	76	16	30	1.11	06B3Z29	76	16	40	1.50
30	94.8	91.12	06B1Z30	60	12	30	0.72	06B2Z30	79	16	30	1.20	06B3Z30	79	16	40	1.62
31	97.9	94.15	06B1Z31	65	14	30	0.87	06B2Z31	80	16	30	1.27	06B3Z31	80	16	40	1.72
32	100.9	97.17	06B1Z32	65	14	30	0.89	06B2Z32	80	16	30	1.32	06B3Z32	80	16	40	1.80
33	103.9	100.20	06B1Z33	65	14	30	0.91	06B2Z33	80	16	30	1.37	06B3Z33	80	16	40	1.89
34	106.9	103.23	06B1Z34	65	14	30	0.92	06B2Z34	80	16	30	1.43	06B3Z34	85	16	40	2.06
35	110.0	106.26	06B1Z35	65	14	30	0.95	06B2Z35	80	16	30	1.49	06B3Z35	85	16	40	2.15
36	113.0	109.29	06B1Z36	70	16	30	1.05	06B2Z36	90	16	30	1.70	06B3Z36	90	16	40	2.33
37	116.0	112.32	06B1Z37	70	16	30	1.09	06B2Z37	90	16	30	1.76	06B3Z37	90	16	40	2.43
38	119.0	115.34	06B1Z38	70	16	30	1.10	06B2Z38	90	16	30	1.81	06B3Z38	90	16	40	2.53
39	122.1	118.37	06B1Z39	70	16	30	1.12	06B2Z39	90	16	30	1.88	06B3Z39	90	16	40	2.63
40	125.1	121.40	06B1Z40	70	16	30	1.14	06B2Z40	90	16	30	1.95	06B3Z40	90	16	40	2.74
42	132.1	127.46	06B1Z42	*78	16	35	1.56	06B2Z42	*88	20	50	2.44	06B3Z42
45	141.1	136.54	06B1Z45	*78	16	35	1.66	06B2Z45	*88	20	50	3.15	06B3Z45	*88	20	60	4.15
46	144.2	139.58	06B1Z46	*78	16	35	1.67	06B2Z46					06B3Z46
48	150.2	145.64	06B1Z48	*78	16	35	1.75	06B2Z48	*88	20	50	3.43	06B3Z48
50	156.3	151.69	06B1Z50	*78	20	35	1.80	06B2Z50	*88	20	50	3.53	06B3Z50	*88	20	60	4.80
55	171.4	166.85	06B1Z55	*78	20	35	1.89	06B2Z55					06B3Z55
57	177.5	172.91	06B1Z57	*78	20	35	1.96	06B2Z57	*88	20	50	4.16	06B3Z57	*88	25	60	5.80
60	186.6	181.99	06B1Z60	*78	20	35	2.03	06B2Z60	*88	20	50	4.45	06B3Z60	*88	25	60	6.21
76	235.1	230.49	06B1Z76	*78	20	35	2.67	06B2Z76	*88	25	50	6.23	06B3Z76	*88	25	60	9.26
95	292.7	288.08	06B1Z95	*88	25	40	4.06	06B2Z95	*108	25	50	9.76	06B3Z95	*120	25	60	15.18
