04B-1B

Name: 04B-1B
Brand: CORF TECHNOLOGY
Availability: InStock
Rating: 5 (1 reviews)

04 - 1 | 6 x 2,8 mm | Roller 4 mm

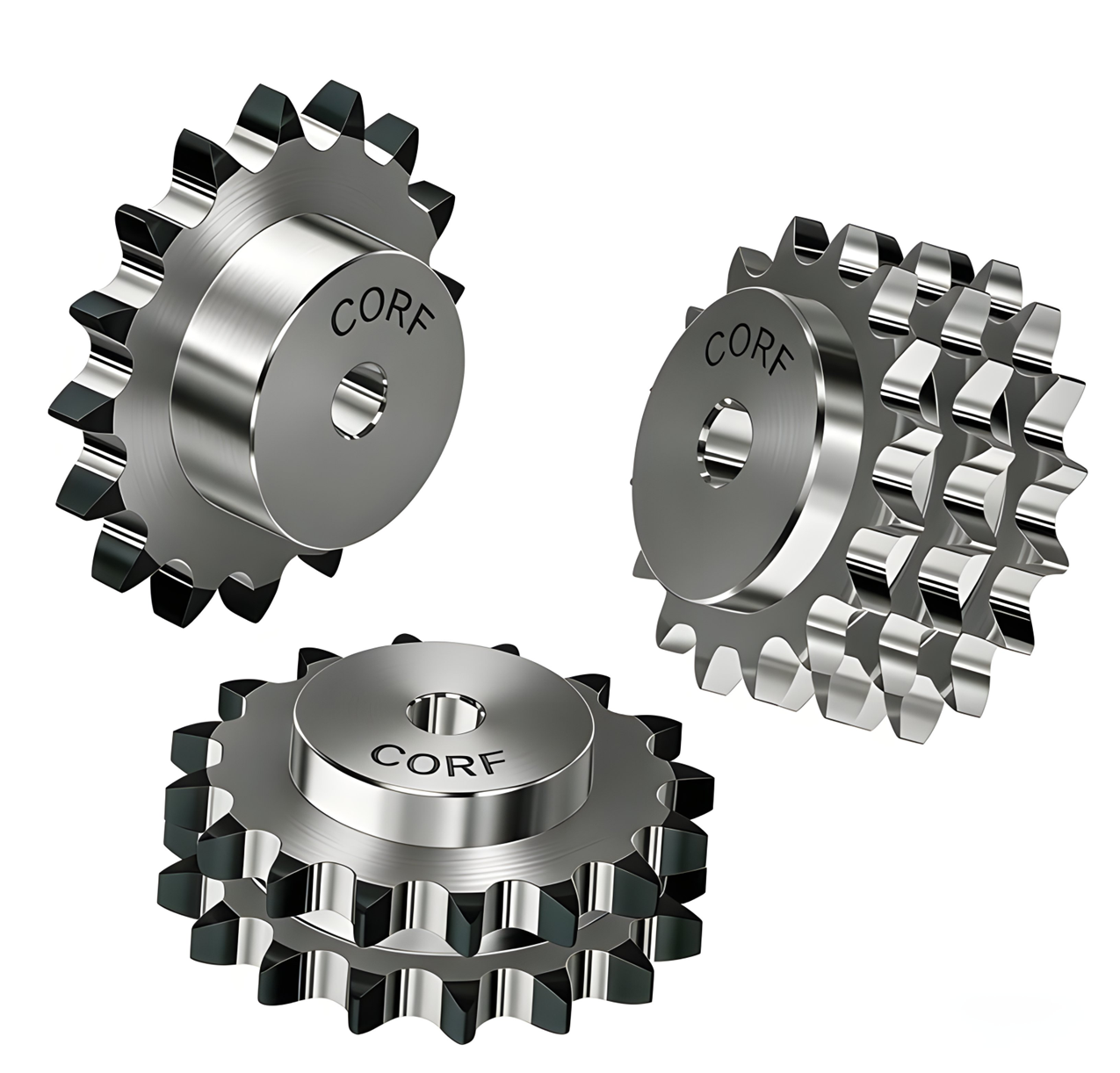

CORF sprockets (Type B & Type C) with pilot bore meet strict European (EN) standards for precision, durability, and alignment in industrial power transmission, conveyors, and machinery. Customizable, premium-built, and quality-checked for reliable performance.

Features

Hub Extensions: Type B (hub extension – one side) / Type C (hub extension – both sides) for varied load/space needs.
Customizable: Client-approved drawings; fits multi-standards (ANSI, DIN, JIS, BS, SATI/MARTIN).
Materials: Steels (C45, SS304/316, 40Cr), engineering plastics (POM, PA6), brass, cast iron—matched to your application.

Durability: Advanced heat treatment (hardened teeth, carburizing) + surface finishes (black oxide, nickel plating) for wear/corrosion resistance.
Quality: 100% inspection at every stage ensures reliability.

GET A QUOTE

Description

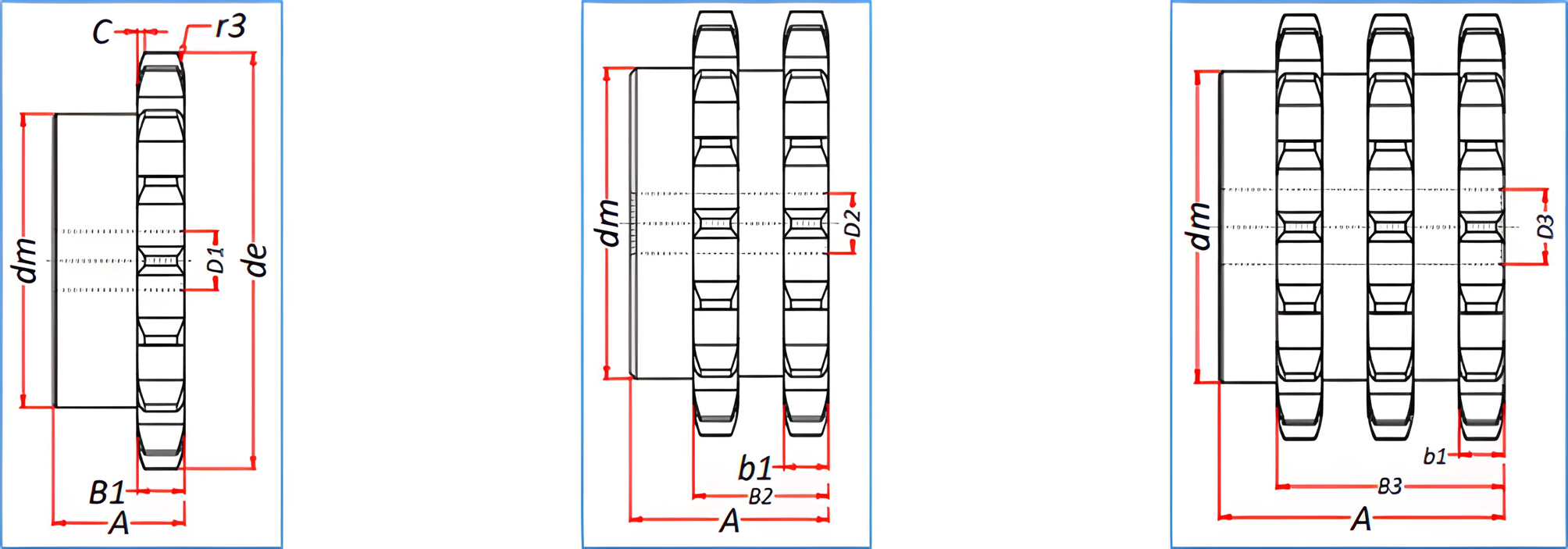

Tooth width B1	2,6
Tooth width B2
Tooth width B3
Tooth width b1
Radius width C	0,6
Tooth radius r3	6

z	de	dp	Simplex					Duplex					Triplex
z	de	dp	CORF Code	dm	D1	A	kg/pc	CORF Code	dm	D2	A	kg/pc	CORF Code	dm	D3	A	kg/pc
8	18.0	15.67	04B1Z8	98	5	10	0.01
9	19.9	17.54	04B1Z9	115	5	10	0.01
10	21.7	19.42	04B1Z10	13	6	10	0.01
11	23.6	21.30	04B1Z11	14	6	10	0.01
12	25.4	23.18	04B1Z12	16	6	10	0.02
13	27.3	25.05	04B1Z13	18	6	10	0.02
14	29.2	26.96	04B1Z14	20	6	10	0.03
15	31.1	28.86	04B1Z15	20	6	10	0.03
16	33.0	30.76	04B1Z16	20	8	13	0.03
17	35.0	32.65	04B1Z17	20	8	13	0.04
18	36.9	34.55	04B1Z18	20	8	13	0.04
19	38.8	36.44	04B1Z19	20	8	13	0.04
20	40.7	38.34	04B1Z20	20	8	13	0.04
21	42.6	40.25	04B1Z21	25	8	13	0.06
22	44.5	42.16	04B1Z22	25	8	13	0.06
23	46.4	44.06	04B1Z23	25	8	13	0.06
24	48.3	45.96	04B1Z24	25	8	13	0.07
25	50.2	47.87	04B1Z25	25	8	13	0.07
26	52.1	49.77	04B1Z26	30	8	15	0.10
27	54.0	51.67	04B1Z27	30	8	15	0.10
28	55.9	53.58	04B1Z28	30	8	15	0.11
29	57.8	55.50	04B1Z29	30	8	15	0.11
30	59.8	57.42	04B1Z30	30	8	15	0.11
31	61.7	59.31	04B1Z31	30	10	15	0.11
32	63.6	61.21	04B1Z32	30	10	15	0.12
33	65.5	63.11	04B1Z33	30	10	15	0.12
34	67.4	65.02	04B1Z34	30	10	15	0.12
35	69.3	66.93	04B1Z35	30	10	15	0.13
36	71.2	68.84	04B1Z36	30	10	15	0.13
37	73.1	70.75	04B1Z37	30	10	15	0.14
38	75.0	72.66	04B1Z38	30	10	15	0.14
39	76.9	74.56	04B1Z39	30	10	15	0.14
40	78.9	76.47	04B1Z40	30	10	15	0.15
45	88.5	86.01	04B1Z45	62	12	18	0.46
48	94.2	91.74	04B1Z48	62	12	18	0.48
50	98.0	95.55	04B1Z50	62	12	18	0.49
57	111.4	108.93	04B1Z57	62	12	18	0.53
60	117.5	114.62	04B1Z60	*62	12	20	0.68
76	148.1	145.19	04B1Z76	*80	16	34	1.58
