JIS 160 · 50,80 mm (2") pitch

Description

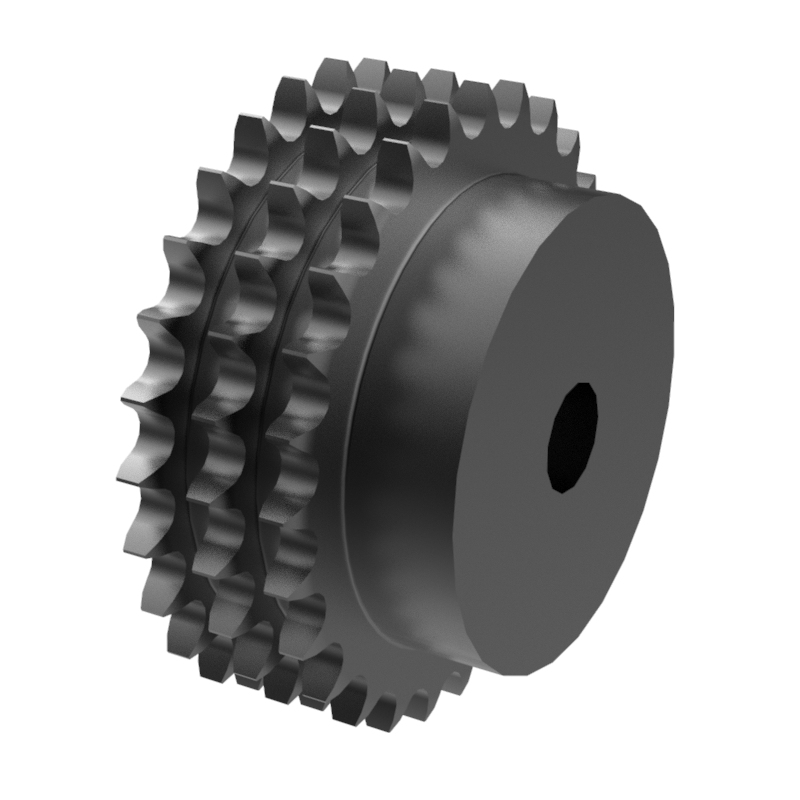

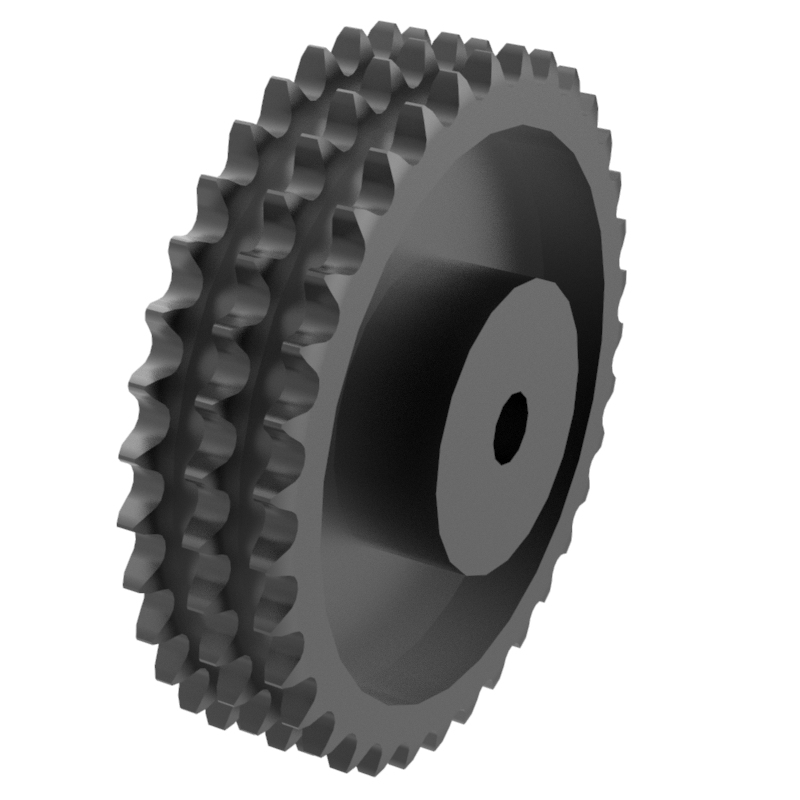

Sprocket for simplex, duplex and triplex chain to: DIN 8188 - ISO/R 606 - ANSI B 29,1

Sprocket Data	Metric
B1:	29.30
b1:	28.40
B2:	86.90

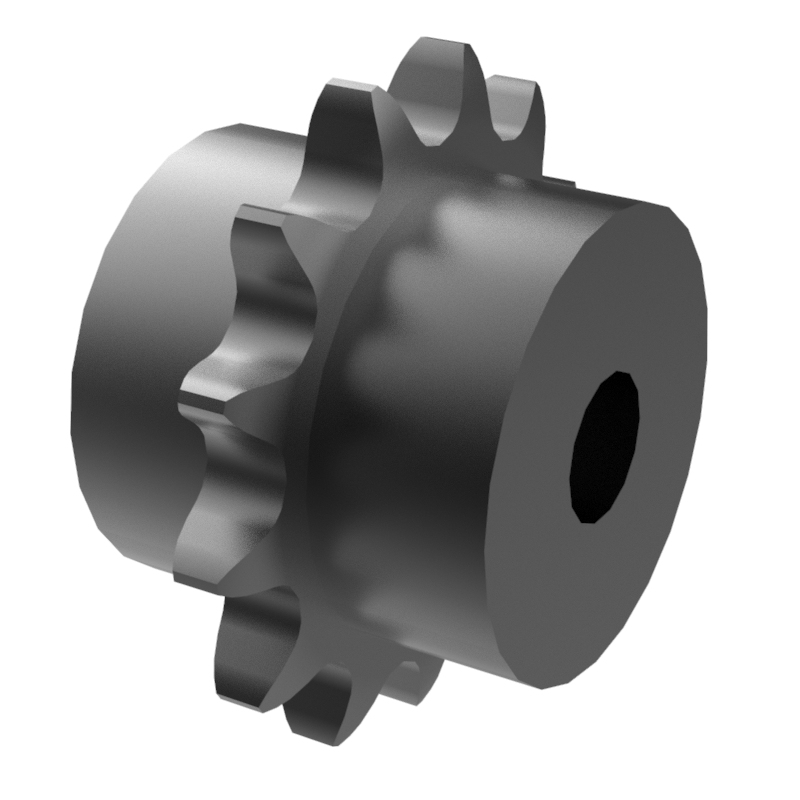

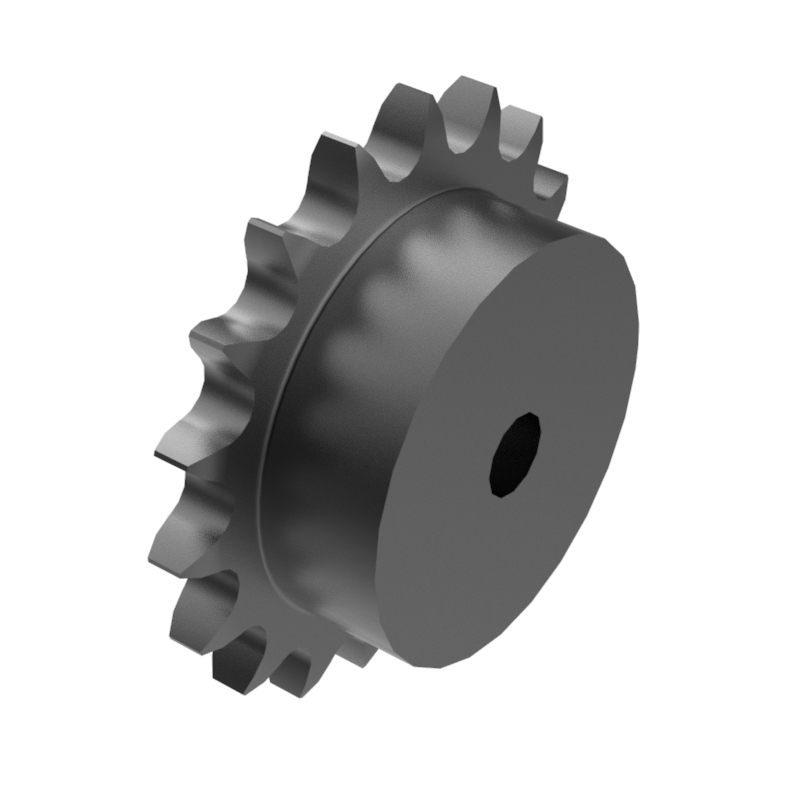

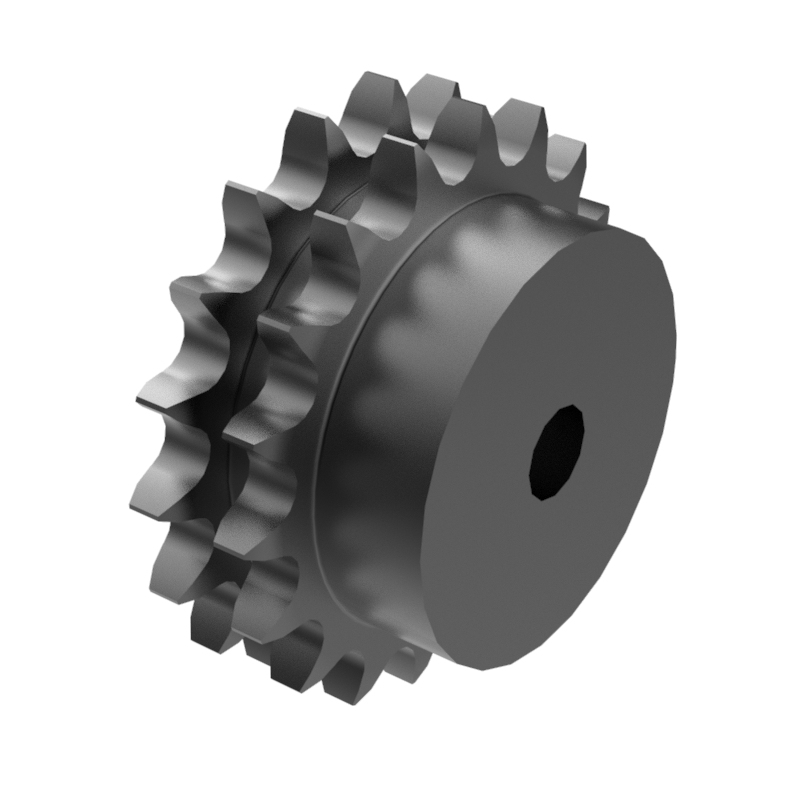

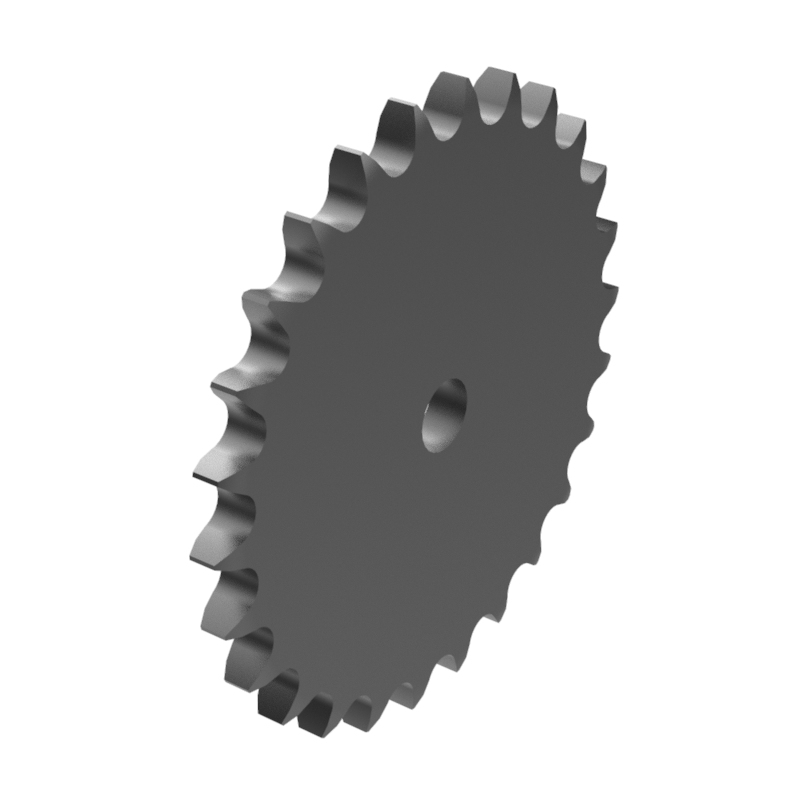

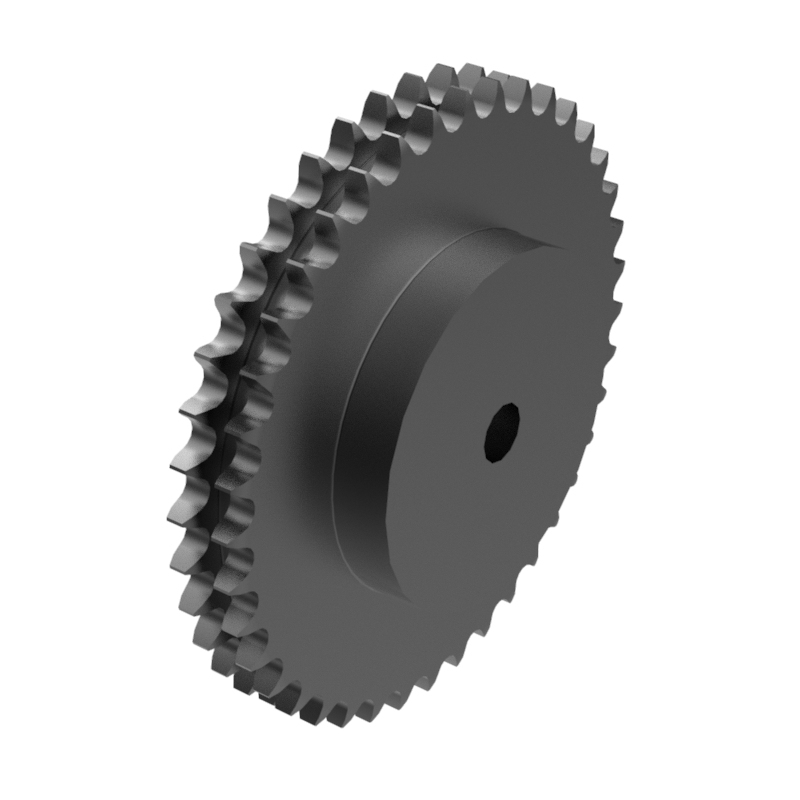

No. Teeth	OD	PD	Single sprocket with hub on one side (B type)				Flat plain (A type)		Double sprocket with hub on one side (B type), Both Sides (C type)
No. Teeth	OD	PD	dm1	D1	A1	Approx. Weight.Kg	D1	Approx. Weight.Kg	Type	No. Teeth	OD	PD	dm2	D2 Min.	A2	Approx. Weight.Kg
10	186	164.39	105	25	63	6.80	25	4.80	B	13	237	212.27	155	45	120	23.90
11	204	180.31	117	25	63	8.30	25	5.79		14	253	228.30	165	45	120	27.70
12	220	196.28	127	25	63	9.90	25	6.86		15	269	244.33	180	45	120	32.30
13	237	212.27	137	25	71	12.50	25	8.03		16	286	260.39	195	50	140	41.50
14	253	228.30	137	25	71	13.80	25	9.28		17	302	276.46	210	60	150	49.30
15	269	244.33	137	30	71	15.20	30	10.63		18	319	292.55	225	60	160	59.20
16	286	260.39	147	30	71	17.40	30	12.08		19	335	308.64	240	65	170	69.80
17	302	276.46	147	30	71	18.97	30	13.61		20	351	324.74	260	65	180	84.20
18	319	292.55	147	30	71	20.62	30	15.23		21	368	340.84	260	65	180	89.80
19	335	308.64	147	30	71	22.38	30	16.95	C	22	384	356.95	260	65	180	95.70
20	351	324.74	147	30	71	24.20	30	18.75		24	416	389.19	260	65	180	108.00
21	368	340.84	147	30	71	26.10	30	20.65		26	449	421.45				141.00
22	384	356.96	167	35	80	30.20	35	22.64		30	514	485.99				121.00
24	416	389.19	167	35	80	34.40	35	26.90		32	546	518.28	180	85	130	128.00
25	433	405.32	167	35	80	36.60	35	29.16		35	595	566.71	225	110	170	138.00
26	449	421.45	167	35	80	38.40	35	31.52		38	644	615.17	270	145	200	150.00
30	514	485.99	167	35	100	52.30	35	41.86		40	676	647.47				157.00
32	546	518.28	167	35	100	62.00	35	47.95		45	757	728.25				214.00
35	595	566.71	167	35	100	66.90	35	57.24		50	838	809.04				238.00
40	676	647.47	167	35	112	85.80	35	74.57		55	919	889.84				264.00
45	757	728.25	187	35	125	92.40	35	94.71		60	1000	970.65	180	85	130	293.00
48	806	776.72	187	35	125		35	107.61		65	1081	1051.47	225	110	170	322.00
60	1000	970.65	187	35	125	135.40	35	168.14		70	1162	1132.29	270	145	200	352.00
										75	1243	1213.11	340	180	235	386.00
										80	1323	1293.94				420.00
										90	1485	1455.61				502.00
