| Pitch | Z | Outside Dia |
Pitch Dia |
Type | Bushing No. |
Bore | Plate thickness |
kg/pc | Catalog No. |
|||||

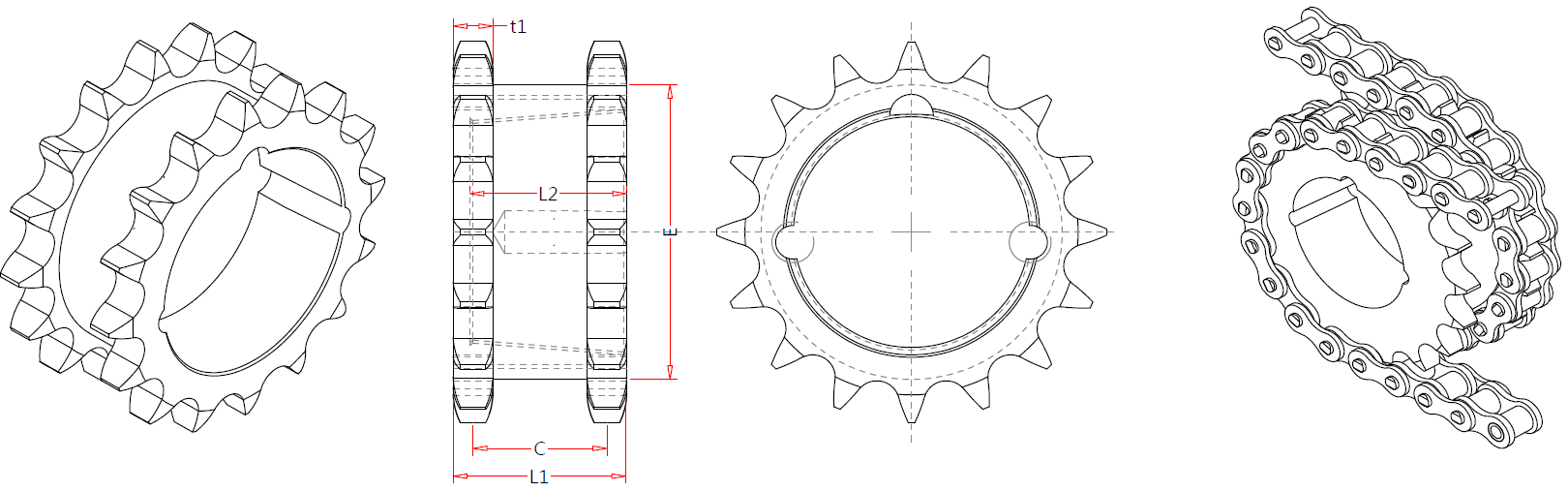

| OD | PD | Min. | Max. | L1 | C | E | L2 | t1 | ||||||
| mm | mm | mm | -- | mm | mm | mm | mm | mm | mm | mm | kg | |||

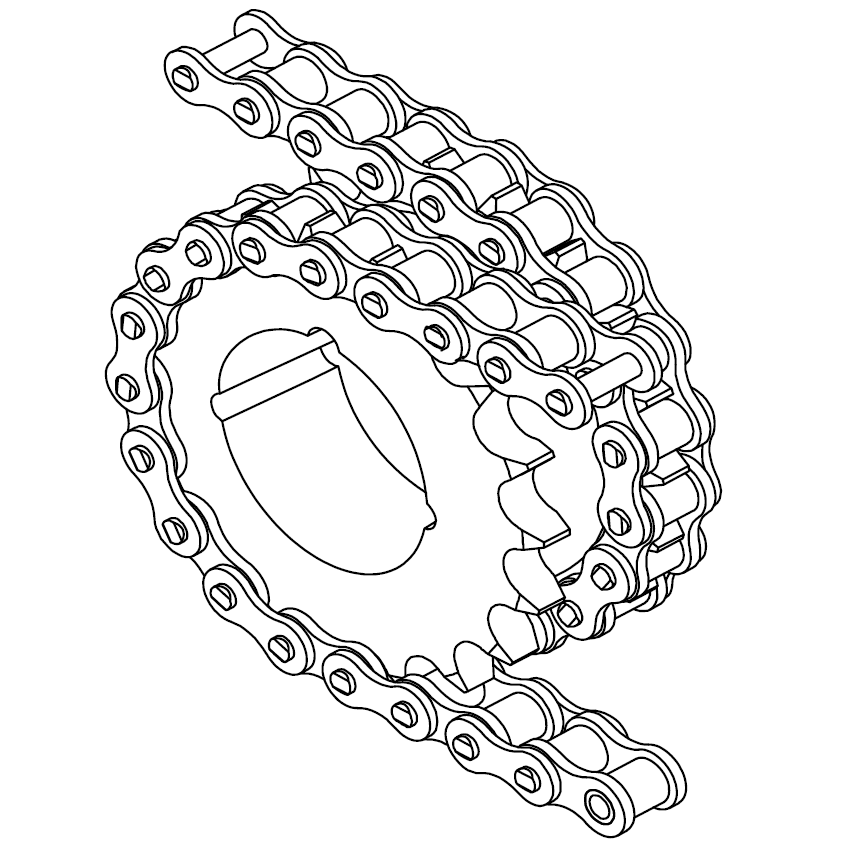

| 31.75 | 15 | 167.90 | 152.72 | A | 2517 | 16 | 60 | 68.30 | 49.80 | 115 | 44.5 | 18.50 | 4.20 | 20B DS TL 15 |
| 16 | 177.90 | 162.75 | A | 2517 | 16 | 60 | 68.30 | 49.80 | 127 | 44.5 | 18.50 | 5.91 | 20B DS TL 16 | |
| 17 | 172.80 | 172.78 | A | 3020 | 25 | 75 | 68.30 | 49.80 | 137 | 50.8 | 18.50 | 6.36 | 20B DS TL 17 | |
| 18 | 182.83 | 182.85 | A | 3020 | 25 | 75 | 68.30 | 49.80 | 147 | 50.8 | 18.50 | 7.27 | 20B DS TL 18 | |
| 19 | 192.91 | 192.91 | A | 3020 | 25 | 75 | 68.30 | 49.80 | 157 | 50.8 | 18.50 | 9.09 | 20B DS TL 19 | |
| 20 | 218.10 | 202.98 | A | 3020 | 25 | 75 | 68.30 | 49.80 | 167 | 50.8 | 18.50 | 10.85 | 20B DS TL 20 | |
| 21 | 228.28 | 213.03 | A | 3020 | 25 | 75 | 68.30 | 49.80 | 177 | 50.8 | 18.50 | 12.50 | 20B DS TL 21 | |
