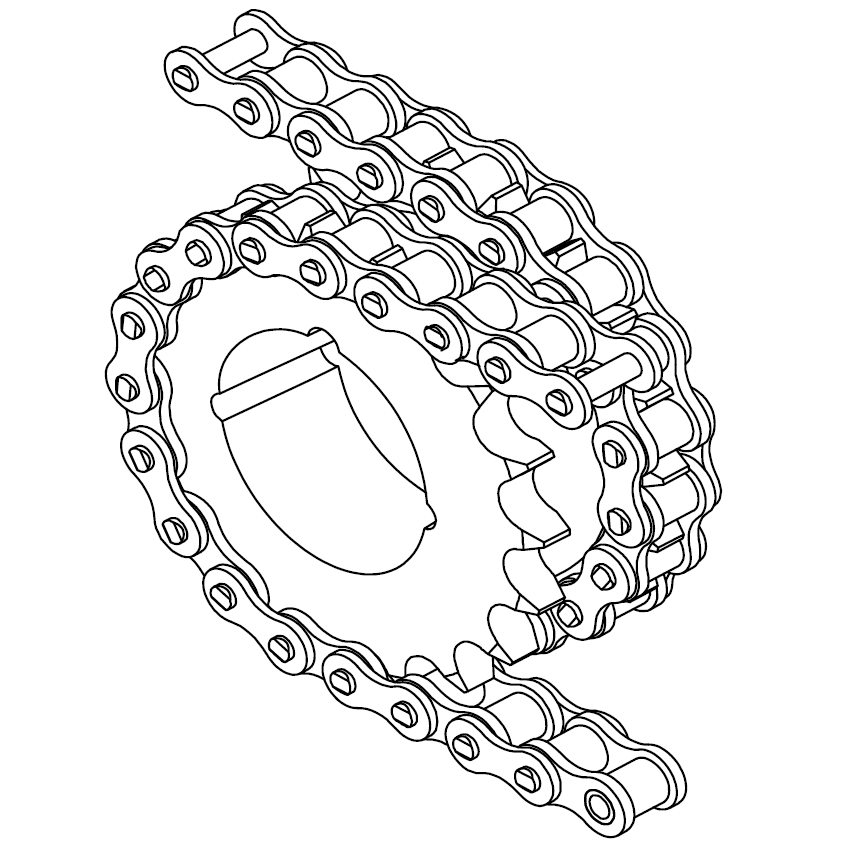

| Pitch | Z | Outside Dia |
Pitch Dia |
Type | Bushing No. |
Bore | Plate thickness |
kg/pc | Catalog No. |
|||||
| OD | PD | Min. | Max. | L1 | C | E | L2 | t1 | ||||||
| mm | mm | mm | -- | mm | mm | mm | mm | mm | mm | mm | kg | |||
| 19.05 | 12 | 81.50 | 73.61 | A | 1215 | 11 | 32 | 49.20 | 38.10 | 19.05 | 11.0 | 11.10 | 32.00 | 12B DS TL 12 |
| 13 | 87.50 | 79.59 | A | 1215 | 11 | 32 | 49.20 | 38.10 | 19.05 | 11.0 | 11.10 | 32.00 | 12B DS TL 13 | |
| 14 | 93.60 | 85.62 | A | 1215 | 11 | 32 | 49.20 | 38.10 | 19.05 | 11.0 | 11.10 | 32.00 | 12B DS TL 14 | |
| 15 | 99.80 | 91.61 | A | 1615 | 14 | 42 | 49.20 | 38.10 | 19.05 | 14.0 | 11.10 | 42.00 | 12B DS TL 15 | |
| 16 | 105.50 | 97.63 | A | 1615 | 14 | 42 | 49.20 | 38.10 | 19.05 | 14.0 | 11.10 | 42.00 | 12B DS TL 16 | |
| 17 | 111.50 | 103.67 | A | 1615 | 14 | 42 | 49.20 | 38.10 | 19.05 | 14.0 | 11.10 | 42.00 | 12B DS TL 17 | |
| 18 | 118.00 | 109.71 | A | 2012 | 14 | 50 | 49.20 | 38.10 | 19.05 | 14.0 | 11.10 | 50.00 | 12B DS TL 18 | |
| 19 | 124.20 | 115.75 | A | 2012 | 14 | 50 | 49.20 | 38.10 | 19.05 | 14.0 | 11.10 | 50.00 | 12B DS TL 19 | |
| 20 | 129.70 | 121.78 | A | 2517 | 16 | 65 | 49.20 | 38.10 | 19.05 | 16.0 | 11.10 | 65.00 | 12B DS TL 20 | |
| 21 | 136.00 | 127.82 | A | 2517 | 16 | 65 | 49.20 | 38.10 | 19.05 | 16.0 | 11.10 | 65.00 | 12B DS TL 21 | |
| 22 | 141.80 | 133.86 | A | 2517 | 16 | 65 | 49.20 | 38.10 | 19.05 | 16.0 | 11.10 | 65.00 | 12B DS TL 22 | |
| 23 | 149.00 | 139.90 | A | 2517 | 16 | 65 | 49.20 | 38.10 | 19.05 | 16.0 | 11.10 | 65.00 | 12B DS TL 23 | |
| 24 | 153.90 | 145.94 | A | 2517 | 16 | 65 | 49.20 | 38.10 | 19.05 | 16.0 | 11.10 | 65.00 | 12B DS TL 24 | |
| 25 | 160.30 | 151.94 | A | 2517 | 16 | 65 | 49.20 | 38.10 | 19.05 | 16.0 | 11.10 | 65.00 | 12B DS TL 25 | |
