Corone doppie per due catene semplici
Duplex plate wheels for two single chains
Zweifach-Scheiben für zwei Einfach-Ketten
Disques doubles pour deux chaines simples
Discos dobles para dos cadenas simples

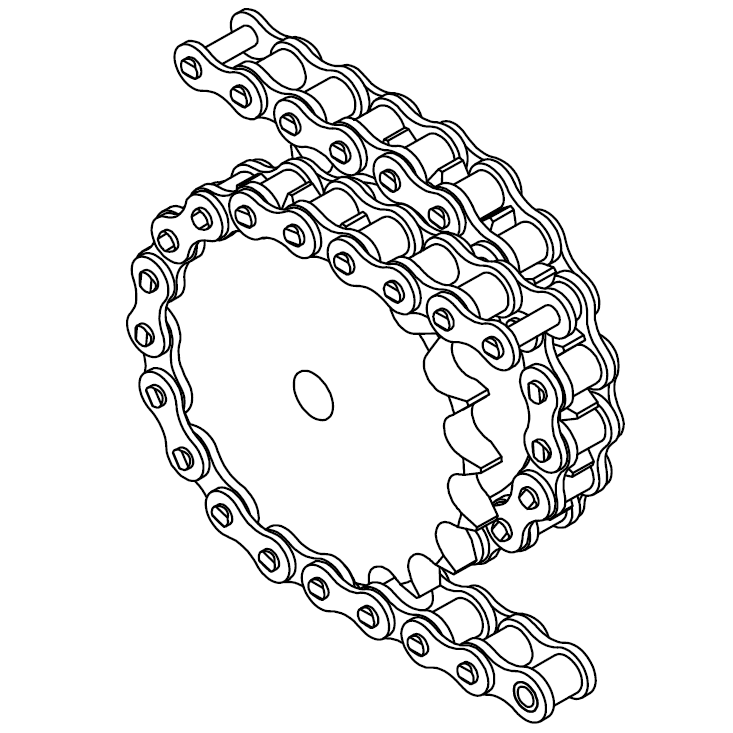

ANSI 60-1 · 19,05 mm (3/4") pitch DS
| Z |
Outside
Dia |
Pitch
Dia |
Type |
Bore |
|
Plate
thickness |
kg/pc |
Catalog
No. |
| OD |
PD |
Min. |
Max. |
L |
C |
E |
t1 |
| -- |
mm |
mm |
-- |
mm |
mm |
mm |
mm |
mm |
mm |
kg |
-- |
| 13 |
88.7 |
79.5 |
A |
19.05 |
31.75 |
49.21 |
37.70 |
59.53 |
11.70 |
1.20 |
60 |
DS |
13 |
| 14 |
95.0 |
85.6 |
A |
19.05 |
33.34 |
49.21 |
37.70 |
65.09 |
11.70 |
1.50 |
60 |
DS |
14 |
| 15 |
101.1 |
91.7 |
A |
19.05 |
38.10 |
49.21 |
37.70 |
73.03 |
11.70 |
1.70 |
60 |
DS |
15 |
| 16 |
107.2 |
97.5 |
A |
19.05 |
42.86 |
49.21 |
37.70 |
77.39 |
11.70 |
2.00 |
60 |
DS |
16 |
| 17 |
113.3 |
103.6 |
A |
19.05 |
44.45 |
49.21 |
37.70 |
82.55 |
11.70 |
2.40 |
60 |
DS |
17 |
| 18 |
119.4 |
109.7 |
A |
19.05 |
47.63 |
49.21 |
37.70 |
88.90 |
11.70 |
3.00 |
60 |
DS |
18 |
| 19 |
125.7 |
115.8 |
A |
19.05 |
52.39 |
49.21 |
37.70 |
94.06 |
11.70 |
3.10 |
60 |
DS |
19 |
| 20 |
131.8 |
121.7 |
A |
19.05 |
57.15 |
49.21 |
37.70 |
100.41 |
11.70 |
3.20 |
60 |
DS |
20 |
| 21 |
137.9 |
127.8 |
A |
19.05 |
69.85 |
49.21 |
37.70 |
106.36 |
11.70 |
3.40 |
60 |
DS |
21 |
| 22 |
144.0 |
133.9 |
A |
19.05 |
69.85 |
49.21 |
37.70 |
112.71 |
11.70 |
5.00 |
60 |
DS |
22 |
| 23 |
150.1 |
140.0 |
A |
19.05 |
69.85 |
49.21 |
37.70 |
118.27 |
11.70 |
5.20 |
60 |
DS |
23 |
| 24 |
156.2 |
146.1 |
A |
19.05 |
69.85 |
49.21 |
37.70 |
131.76 |
11.70 |
5.40 |
60 |
DS |
24 |
|
|
