ANSI 60 · 19,05 mm (3/4") pitch

Description

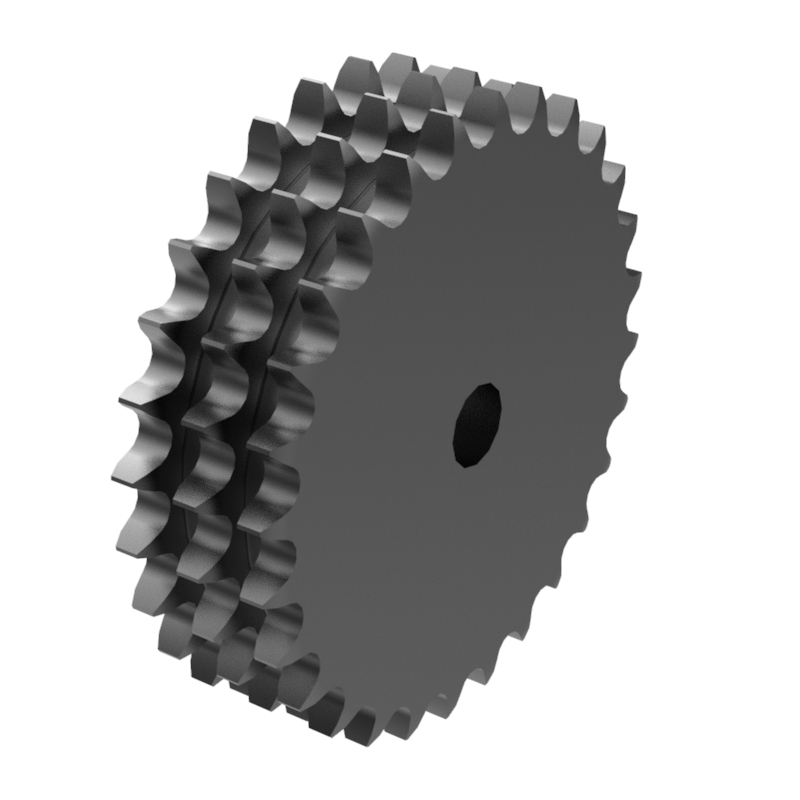

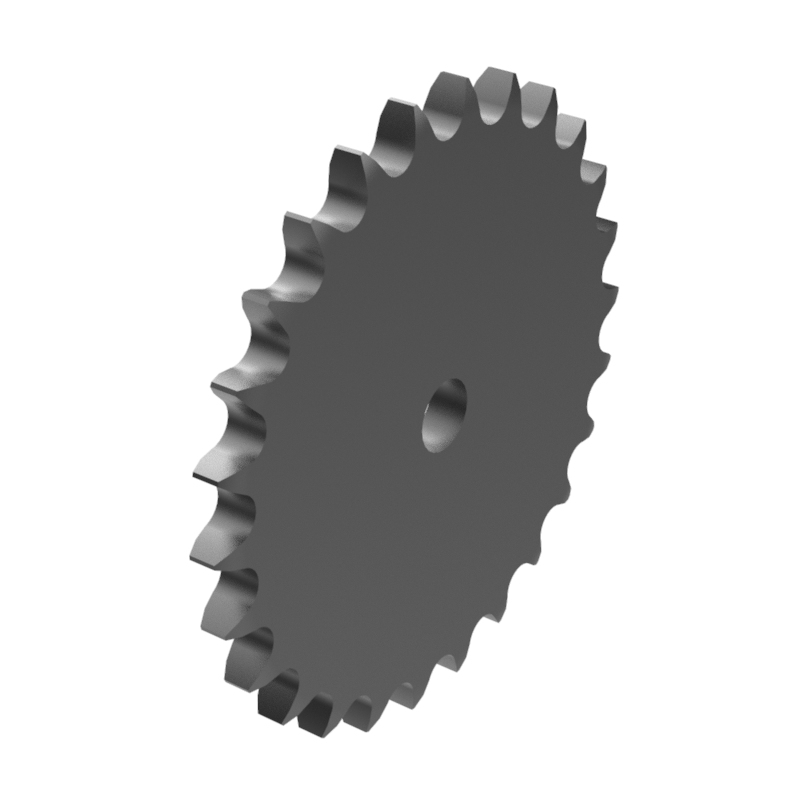

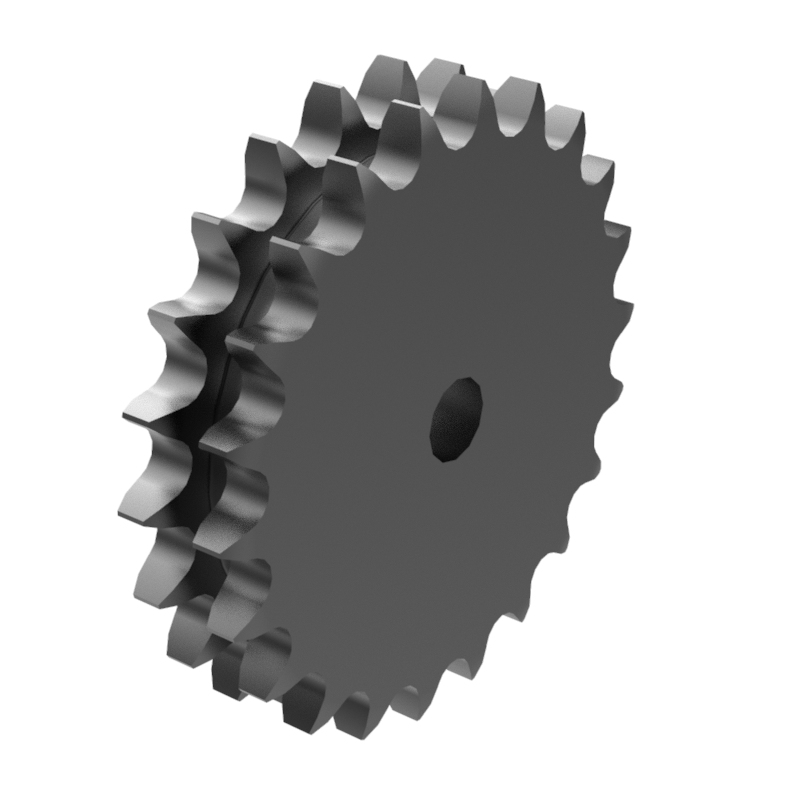

Plate wheels for simplex, duplex and triplex chain to: DIN 8188 - ISO/R 606 - ANSI B 29,1
Discos para cadena simple, doble y triple de rodillos segun: DIN 8188 - ISO/R 606 - ANSI B 29,1
Corone per catene semplici, doppie e triple a rulli secondo: DIN 8188 - ISO/R 606 - ANSI B 29,1
Kettenradscheiben mit einseitiger Nabe für Simplex- Duplex- Triplex-Rollenkette nach: DIN 8188 - ISO/R 606 - ANSI B 29,1
Disques avec moyeu déporté pour chaînes simples, doubles et triples à rouleaux suivant les normes: DIN 8188 - ISO/R 606 - ANSI B 29,1

Sprocket Data	Inch	Metric
B1:	0.459	11.70
b1:	0.444	11.30
B2:	1.341	34.10
b1:	0.444	11.30
B3:	2.238	56.85

Teeth	Outer Dia de		Simplex		Duplex		Triplex
	Outer Dia de		Inch bore	Metric bore	Inch bore	Metric bore	Inch bore	Metric bore
	Inch	Metric	D1	D1	D1	D1	D1	D1
8	2.26	57.40	5/8	12	-	12	-	16
9	2.51	63.75	3/4	12	-	12	-	16
10	2.76	70.10	3/4	12	-	12	-	16
11	3.00	76.20	3/4	16	1	16	1	20
12	3.25	82.55	3/4	16	1	16	1	20
13	3.49	88.65	3/4	16	1	16	1	20
14	3.74	95.00	3/4	16	1	16	1	20
15	3.98	101.09	3/4	16	1	16	1	20
16	4.22	107.19	3/4	16	1	20	1	20
17	4.46	113.28	3/4	16	1	20	1	20
18	4.70	119.38	3/4	16	1	20	1	20
19	4.95	125.73	3/4	16	1	20	1	20
20	5.19	131.83	3/4	16	1	20	1	20
21	5.43	137.92	3/4	20	1	20	1	20
22	5.67	144.02	3/4	20	1	20	1	20
23	5.91	150.11	3/4	20	1	20	1	20
24	6.15	156.21	3/4	20	1	20	1	20
25	6.39	162.31	3/4	20	1	20	1	20
26	6.63	168.40	3/4	20	1	20	1	20
27	6.87	174.50	3/4	20	-	20	-	20
28	7.11	180.59	3/4	20	-	20	-	20
29	7.35	186.69	3/4	20	-	20	-	20
30	7.59	192.79	3/4	20	1	20	1	20
31	7.83	198.88	3/4	20	-	20	-	25
32	8.07	204.98	3/4	20	1.1/4	20	-	25
33	8.30	210.82	1	20	-	20	-	25
34	8.54	216.92	1	20	-	20	-	25
35	8.78	223.01	1	20	1.1/4	20	1.1/4	25
36	9.02	229.11	1	20	1.1/4	25	1.1/4	25
37	9.26	235.20	1	20	-	25	-	25
38	9.50	241.30	1	20	-	25	-	25
39	9.74	247.40	1	20	-	25	-	25
40	9.98	253.49	1	20	1.1/4	25	-	25
41	10.22	259.59	1	25	-	25	-
42	10.46	265.68	1	25	1.1/4	25	1.1/4
43	10.70	271.78	1	25	-	25	-
44	10.94	277.88	15/16	25	-	25	-
45	11.18	283.97	15/16	25	1.1/4	25	1.1/4	25
46	11.42	290.07	15/16	25	-	25	-
47	11.65	295.91	15/16	25	-	25	-
48	11.89	302.01	15/16	25	-	25	-
49	12.13	308.10	15/16	25	-	25	-
50	12.37	314.20	15/16	25	-	25	-	25
51	12.61	320.29	15/16	25	-	25	-
52	12.85	326.39	15/16	25	1.1/4	25	1.1/4
53	13.09	332.49	15/16	25	-	25	-
54	13.33	338.58	15/16	25	-	25	-
55	13.57	344.68	1.1/4	25	-	25	-
56	13.81	350.77	1.1/4	25	-	25	-
57	14.04	356.62	1.1/4	25	-	25	-	30
58	14.28	362.71	1.1/4	25	-	25	-
59	14.52	368.81	1.1/4	25	-	25	-
60	14.76	374.90	1.1/4	25	1.1/4	25	1.1/4	30
64	15.72	399.29	1.1/4	25	-	25	-
65	15.96	405.38	1.1/4	25	-	25	-
68	16.67	423.42	1.1/4	25	1.1/4	25	1.1/4
70	17.15	435.61	1.1/4	25	-	25	-
72	17.63	447.80	1.1/4	25	1.1/4	25	1.1/4
76	18.58	471.93	1.1/4	25	1.1/4	30	1.1/2	30
80	19.54	496.32	1.1/4		-	30	-
84	20.49	520.45	1.1/4		-	30	-
90	21.93	557.02	1.1/4		-	30	-
95	23.12	587.25	-		1.1/4	30	1.1/2	30
96	23.36	593.34	1.1/4	30	-		-
112	27.18	690.37	1.1/4		-		-
