Pignoni per bussole coniche
Taper bored sprockets
Kettenräder für Taper-Spannbuchsen
Pignons à moyeu amovible
Piñones para casquillos cónicos
DIN 8188 - ISO/R 606 - ANSI B 29,1

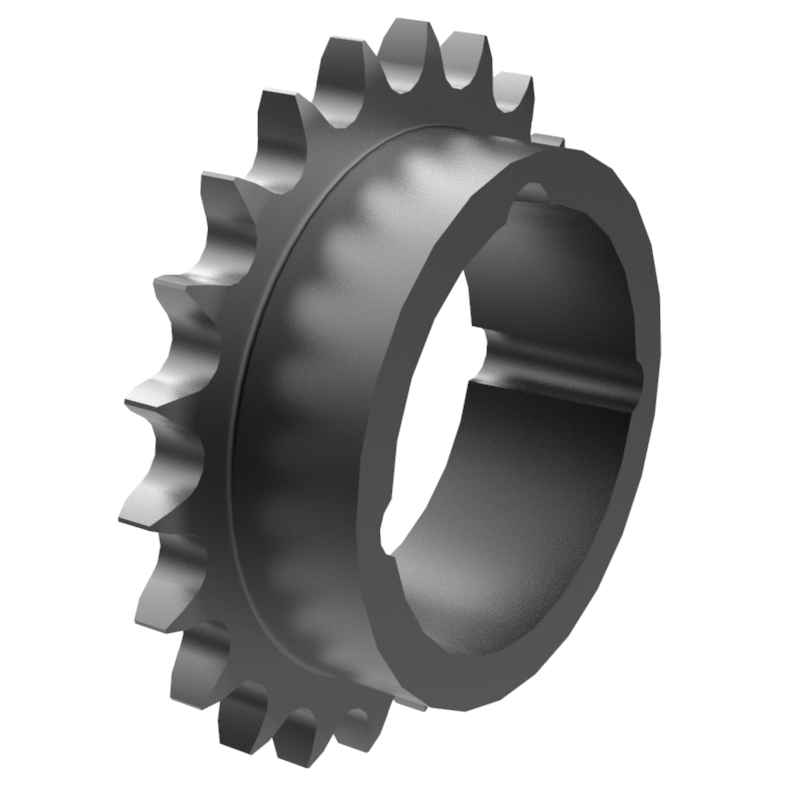

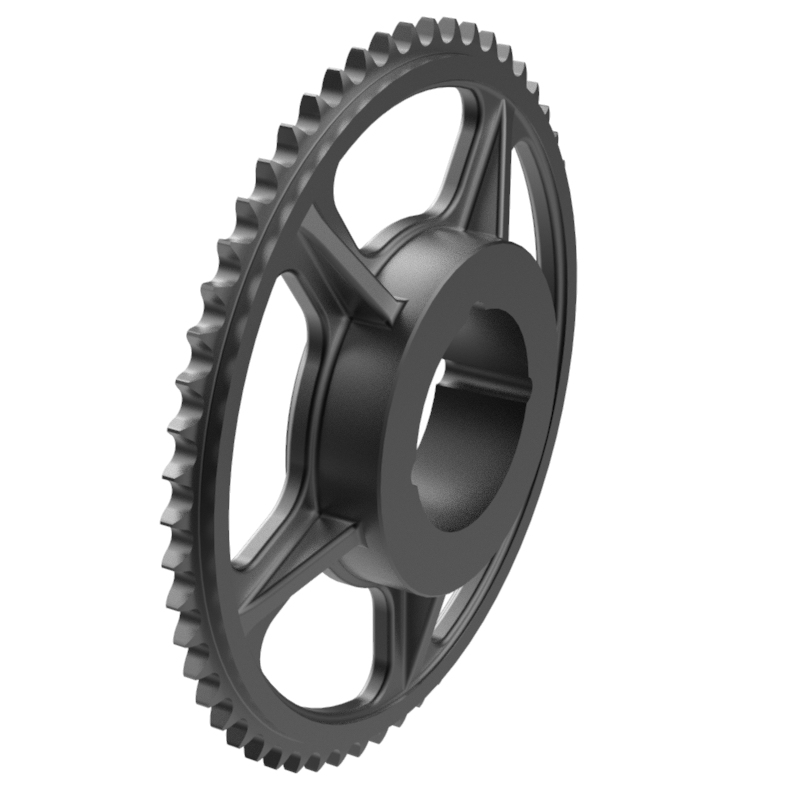

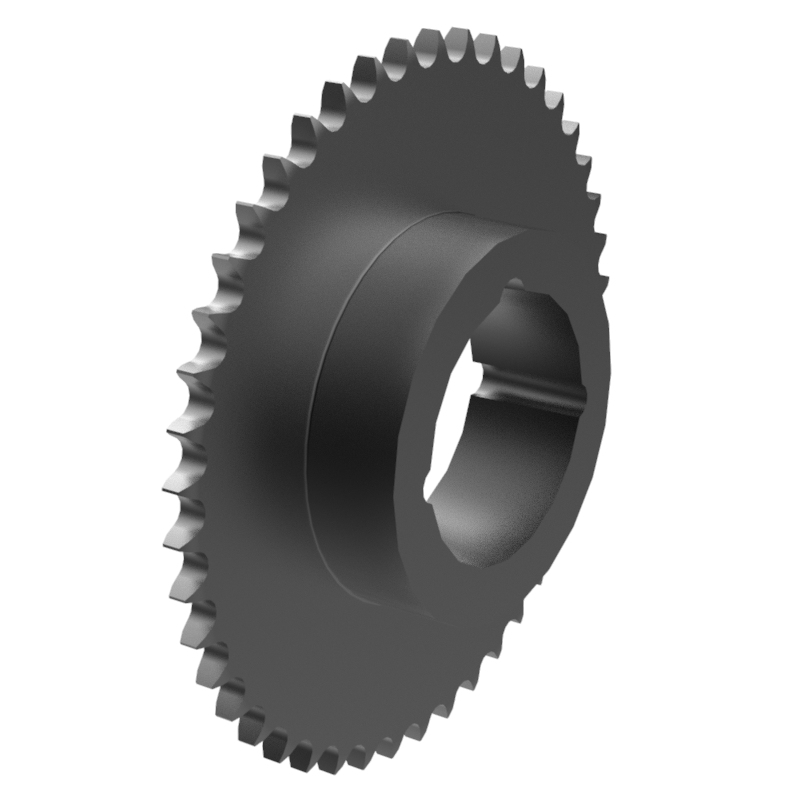

ANSI 50-1 · 15,88 mm (5/8") pitch TL
| Z |
Outside
Dia |
Pitch
Dia |
Type |
Bushing
No. |
Bore |
Hub |
Plate
thickness |
kg/pc |
Catalog
No. |
| OD |
PD |
Min. |
Max. |
L |
H |
t1 |
| -- |
mm |
mm |
-- |
-- |
mm |
mm |
mm |
mm |
mm |
kg |
-- |
| 12 |
68.8 |
61.5 |
B |
1008 |
9.53 |
25.40 |
22.23 |
49.21 |
8.70 |
0.20 |
50 |
B |
TL |
12 |
| 13 |
73.9 |
66.3 |
B |
1008 |
9.53 |
25.40 |
22.23 |
46.04 |
8.70 |
0.20 |
50 |
B |
TL |
13 |
| 14 |
79.0 |
71.4 |
B |
1008 |
9.53 |
25.40 |
22.23 |
49.21 |
8.70 |
0.30 |
50 |
B |
TL |
14 |
| 15 |
84.1 |
76.5 |
B |
1210 |
15.88 |
31.75 |
25.40 |
62.71 |
8.70 |
0.30 |
50 |
B |
TL |
15 |
| 16 |
89.4 |
81.3 |
B |
1610 |
12.70 |
41.28 |
25.40 |
70.64 |
8.70 |
0.30 |
50 |
B |
TL |
16 |
| 17 |
94.5 |
86.4 |
B |
1610 |
12.70 |
41.28 |
25.40 |
70.64 |
8.70 |
0.40 |
50 |
B |
TL |
17 |
| 18 |
99.6 |
91.4 |
B |
1610 |
12.70 |
41.28 |
25.40 |
70.64 |
8.70 |
0.40 |
50 |
B |
TL |
18 |
| 19 |
104.7 |
96.5 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
8.70 |
0.60 |
50 |
B |
TL |
19 |
| 20 |
109.7 |
101.6 |
B |
1610 |
12.70 |
41.28 |
25.40 |
82.55 |
8.70 |
0.70 |
50 |
B |
TL |
20 |
| 21 |
114.8 |
106.4 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
8.70 |
0.70 |
50 |
B |
TL |
21 |
| 22 |
119.9 |
111.5 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
8.70 |
0.70 |
50 |
B |
TL |
22 |
| 23 |
125.0 |
116.6 |
B |
2012 |
19.05 |
50.80 |
31.75 |
90.49 |
8.70 |
0.90 |
50 |
B |
TL |
23 |
| 24 |
130.1 |
121.7 |
B |
2012 |
19.05 |
50.80 |
31.75 |
90.49 |
8.70 |
1.00 |
50 |
B |
TL |
24 |
| 25 |
135.1 |
126.8 |
B |
2012 |
19.05 |
50.80 |
31.75 |
90.49 |
8.70 |
1.10 |
50 |
B |
TL |
25 |
| 26 |
140.2 |
131.6 |
B |
2012 |
19.05 |
50.80 |
31.75 |
90.49 |
8.70 |
1.10 |
50 |
B |
TL |
26 |
| 27 |
145.3 |
136.7 |
B |
2012 |
19.05 |
50.80 |
31.75 |
90.49 |
8.70 |
1.20 |
50 |
B |
TL |
27 |
| 28 |
150.4 |
141.7 |
B |
2012 |
19.05 |
50.80 |
31.75 |
90.49 |
8.70 |
1.30 |
50 |
B |
TL |
28 |
| 30 |
160.5 |
151.9 |
B |
2012 |
19.05 |
50.80 |
31.75 |
90.49 |
8.70 |
1.50 |
50 |
B |
TL |
30 |
| 32 |
170.7 |
162.1 |
B |
2012 |
19.05 |
50.80 |
31.75 |
90.49 |
8.70 |
1.60 |
50 |
B |
TL |
32 |
| 35 |
185.9 |
177.0 |
B |
2012 |
19.05 |
50.80 |
31.75 |
90.49 |
8.70 |
1.90 |
50 |
B |
TL |
35 |
| 36 |
191.0 |
182.1 |
B |
2012 |
19.05 |
50.80 |
31.75 |
90.49 |
8.70 |
2.00 |
50 |
B |
TL |
36 |
| 40 |
211.3 |
202.4 |
B |
2012 |
19.05 |
50.80 |
31.75 |
90.49 |
8.70 |
2.40 |
50 |
B |
TL |
40 |
| 42 |
221.2 |
212.3 |
B |
2012 |
19.05 |
50.80 |
31.75 |
90.49 |
8.70 |
2.70 |
50 |
B |
TL |
42 |
| 45 |
236.5 |
227.6 |
B |
2012 |
19.05 |
50.80 |
31.75 |
90.49 |
8.70 |
3.00 |
50 |
B |
TL |
45 |
| 48 |
251.7 |
242.8 |
B |
2012 |
19.05 |
50.80 |
31.75 |
90.49 |
8.70 |
3.30 |
50 |
B |
TL |
48 |
| 54 |
282.2 |
273.1 |
B |
2012 |
19.05 |
50.80 |
31.75 |
90.49 |
8.70 |
4.10 |
50 |
B |
TL |
54 |
| 60 |
312.4 |
303.3 |
B |
2012 |
19.05 |
50.80 |
31.75 |
90.49 |
8.70 |
4.90 |
50 |
B |
TL |
60 |
| 70 |
363.0 |
353.8 |
B |
2517 |
19.05 |
63.50 |
44.45 |
82.55 |
8.70 |
6.40 |
50 |
B |
TL |
70 |
| 72 |
373.1 |
364.0 |
B |
2517 |
19.05 |
63.50 |
44.45 |
82.55 |
8.70 |
7.00 |
50 |
B |
TL |
72 |
| 80 |
413.5 |
404.4 |
B |
2517 |
19.05 |
63.50 |
44.45 |
82.55 |
8.70 |
8.90 |
50 |
B |
TL |
80 |
| 84 |
433.8 |
424.4 |
B |
2517 |
19.05 |
63.50 |
44.45 |
82.55 |
8.70 |
10.20 |
50 |
B |
TL |
84 |
| 96 |
494.5 |
485.1 |
B |
2517 |
19.05 |
63.50 |
44.45 |
82.55 |
8.70 |
13.20 |
50 |
B |
TL |
96 |
| 112 |
575.3 |
566.2 |
B |
2517 |
19.05 |
63.50 |
44.45 |
82.55 |
8.70 |
17.60 |
50 |
B |
TL |
112 |
|
|
