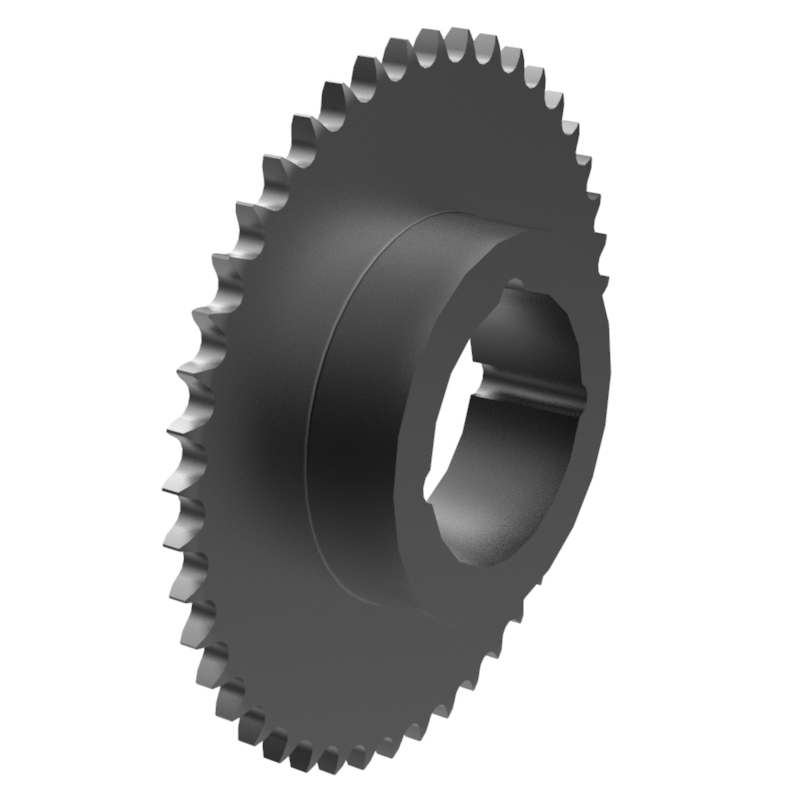

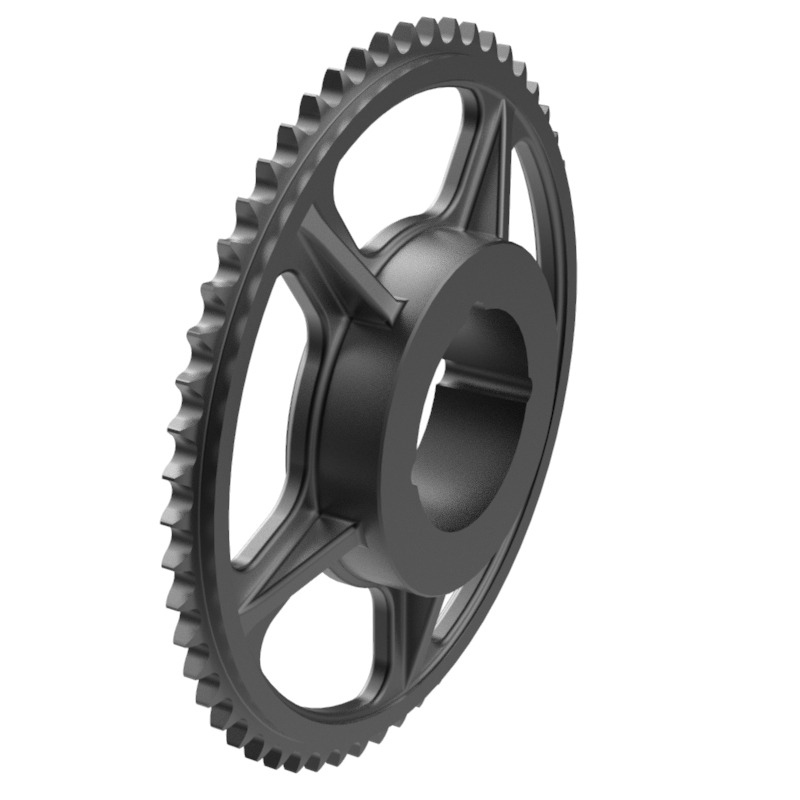

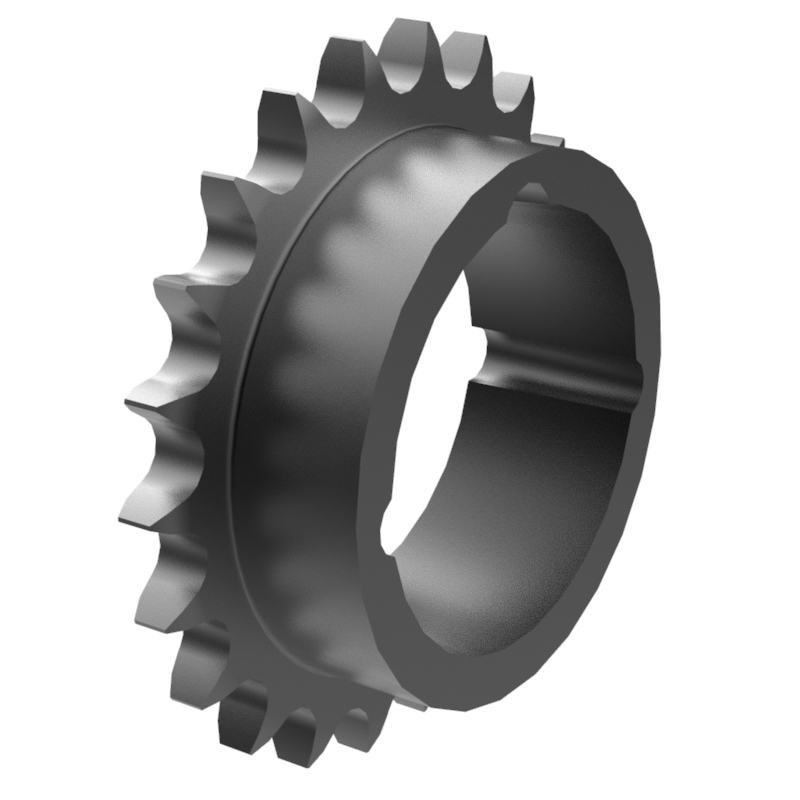

Pignoni per bussole coniche
Taper bored sprockets
Kettenräder für Taper-Spannbuchsen
Pignons à moyeu amovible
Piñones para casquillos cónicos
DIN 8188 - ISO/R 606 - ANSI B 29,1
ANSI 41-1 · 12,70 mm (1/2") pitch TL
| Z |
Outside
Dia |
Pitch
Dia |
Type |
Bushing
No. |
Bore |
Hub |
Plate
thickness |
kg/pc |
Catalog
No. |
| OD |
PD |
Min. |
Max. |
L |
H |
t1 |
| -- |
mm |
mm |
-- |
-- |
mm |
mm |
mm |
mm |
mm |
kg |
-- |
| 14 |
63.3 |
57.2 |
B |
1008 |
9.53 |
25.40 |
22.23 |
47.63 |
5.77 |
0.20 |
41 |
TL |
B |
14 |
| 15 |
67.3 |
61.0 |
B |
1008 |
9.53 |
25.40 |
22.23 |
47.63 |
5.77 |
0.20 |
41 |
TL |
B |
15 |
| 16 |
71.4 |
63.5 |
B |
1008 |
9.53 |
25.40 |
22.23 |
50.80 |
5.77 |
0.30 |
41 |
TL |
B |
16 |
| 17 |
75.4 |
69.1 |
B |
1210 |
15.88 |
31.75 |
25.40 |
60.33 |
5.77 |
0.30 |
41 |
TL |
B |
17 |
| 18 |
79.8 |
73.2 |
B |
1210 |
15.88 |
31.75 |
25.40 |
85.73 |
5.77 |
0.40 |
41 |
TL |
B |
18 |
| 19 |
83.8 |
77.2 |
B |
1210 |
15.88 |
31.75 |
25.40 |
63.50 |
5.77 |
0.50 |
41 |
TL |
B |
19 |
| 20 |
87.9 |
81.3 |
B |
1610 |
12.70 |
41.28 |
25.40 |
73.03 |
5.77 |
0.50 |
41 |
TL |
B |
20 |
| 21 |
92.0 |
85.3 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
5.77 |
0.50 |
41 |
TL |
B |
21 |
| 22 |
96.0 |
89.2 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
5.77 |
0.60 |
41 |
TL |
B |
22 |
| 23 |
100.1 |
93.2 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
5.77 |
0.60 |
41 |
TL |
B |
23 |
| 24 |
104.1 |
97.3 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
5.77 |
0.60 |
41 |
TL |
B |
24 |
| 25 |
108.2 |
101.4 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
5.77 |
0.70 |
41 |
TL |
B |
25 |
| 26 |
112.3 |
105.4 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
5.77 |
0.70 |
41 |
TL |
B |
26 |
| 28 |
120.4 |
113.5 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
5.77 |
0.80 |
41 |
TL |
B |
28 |
| 30 |
128.5 |
121.4 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
5.77 |
0.80 |
41 |
TL |
B |
30 |
| 32 |
136.7 |
129.5 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
5.77 |
0.90 |
41 |
TL |
B |
32 |
| 35 |
148.8 |
141.7 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
5.77 |
1.00 |
41 |
TL |
B |
35 |
| 36 |
152.9 |
145.8 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
5.77 |
1.10 |
41 |
TL |
B |
36 |
| 40 |
168.9 |
161.8 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
5.77 |
1.20 |
41 |
TL |
B |
40 |
| 45 |
189.2 |
182.1 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
5.77 |
1.60 |
41 |
TL |
B |
45 |
| 48 |
201.4 |
194.1 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
5.77 |
1.90 |
41 |
TL |
B |
48 |
| 54 |
225.6 |
218.4 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
5.77 |
2.20 |
41 |
TL |
B |
54 |
| 60 |
249.9 |
242.6 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
5.77 |
2.60 |
41 |
TL |
B |
60 |
| 70 |
290.3 |
283.0 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
5.77 |
3.40 |
41 |
TL |
B |
70 |
| 72 |
298.5 |
291.1 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
5.77 |
3.70 |
41 |
TL |
B |
72 |
| 80 |
331.0 |
323.6 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
5.77 |
4.40 |
41 |
TL |
B |
80 |
| 96 |
395.5 |
388.1 |
B |
1610 |
12.70 |
41.28 |
25.40 |
76.20 |
5.77 |
5.90 |
41 |
TL |
B |
96 |
|
|
