Plate wheels for simplex, duplex and triplex chain to: DIN 8188 - ISO/R 606 - ANSI B 29,1
Discos para cadena simple, doble y triple de rodillos segun: DIN 8188 - ISO/R 606 - ANSI B 29,1
Corone per catene semplici, doppie e triple a rulli secondo: DIN 8188 - ISO/R 606 - ANSI B 29,1
Kettenradscheiben mit einseitiger Nabe für Simplex- Duplex- Triplex-Rollenkette nach: DIN 8188 - ISO/R 606 - ANSI B 29,1
Disques avec moyeu déporté pour chaînes simples, doubles et triples à rouleaux suivant les normes: DIN 8188 - ISO/R 606 - ANSI B 29,1

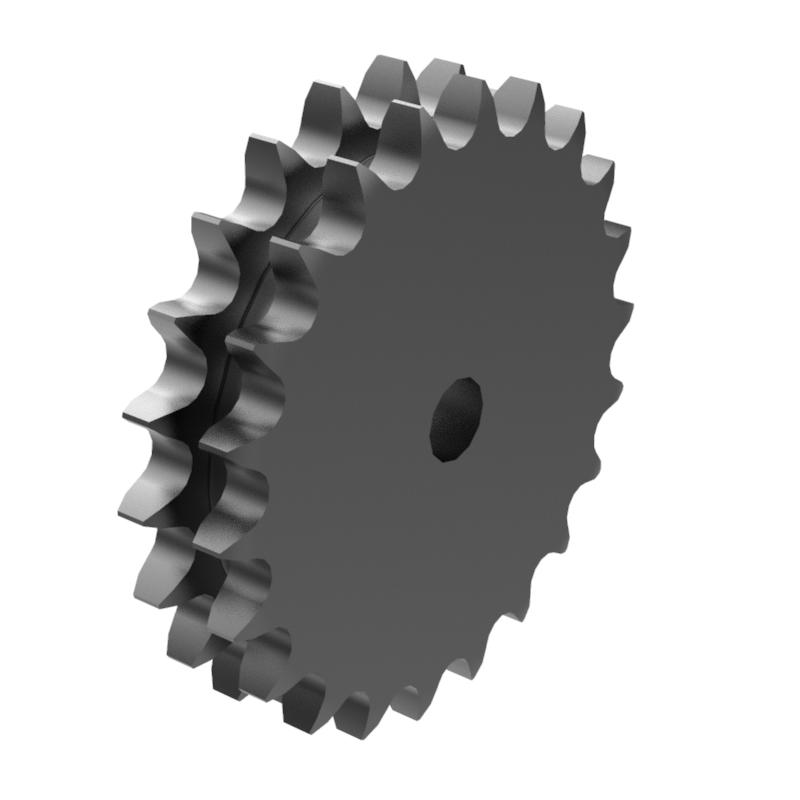

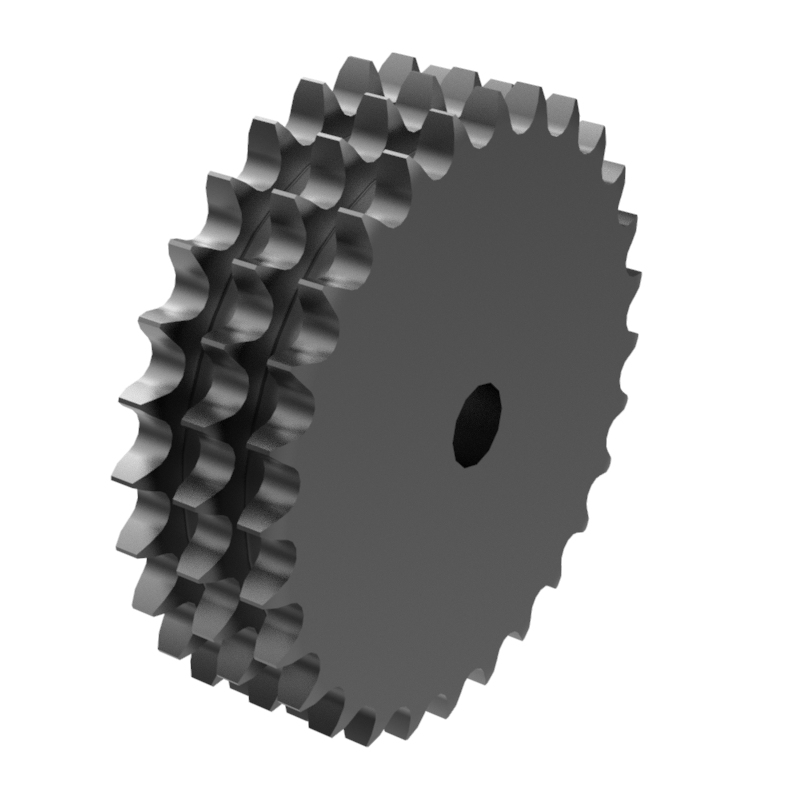

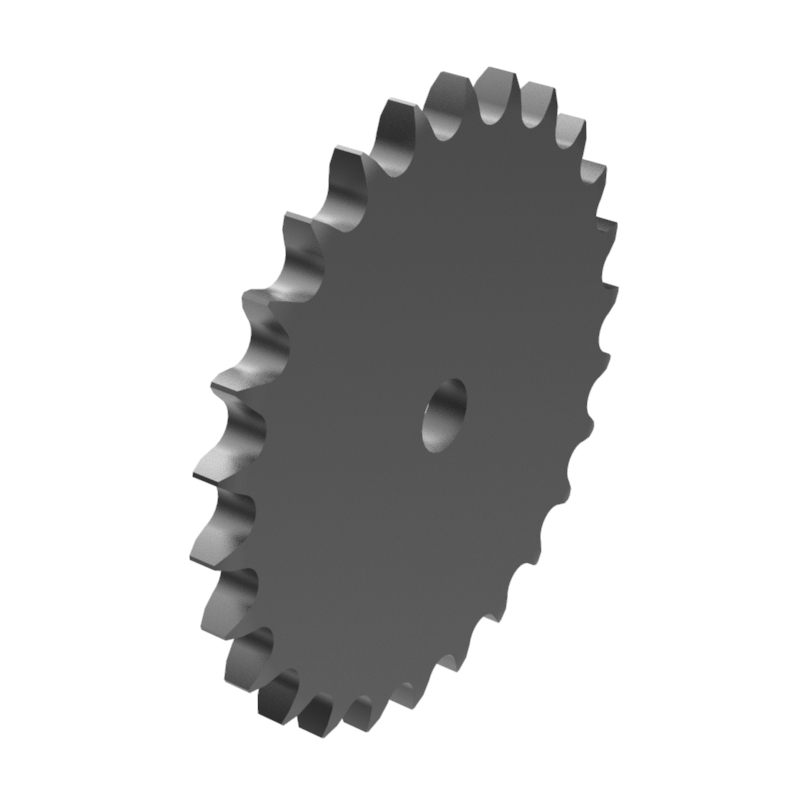

ANSI 200 · 63,50 mm (2.1/2") pitch
| Sprocket Data |
Inch |
Metric |
| B1: |
1.389 |
35.28 |
| b1: |
1.344 |
34.14 |
| B2: |
4.161 |
105.69 |
| b1: |
1.344 |
34.14 |
| B3: |
6.978 |
177.24 |
|
| Teeth |
Outer Dia de |
Simplex |
Duplex |
Triplex |
| Inch bore |
Metric bore |
Inch bore |
Metric bore |
Inch bore |
Metric bore |
| Inch |
Metric |
D1 |
D1 |
D1 |
D1 |
D1 |
D1 |
| 10 |
9.2 |
233.68 |
1 1/2 |
|
|
|
|
|
| 11 |
10.02 |
254.508 |
1 1/2 |
|
|
|
|
|
| 12 |
10.83 |
275.082 |
1 1/2 |
|
|
|
|
|
| 13 |
11.64 |
295.656 |
1 1/2 |
|
|
|
|
|
| 14 |
12.46 |
316.484 |
1 1/2 |
|
|
|
|
|
| 15 |
13.26 |
336.804 |
1 1/2 |
|
|
|
|
|
| 16 |
14.07 |
357.378 |
1 1/2 |
|
|
|
|
|
| 17 |
14.87 |
377.698 |
1 1/2 |
|
|
|
|
|
| 18 |
15.68 |
398.272 |
1 1/2 |
|
|
|
|
|
| 19 |
16.48 |
418.592 |
1 1/2 |
|
|
|
|
|
| 20 |
17.29 |
439.166 |
1 1/2 |
|
|
|
|
|
| 21 |
18.09 |
459.486 |
1 1/2 |
|
|
|
|
|
| 25 |
20.49 |
520.446 |
1 1/2 |
|
|
|
|
|
| 30 |
25.29 |
642.366 |
1 1/2 |
|
|
|
|
|
| 35 |
29.28 |
743.712 |
1 1/2 |
|
|
|
|
|
| 40 |
33.27 |
845.058 |
1 1/2 |
|
|
|
|
|
| 45 |
37.25 |
946.15 |
1 1/2 |
|
|
|
|
|
| 54 |
44.42 |
1128.268 |
1 1/2 |
|
|
|
|
|
| 60 |
49.2 |
1249.68 |
1 1/2 |
|
|
|
|
|
|
