ANSI 160 · 50,80 mm (2") pitch

Description

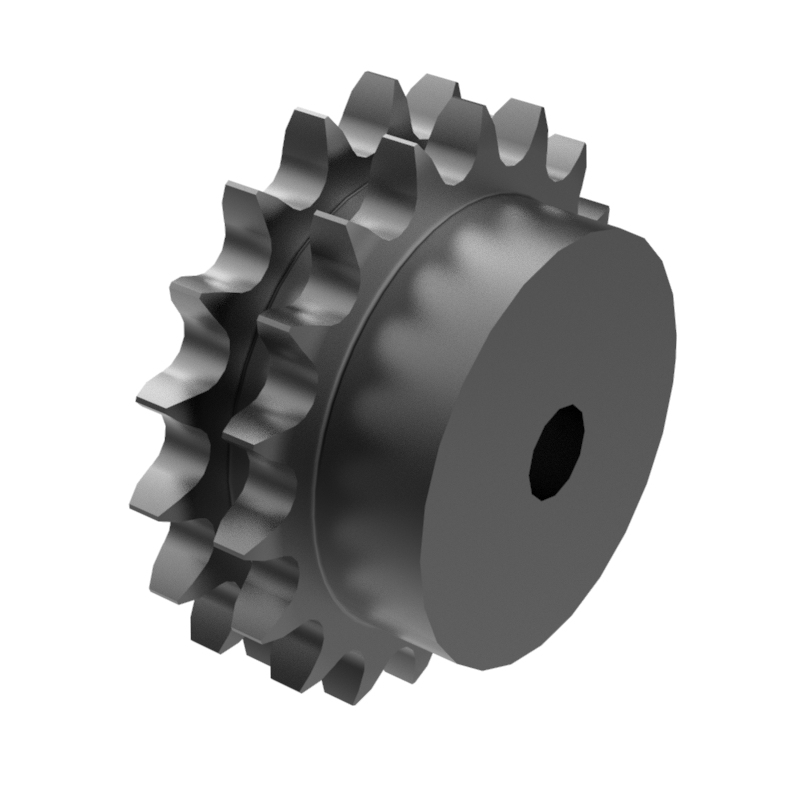

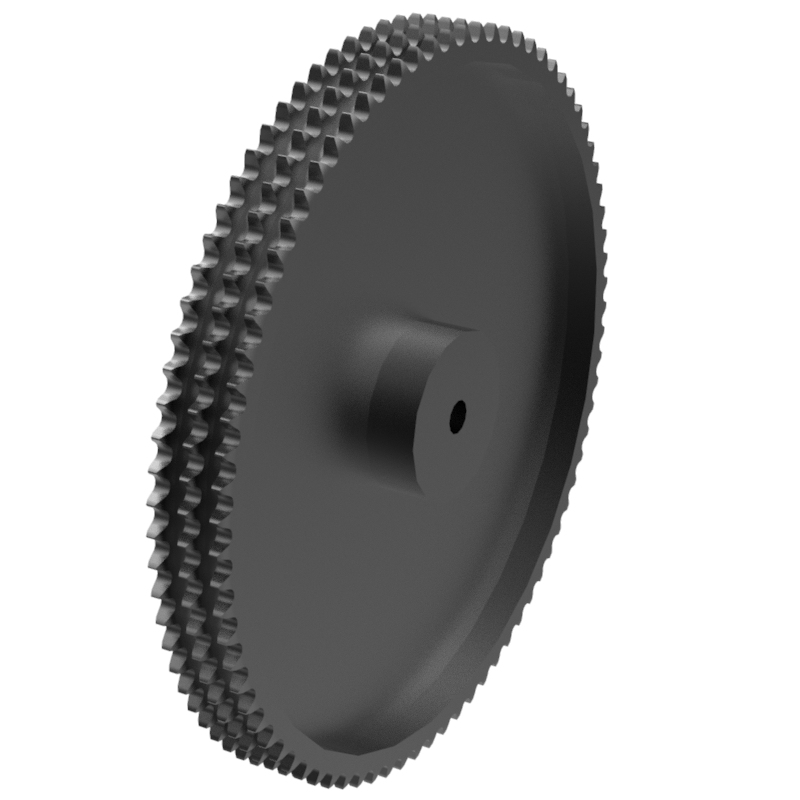

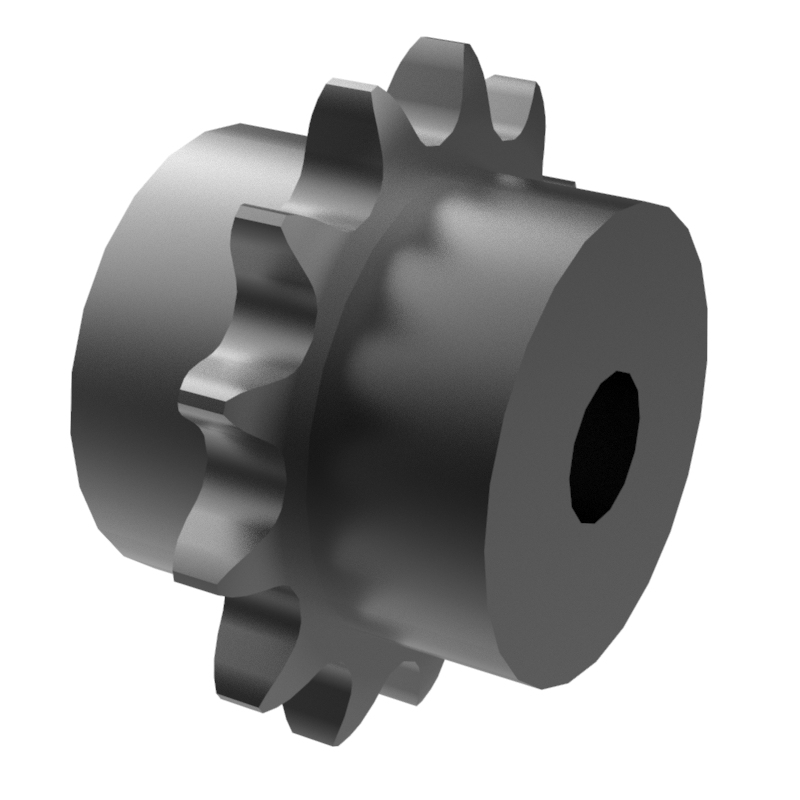

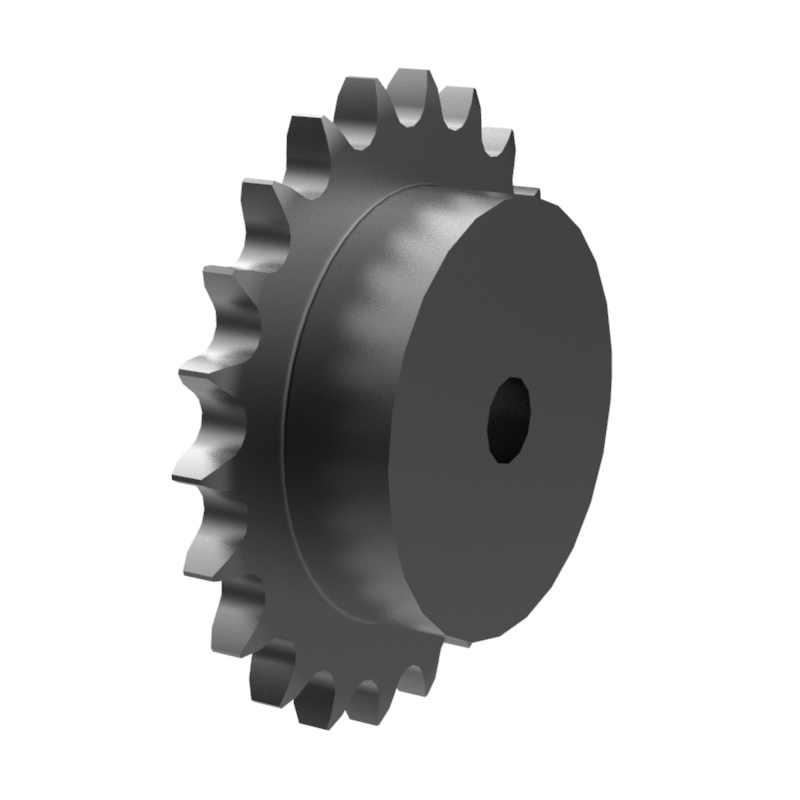

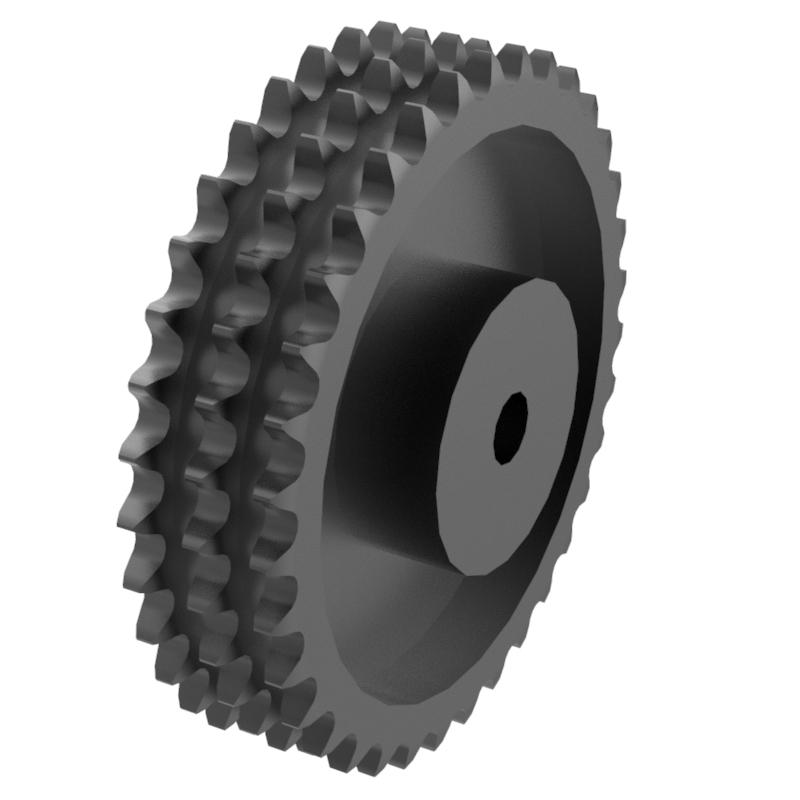

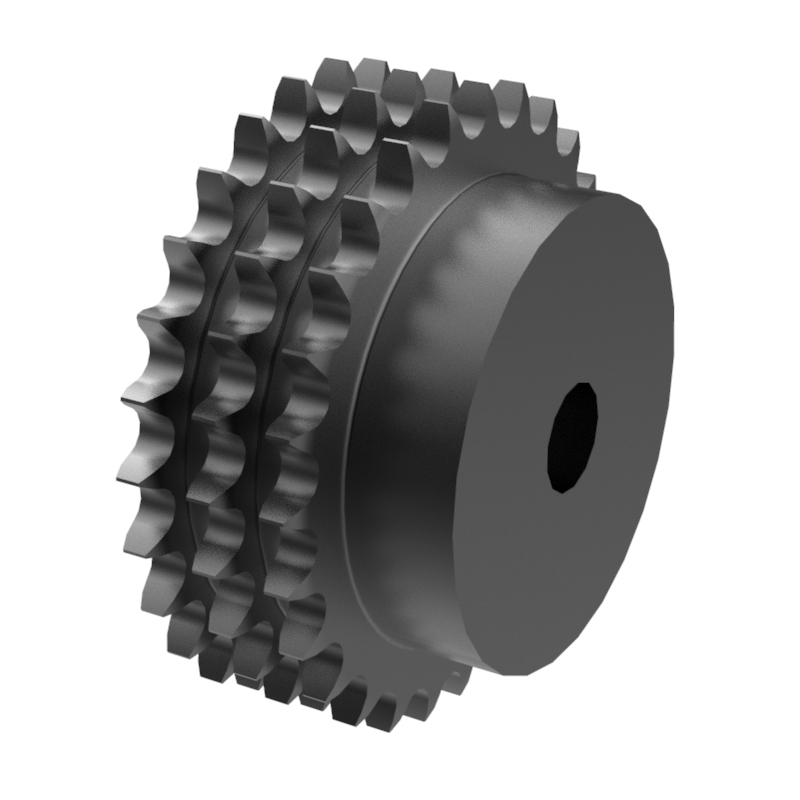

Sprockets for simplex, duplex and triplex chain to: DIN 8188 - ISO/R 606 - ANSI B 29,1
Piñones para cadena simple, doble y triple de rodillos segun las normas: DIN 8188 - ISO/R 606 - ANSI B 29,1
Pignons avec moyeu déporté pour chaînes simples, doubles, et triples à rouleaux suivant les normes: DIN 8188 - ISO/R 606 - ANSI B 29,1
Pignoni per catene semplici, doppie e triple a rulli secondo: DIN 8188 - ISO/R 606 - ANSI B 29,1
Kettenräder mit einseitiger Nabe für Simplex-Duplex- Triplex-Rollenkette nach: DIN 8188 - ISO/R 606 - ANSI B 29,1

ANSI 160 · 50,80 mm (2") pitch

Sprocket Data	Inch	Metric
B1:	1.156	29.36
b1:	1.119	28.42
B2:	3.424	86.97
b1:	1.119	28.42
B3:	5.729	145.52

Teeth	Outer Dia de		Simplex							Duplex							Triplex
	Outer Dia de		Inch bore and Hub			Metric bore and Hub			Type	Inch bore and Hub			Metric bore and Hub			Type	Inch bore and Hub			Metric bore and Hub			Type
	Inch	Metric	dm	D1	A	dm	D1	A	Type	dm	D1	A	dm	D1	A	Type	dm	D1	A	dm	D1	A	Type
8	6.03	153.16	3.1/4	1.1/2	2.1/4	85	30	80	B	-	-	-				-				85	30	180
9	6.70	170.18	3.5/8	1.1/2	2.1/4	100	30	80	B	-	-	-	100	30	120	-				100	30	180
10	7.36	186.94	4.1/8	1.1/2	2.1/4	115	30	80	B	-	-	-	115	30	120	-				115	30	180
11	8.01	203.45	4.3/4	1.1/2	2.1/2	125	30	80	B	-	-	-	125	35	120	-				125	35	180
12	8.66	219.96	5.1/2	1.1/2	2.1/2	133	30	80	B	-	-	-	133	35	120	-				133	35	180
13	9.31	236.47	6	1.1/2	2.3/4	145	30	80	B	6	2	4.3/4	145	35	120	B				145	35	180
14	9.96	252.98	6.1/2	1.1/2	2.3/4	145	30	80	B	6.3/4	2	4.3/4	145	35	120	B				145	35	180
15	10.61	269.49	7	1.1/2	2.3/4	145	30	80	B	7	2	4.3/4	160	35	120	B				160	35	180
16	11.26	286.00	7	1.1/2	2.3/4	160	30	90	B	7	2	4.3/4	160	40	120	B				160	40	180
17	11.90	302.26	7	1.1/2	2.3/4	160	30	90	B	7	2	4.3/4	180	40	120	B				200	40	180
18	12.54	318.52	7	1.1/2	2.3/4	160	30	90	B	7	2	4.3/4	180	40	120	B				200	40	180
19	13.19	335.03	7	1.1/2	2.3/4	160	30	90	B	7	2	4.3/4	200	40	120	B				200	40	180
20	13.83	351.28	7	1.1/2	2.3/4	180	40	90	B	7	2	4.3/4	200	40	120	B				200	40	180
21	14.47	367.54	7	1.1/2	2.3/4	180	40	90	B	7.1/2	2	4.3/4	200	40	120	B				200	40	180
22	15.11	383.79	7	1.1/2	2.3/4	*180	40	90	B	7.1/2	2	4.3/4	*200	40	120	B
23	15.75	400.05	7	1.1/2	2.3/4	*180	40	90	B	7.1/2	2	4.3/4	*200	40	120	B				*200	40	180
24	16.39	416.31	7	1.1/2	3	*180	40	90	B	7.1/2	2	4.3/4	*200	40	120	B
25	17.03	432.56	7	1.1/2	3	*180	40	90	B	7.1/2	2	4.3/4	*200	40	120	B				*200	40	180
26	17.67	448.82	7	1.1/2	3	*180	40	90	B	7.1/2	2	4.3/4	*200	40	120	B
27	18.31	465.07	7	1.1/2	3	*180	40	90	B	-	-	-				-
28	18.95	481.33	7	1.1/2	3	*180	40	90	B	-	-	-	*200	40	120	-
30	20.23	513.84	7	1.1/2	3	*180	40	90	B	-	-	-	*200	40	120	-
35	23.42	594.87	8	1.1/2	4.1/2	*200	40	90	C	9.1/2	1.1/2	6.5/8				C				*200	40	180
40	26.61	675.89	8	1.1/2	4.1/2	*200	40	90	C	-	-	-				-
45	29.80	756.92	8	1.1/2	5	*218	40	123	C	10	1.1/2	7.1/8	*220	40	148	C				*220	40	207
54	35.54	902.72	8	1.1/2	5	*218	40	123	C	-	-	-				-
60	39.36	999.74	8	1.1/2	5	*218	40	123	C	10	1.1/2	7.1/8				C
70	45.73	1161.54	8	1.1/2	5	*218	40	123	C	-	-	-				-				*238	40	216
80	52.10	1323.34	8	1.1/2	6	*218	40	123	C	-	-	-				-
