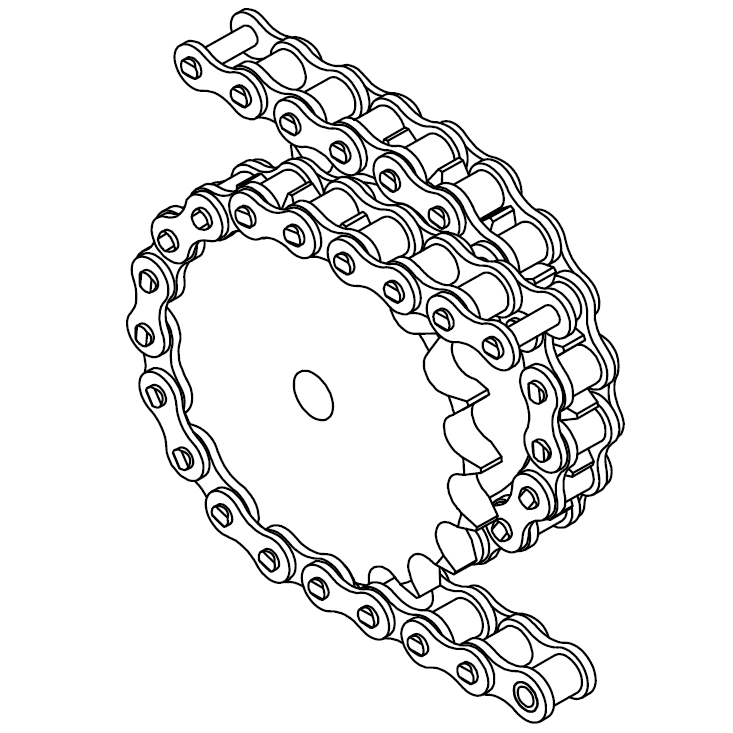

Corone doppie per due catene semplici
Duplex plate wheels for two single chains
Zweifach-Scheiben für zwei Einfach-Ketten
Disques doubles pour deux chaines simples
Discos dobles para dos cadenas simples
ANSI 120-1 · 38,10 mm (1 1/2") pitch DS
| Z |
Outside
Dia |
Pitch
Dia |
Type |
Bore |
|
Plate
thickness |
kg/pc |
Catalog
No. |
| OD |
PD |
Min. |
Max. |
L |
C |
E |
t1 |
| -- |
mm |
mm |
-- |
mm |
mm |
mm |
mm |
mm |
mm |
kg |
-- |
| 15 |
202.2 |
183.1 |
A |
36.51 |
95.25 |
84.93 |
61.91 |
139.70 |
23.50 |
13.60 |
120 |
DS |
15 |
| 16 |
214.4 |
195.3 |
A |
36.51 |
101.60 |
84.93 |
61.91 |
152.40 |
23.50 |
15.40 |
120 |
DS |
16 |
| 17 |
226.6 |
207.3 |
A |
36.51 |
112.71 |
84.93 |
61.91 |
164.70 |
23.50 |
16.80 |
120 |
DS |
17 |
| 18 |
239.0 |
219.5 |
A |
36.51 |
131.76 |
84.93 |
61.91 |
164.70 |
23.50 |
19.10 |
120 |
DS |
18 |
| 19 |
251.2 |
231.4 |
A |
36.51 |
139.70 |
84.93 |
61.91 |
189.31 |
23.50 |
21.30 |
120 |
DS |
19 |
| 20 |
263.4 |
243.6 |
A |
36.51 |
150.81 |
84.93 |
61.91 |
201.61 |
23.50 |
23.10 |
120 |
DS |
20 |
|
|
