Corone doppie per due catene semplici
Duplex plate wheels for two single chains
Zweifach-Scheiben für zwei Einfach-Ketten
Disques doubles pour deux chaines simples
Discos dobles para dos cadenas simples

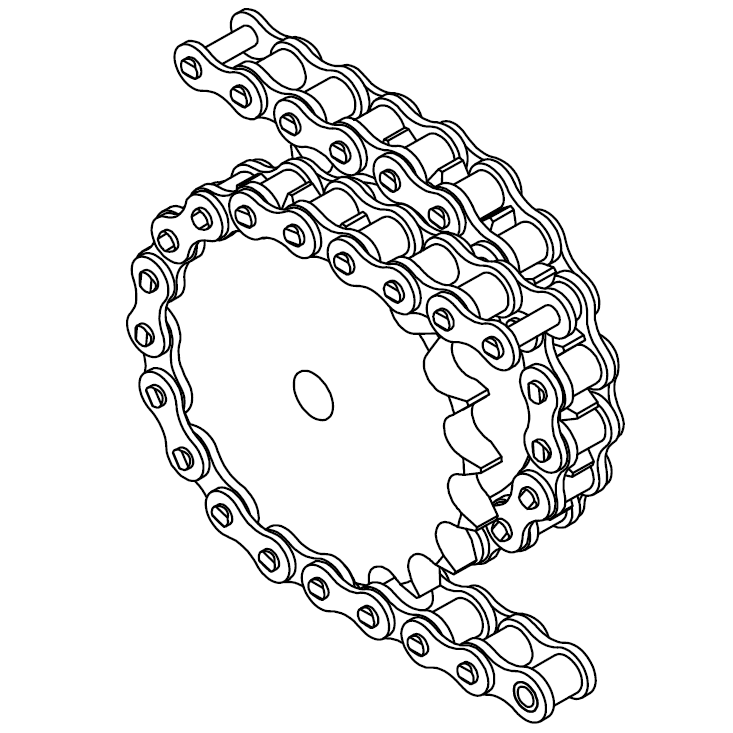

ANSI 100-1 · 31,75 mm (11/4") pitch DS
| Z |
Outside
Dia |
Pitch
Dia |
Type |
Bore |
|
Plate
thickness |
kg/pc |
Catalog
No. |
| OD |
PD |
Min. |
Max. |
L |
C |
E |
t1 |
| -- |
mm |
mm |
-- |
mm |
mm |
mm |
mm |
mm |
mm |
kg |
-- |
| 13 |
147.8 |
132.6 |
A |
25.40 |
63.50 |
68.26 |
50.80 |
96.04 |
17.60 |
5.10 |
100 |
DS |
13 |
| 14 |
158.2 |
142.8 |
A |
31.75 |
69.85 |
68.26 |
50.80 |
106.36 |
17.60 |
6.10 |
100 |
DS |
14 |
| 15 |
168.4 |
152.7 |
A |
31.75 |
77.79 |
68.26 |
50.80 |
116.68 |
17.60 |
7.60 |
100 |
DS |
15 |
| 16 |
178.6 |
162.8 |
A |
31.75 |
82.55 |
68.26 |
50.80 |
127.00 |
17.60 |
8.80 |
100 |
DS |
16 |
| 17 |
189.0 |
172.7 |
A |
31.75 |
92.08 |
68.26 |
50.80 |
137.32 |
17.60 |
9.80 |
100 |
DS |
17 |
| 18 |
199.1 |
182.9 |
A |
31.75 |
95.25 |
68.26 |
50.80 |
147.24 |
17.60 |
10.40 |
100 |
DS |
18 |
| 19 |
209.3 |
192.8 |
A |
31.75 |
106.36 |
68.26 |
50.80 |
157.56 |
17.60 |
11.30 |
100 |
DS |
19 |
| 20 |
219.5 |
203.0 |
A |
31.75 |
106.36 |
68.26 |
50.80 |
167.88 |
17.60 |
12.00 |
100 |
DS |
20 |
| 21 |
229.6 |
213.1 |
A |
31.75 |
133.35 |
68.26 |
50.80 |
177.80 |
17.60 |
13.20 |
100 |
DS |
21 |
|
|
