Pignoni per bussole coniche
Taper bored sprockets
Kettenräder für Taper-Spannbuchsen
Pignons à moyeu amovible
Piñones para casquillos cónicos
DIN 8188 - ISO/R 606 - ANSI B 29,1

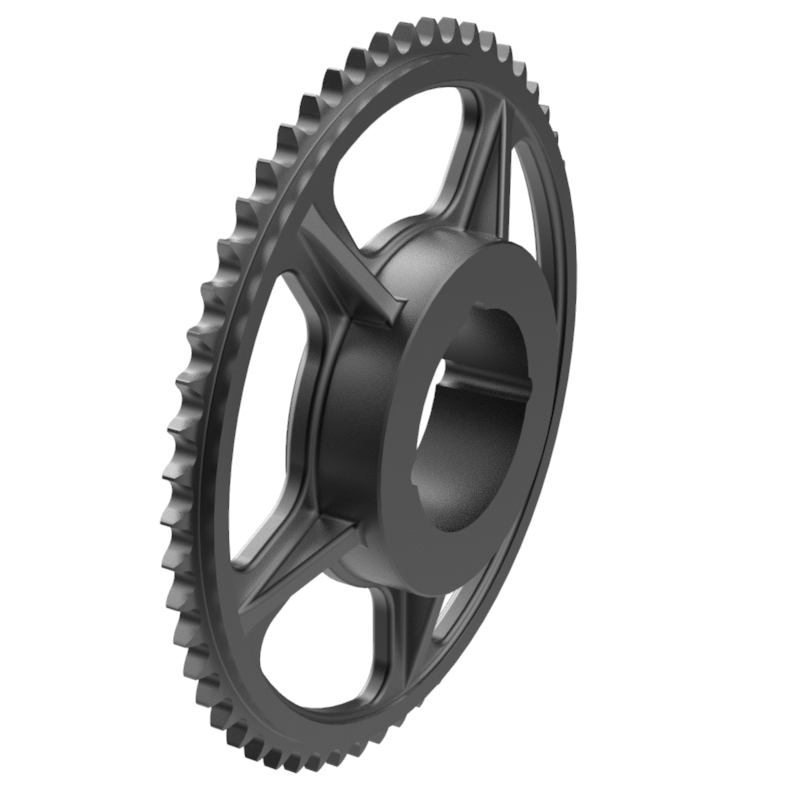

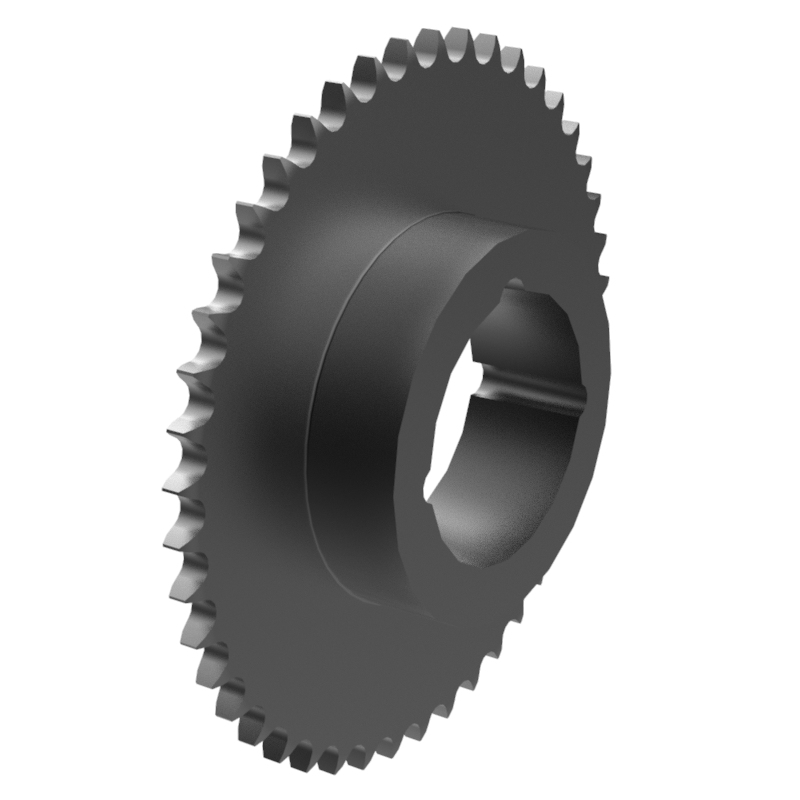

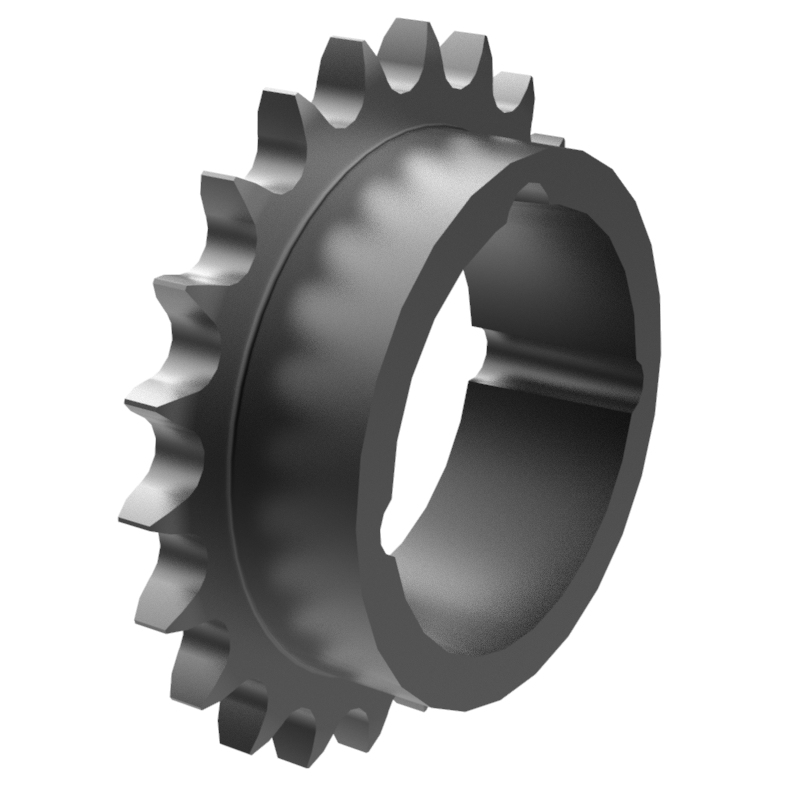

ANSI 100-1 · 31,75 mm (1 1/4") pitch TL
| Z |
Outside
Dia |
Pitch
Dia |
Type |
Bushing
No. |
Bore |
Hub |
Plate
thickness |
kg/pc |
Catalog
No. |
| OD |
PD |
Min. |
Max. |
L |
H |
t1 |
| -- |
mm |
mm |
-- |
-- |
mm |
mm |
mm |
mm |
mm |
kg |
-- |
| 11 |
127.3 |
112.8 |
B |
1615 |
12.70 |
41.28 |
38.10 |
76.20 |
17.60 |
1.20 |
100 |
B |
TL |
11 |
| 12 |
137.7 |
122.7 |
B |
1615 |
12.70 |
41.28 |
38.10 |
82.55 |
17.60 |
1.60 |
100 |
B |
TL |
12 |
| 13 |
147.8 |
132.6 |
B |
2012 |
19.05 |
50.80 |
31.75 |
90.49 |
17.60 |
1.60 |
100 |
B |
TL |
13 |
| 14 |
158.2 |
142.8 |
B |
2012 |
19.05 |
50.80 |
31.75 |
90.49 |
17.60 |
1.80 |
100 |
B |
TL |
14 |
| 15 |
168.4 |
152.7 |
B |
2517 |
19.05 |
63.50 |
44.45 |
107.95 |
17.60 |
2.30 |
100 |
B |
TL |
15 |
| 16 |
178.6 |
162.8 |
B |
2517 |
19.05 |
63.50 |
44.45 |
114.30 |
17.60 |
2.90 |
100 |
B |
TL |
16 |
| 17 |
189.0 |
172.7 |
B |
2517 |
19.05 |
63.50 |
44.45 |
114.30 |
17.60 |
3.20 |
100 |
B |
TL |
17 |
| 18 |
199.1 |
182.9 |
B |
2517 |
19.05 |
63.50 |
44.45 |
114.30 |
17.60 |
3.50 |
100 |
B |
TL |
18 |
| 19 |
209.3 |
192.8 |
B |
2517 |
19.05 |
63.50 |
44.45 |
114.30 |
17.60 |
4.00 |
100 |
B |
TL |
19 |
| 20 |
219.5 |
203.0 |
B |
2517 |
19.05 |
63.50 |
44.45 |
114.30 |
17.60 |
4.40 |
100 |
B |
TL |
20 |
| 21 |
229.6 |
213.1 |
B |
2517 |
19.05 |
63.50 |
44.45 |
114.30 |
17.60 |
4.80 |
100 |
B |
TL |
21 |
| 22 |
239.8 |
223.0 |
B |
2517 |
19.05 |
63.50 |
44.45 |
114.30 |
17.60 |
5.00 |
100 |
B |
TL |
22 |
| 24 |
260.1 |
243.3 |
B |
2517 |
19.05 |
63.50 |
44.45 |
114.30 |
17.60 |
5.90 |
100 |
B |
TL |
24 |
| 26 |
280.4 |
263.4 |
B |
2517 |
19.05 |
63.50 |
44.45 |
114.30 |
17.60 |
6.80 |
100 |
B |
TL |
26 |
| 28 |
300.7 |
283.5 |
B |
3020 |
31.75 |
76.20 |
50.80 |
133.35 |
17.60 |
7.50 |
100 |
B |
TL |
28 |
| 30 |
321.1 |
303.8 |
B |
3020 |
31.75 |
76.20 |
50.80 |
133.35 |
17.60 |
10.00 |
100 |
B |
TL |
30 |
| 32 |
341.4 |
323.9 |
B |
3020 |
31.75 |
76.20 |
50.80 |
133.35 |
17.60 |
10.40 |
100 |
B |
TL |
32 |
| 35 |
371.9 |
354.3 |
B |
3020 |
31.75 |
76.20 |
50.80 |
133.35 |
17.60 |
12.70 |
100 |
B |
TL |
35 |
| 36 |
382.0 |
364.2 |
B |
3020 |
31.75 |
76.20 |
50.80 |
133.35 |
17.60 |
14.10 |
100 |
B |
TL |
36 |
| 40 |
422.4 |
404.6 |
B |
3020 |
31.75 |
76.20 |
50.80 |
133.35 |
17.60 |
16.80 |
100 |
B |
TL |
40 |
| 45 |
473.2 |
455.2 |
B |
3020 |
31.75 |
76.20 |
50.80 |
133.35 |
17.60 |
20.90 |
100 |
B |
TL |
45 |
| 48 |
503.4 |
485.4 |
B |
3020 |
31.75 |
76.20 |
50.80 |
133.35 |
17.60 |
24.00 |
100 |
B |
TL |
48 |
| 54 |
564.1 |
546.1 |
B |
3020 |
31.75 |
76.20 |
50.80 |
133.35 |
17.60 |
28.10 |
100 |
B |
TL |
54 |
| 60 |
624.8 |
606.6 |
B |
3020 |
31.75 |
76.20 |
50.80 |
133.35 |
17.60 |
32.70 |
100 |
B |
TL |
60 |
|
|
