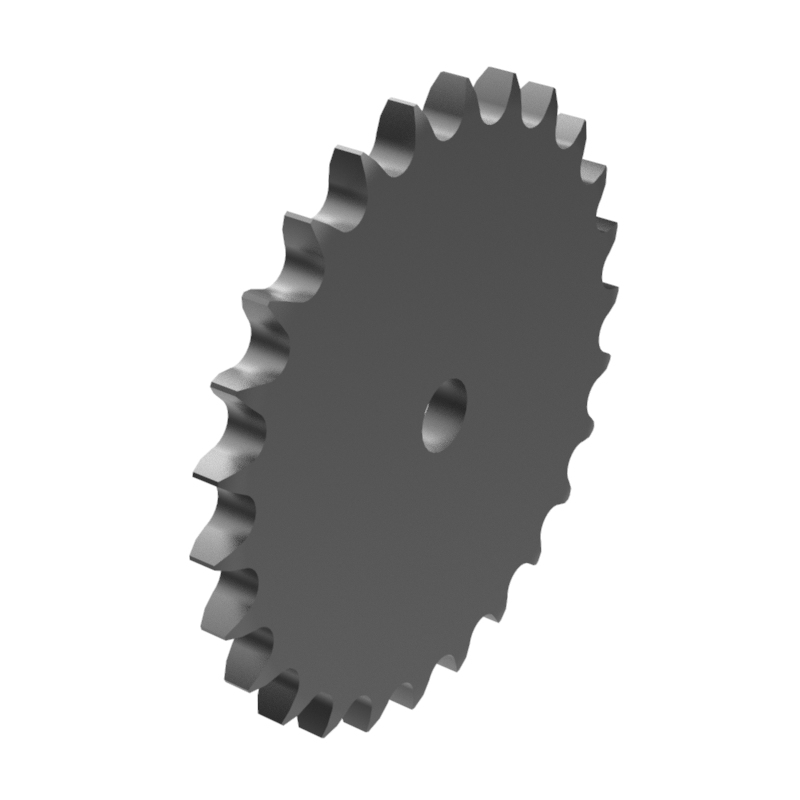

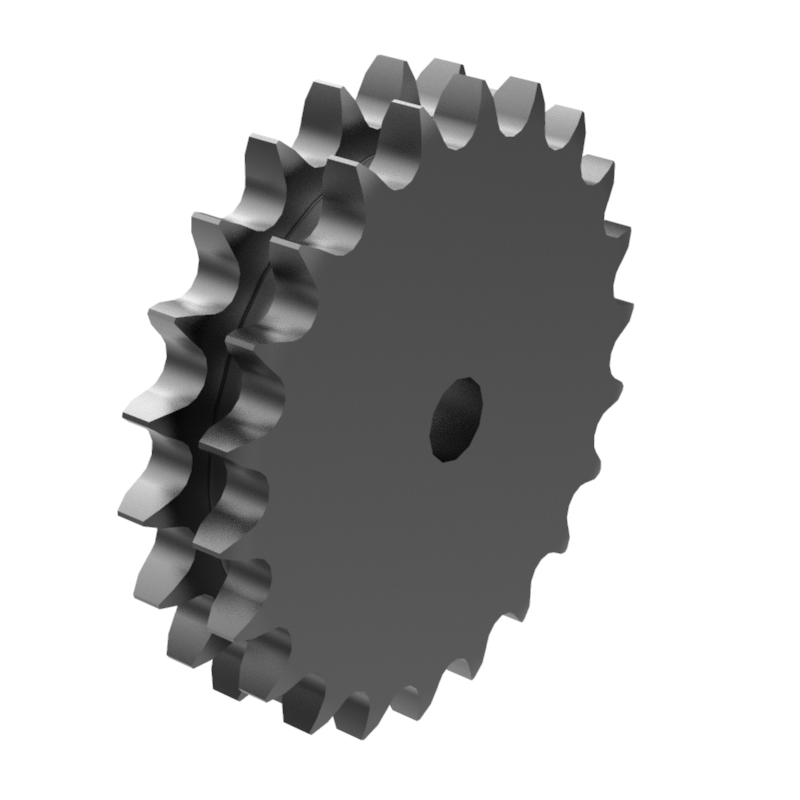

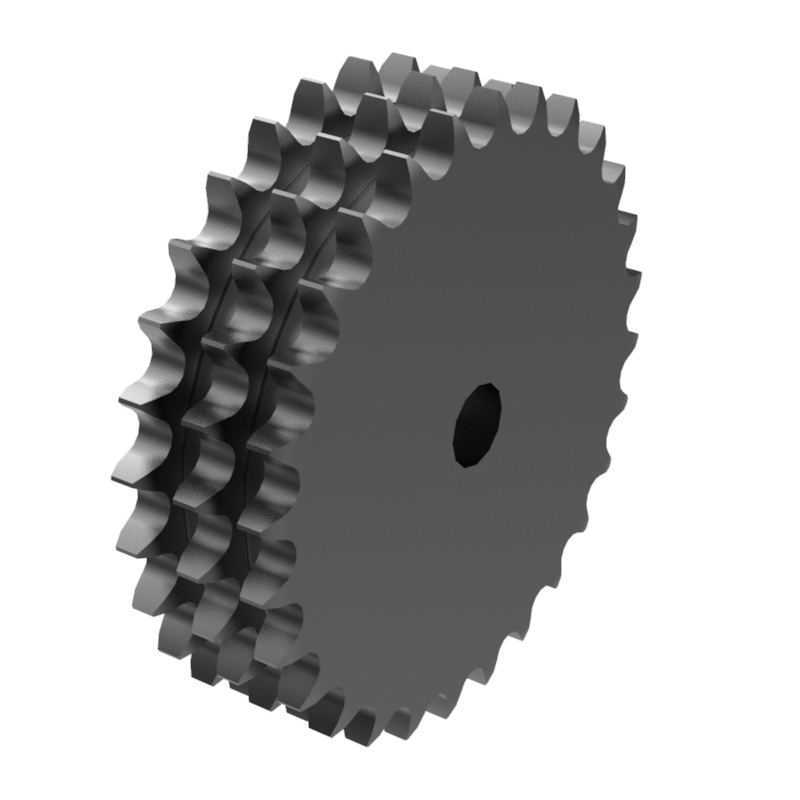

Plate wheels for simplex, duplex and triplex chain to: DIN 8188 - ISO/R 606 - ANSI B 29,1
Discos para cadena simple, doble y triple de rodillos segun: DIN 8188 - ISO/R 606 - ANSI B 29,1
Corone per catene semplici, doppie e triple a rulli secondo: DIN 8188 - ISO/R 606 - ANSI B 29,1
Kettenradscheiben mit einseitiger Nabe für Simplex- Duplex- Triplex-Rollenkette nach: DIN 8188 - ISO/R 606 - ANSI B 29,1
Disques avec moyeu déporté pour chaînes simples, doubles et triples à rouleaux suivant les normes: DIN 8188 - ISO/R 606 - ANSI B 29,1
| Sprocket Data |
Inch |
Metric |
| B1: |
0.692 |
17.60 |
| b1: |
0.669 |
17.00 |
| B2: |
2.077 |
52.80 |
| b1: |
0.669 |
17.00 |
| B3: |
3.484 |
88.52 |
|
| Teeth |
Outer Dia de |
Simplex |
Duplex |
Triplex |
| Inch bore |
Metric bore |
Inch bore |
Metric bore |
Inch bore |
Metric bore |
| Inch |
Metric |
D1 |
D1 |
D1 |
D1 |
D1 |
D1 |
| 8 |
3.77 |
95.76 |
1 |
20 |
- |
20 |
- |
25 |
| 9 |
4.18 |
106.17 |
1 |
20 |
1 |
20 |
- |
25 |
| 10 |
4.60 |
116.84 |
1 |
20 |
1 |
20 |
- |
25 |
| 11 |
5.01 |
127.25 |
1 |
20 |
1 |
25 |
1 |
30 |
| 12 |
5.42 |
137.67 |
1 |
20 |
1.1/8 |
25 |
1.1/8 |
30 |
| 13 |
5.82 |
147.83 |
1 |
20 |
1.1/8 |
25 |
1.1/8 |
30 |
| 14 |
6.23 |
158.24 |
1.1/4 |
20 |
1.1/8 |
25 |
1.1/8 |
30 |
| 15 |
6.63 |
168.40 |
1.1/4 |
20 |
1.1/4 |
25 |
1.1/4 |
30 |
| 16 |
7.03 |
178.56 |
1.5/16 |
25 |
1.1/4 |
30 |
1.1/4 |
30 |
| 17 |
7.44 |
188.98 |
1.5/16 |
25 |
1.1/4 |
30 |
1.1/4 |
30 |
| 18 |
7.84 |
199.14 |
1.5/16 |
25 |
1.1/4 |
30 |
1.1/4 |
30 |
| 19 |
8.24 |
209.30 |
1.5/16 |
25 |
1.1/4 |
30 |
1.1/4 |
30 |
| 20 |
8.64 |
219.46 |
1.5/16 |
25 |
1.1/4 |
30 |
1.1/4 |
30 |
| 21 |
9.04 |
229.62 |
1.5/16 |
25 |
1.1/4 |
30 |
1.1/4 |
30 |
| 22 |
9.44 |
239.78 |
1.5/16 |
25 |
1.1/4 |
30 |
1.1/4 |
30 |
| 23 |
9.84 |
249.94 |
1.1/4 |
25 |
1.1/4 |
30 |
1.1/4 |
30 |
| 24 |
10.25 |
260.35 |
1.1/4 |
25 |
1.1/4 |
30 |
1.1/4 |
30 |
| 25 |
10.65 |
270.51 |
1.1/4 |
25 |
1.1/4 |
30 |
1.1/4 |
30 |
| 26 |
11.05 |
280.67 |
1.1/4 |
30 |
1.1/2 |
30 |
1.1/2 |
30 |
| 27 |
11.44 |
290.58 |
1.1/4 |
30 |
- |
30 |
- |
30 |
| 28 |
11.84 |
300.74 |
1.1/4 |
30 |
- |
30 |
- |
30 |
| 29 |
12.24 |
310.90 |
1.1/4 |
30 |
- |
30 |
- |
|
| 30 |
12.64 |
321.06 |
1.1/4 |
30 |
1.1/2 |
30 |
1.1/2 |
30 |
| 32 |
13.44 |
341.38 |
1.1/4 |
30 |
- |
30 |
- |
30 |
| 35 |
14.64 |
371.86 |
1.1/4 |
30 |
1.1/2 |
30 |
1.1/2 |
|
| 36 |
15.04 |
382.02 |
1.1/4 |
30 |
- |
30 |
- |
|
| 38 |
15.84 |
402.34 |
1.1/4 |
30 |
- |
30 |
- |
|
| 39 |
16.23 |
412.24 |
1.1/4 |
30 |
- |
30 |
- |
|
| 40 |
16.63 |
422.40 |
1.1/4 |
30 |
- |
30 |
- |
|
| 42 |
17.43 |
442.72 |
1.1/4 |
30 |
- |
30 |
- |
|
| 45 |
18.63 |
473.20 |
1.1/2 |
30 |
1.1/2 |
30 |
1.1/2 |
40 |
| 48 |
19.82 |
503.43 |
1.1/2 |
30 |
- |
30 |
- |
|
| 54 |
22.21 |
564.13 |
1.1/2 |
30 |
- |
30 |
- |
40 |
| 60 |
24.60 |
624.84 |
1.1/2 |
30 |
1.1/2 |
30 |
1.1/2 |
|
| 70 |
28.58 |
725.93 |
1.1/2 |
30 |
1.1/2 |
30 |
1.1/2 |
|
| 72 |
29.38 |
746.25 |
1.1/2 |
30 |
- |
30 |
- |
|
| 76 |
30.97 |
786.64 |
1.1/2 |
30 |
- |
30 |
- |
40 |
| 80 |
32.57 |
827.28 |
1.1/2 |
30 |
1.1/2 |
|
1.1/2 |
|
| 84 |
34.16 |
867.66 |
1.1/2 |
30 |
- |
|
- |
|
| 90 |
36.55 |
928.37 |
1.1/2 |
30 |
- |
|
- |
|
| 96 |
38.93 |
988.82 |
1.1/2 |
30 |
- |
40 |
- |
|
|
